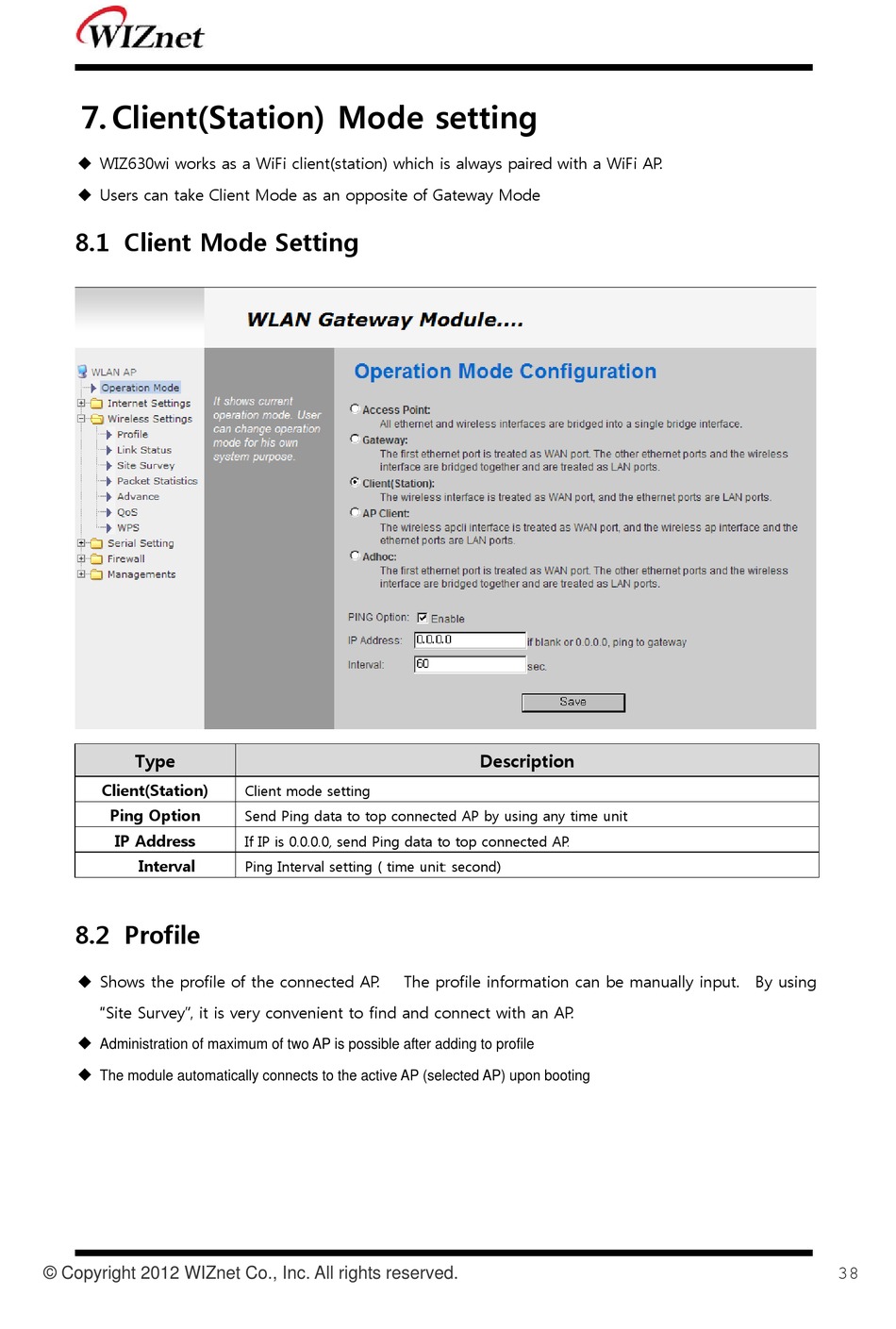

7. Client(Station) Mode setting
 WIZ630wi works as a WiFi client(station) which is always paired with a WiFi AP.
 Users can take Client Mode as an opposite of Gateway Mode

8.1 Client Mode Setting

Type
Client(Station)
Ping Option
IP Address
Interval
8.2 Profile
 Shows the profile of the connected AP.
"Site Survey", it is very convenient to find and connect with an AP.

Administration of maximum of two AP is possible after adding to profile

The module automatically connects to the active AP (selected AP) upon booting
© Copyright 2012 WIZnet Co., Inc. All rights reserved.
Client mode setting
Send Ping data to top connected AP by using any time unit
If IP is 0.0.0.0, send Ping data to top connected AP.
Ping Interval setting ( time unit: second)
The profile information can be manually input. By using
Description
