WizFi630S User Manual
(Version 0.0.1)
© 2019 WIZnet Co., Ltd. All Rights Reserved.
For more information, please visit our website at http://www.wiznet.co.kr ,TELL: +82-31-8023-5678
1
© Copyright 2019 WIZnet Co., Ltd. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WizFi630S and is the answer not in the manual?

Questions and answers

Related Manuals for Wiznet WizFi630S

Summary of Contents for Wiznet WizFi630S

  • Page 1 WizFi630S User Manual (Version 0.0.1) © 2019 WIZnet Co., Ltd. All Rights Reserved. For more information, please visit our website at http://www.wiznet.co.kr ,TELL: +82-31-8023-5678 © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
  • Page 2 Document Revision History Date Revision Changes 2019-05-22 Release 2019-05-29 Update © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 3: Table Of Contents

    Firewall ......................32 2.5. Serial ......................34 2.5.1. Serial to LAN(Wired and Wireless) ............. 34 Hardware information ................37 3.1. WizFi630S Pin Map ..................37 3.2. Mechanism design ..................39 STATEMENT ................... 40 © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 4: Product Introduction

    WizFi630S is 802.11b / g / n standard for wireless interface. at the rate of 150 Mbps to support.

  • Page 5: The Main Function

     Built-in 3 Ethernet Ports  2 Serial Ports supports  Working as Wi-Fi Router  WEP 64/128bit, WPA/WPA2-PSK TKIP, AES  Router and Firewall function supports Figure 1. Example of WizFi630S’s Application © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 6: The Characteristics Of Wireless

    Korea/China: 13(1 ~ 13) 1) Product should not collocate with other radio. 2) Host label should content modular FCC ID : 2AKKWWIZFI630S) type of antenna:External Dipole Antenna,Internal Antenna,Rod Antenna. antenna gain tolerance :1~3.2dBi © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 7: Hardware Characteristics

    UART1: none UART2: none Input Power DC 3.3V / 1A Power Consumption Max : 605.4mA (3.3V) (Device boot up) Dimension 33mm X 43mm X 3.8mm Weight Table 2. WizFi630S Module Specifications © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
  • Page 8 Station & AP Association Information Management SSH(Secure Shell) Support Web based Configuration / Serial Command Configuration Upgrade through WEB UI Serial To Wi-Fi 2 Serial Port supports Table 3. SW Specifications © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

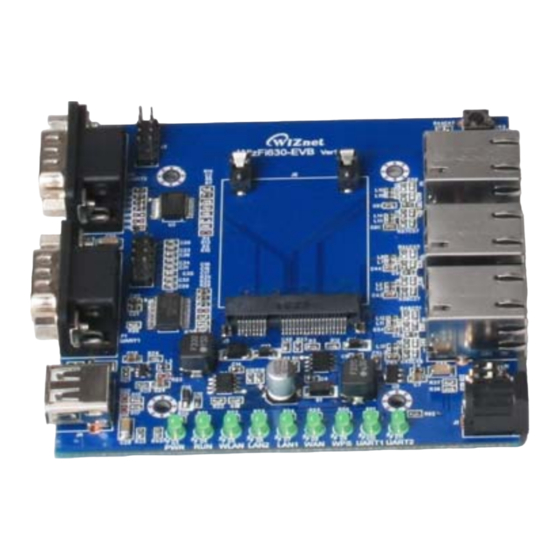

  • Page 9: Evb

    1.5. 1.5.1. Contents Section Qnt. Contents WizFi630S WizFi630S WizFi630S-EVB WizFi630S- 2dBi WI-FI Antenna (Model : W5I-B0-08) Antenna 1 ea Serial Cable Serial Cable 1 ea LAN Cable 1 ea LAN Cable © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
  • Page 10 DC 5V/2A Adapter Table 4. WizFi630S-EVB Contents © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 11: Block Diagram

    Block diagram 1.6. Figure 1. WizFi630S Block Diagram © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 12: Access Point Mode

    The wired interface and a wireless interface with a bridge thee. wired / wireless interface is the same ip address field of the network with. DHCP Server function is disable. WizFi630S is the ip address assigned to you. WizFi630S is regularly Station Broadcast Packet transmission, and to maintain the connection.

  • Page 13: Gateway Mode

    Internet sharing mode of action. WAN interface (network business, the network) and the lan interface (the private network: 192.168.16. xxx), wireless interface (the private network: 192.168.16. xxx) division, # WAN port 0 is designated as a port. WizFi630S is regularly Station Broadcast Packet transmission, and to maintain the connection.

  • Page 14: The Client (Station)

    AP to automatically link. through the lan port connected to the private ip address of the equipment. the top of the AP (Gateway) regularly, PING Packet transmission in wireless AP disconnect to prevent. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 15: Ap-Client

    The wireless interface to the wireless interface WAN port, and all of them Ethernet lan port to port packet. Station model and similar, the biggest difference is the wireless interface is AP and Client (Station function at the same time. WizFi630S is regularly Station Broadcast Packet transmission, and to maintain the connection.

  • Page 16: Status

    2.2 Status 2.2.1Overview  System state information, the system of network information, the lan port of the link status scale. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 17: Routes

    2.2.2 Routes  WizFi630S is in use in the network interface that is able to. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 18: System Log

    2.2.3System Log  System log function, the action of WizFi630S content can be confirmed. 2.2.4 Kernel Log  Kernel log function, the action of WizFi630S content can be confirmed. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 19: Processes

    2.2.5 Processes  the action of the processes 　 and state values of the control and status display. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 20: System

    2.3 System 2.3.1 System Management © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 21: Administration

    Administration 2.3.2  WizFi630S management page. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 22: Software

    Software 2.3.3  WizFi630S software package to manage. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 23: Startup

    Startup 2.3.4 © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 24: Firmware

    Firmware 2.3.5  Boot firmware and more to upgrade.. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 25: Network

    Network 2.4.1 Interface  Network Interface for Scanning WizFi630S  Select "scan" network service mode and set WizFi630S to connect to the network. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
  • Page 26 2.4.1.1  WizFi630S internal ip settings, DHCP server configuration and DHCP configuration. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
  • Page 27 A set of wireless 2.4.1.2 (WiFi) 2.4.1.2  wireless lan's basic attribute set. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 28: Wireless

    Wireless 2.4.2  AP model, Gateway model, AP - Client model in wireless advanced settings.  wireless advanced settings advanced wireless network users with the configuration. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
  • Page 29  Client(Station) Mode © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 30: Dhcp And Dns

    DHCP and DNS 2.4.3  DHCP and dns server settings can be. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 31: Firewall

    Firewall 2.4.4 Default 2.4.4.1  Firewall the function can be set. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
  • Page 32 The primary port. 2.4.4.2 The external network users WizFi630S internal network connection to use, the application port number of the internal network ip address and the port number to connect function is necessary, but this function primary port. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 33: Serial

     Serial to Wireless (Ethernet) function in order to use the serial Parameters set.  Each serial two channel (Main connection, Aux connection) set. For each serial port 2 channel (Main connection, Aux connection) configuration management.  © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
  • Page 34 Serial to Ethernet 2.5.1 Main Connection 2.5.1.1 © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
  • Page 35 Aux Connection 2.5.1.2 © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
  • Page 36 Packing Condition (Incoming serial data packing condition) 2.5.1.3 © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
  • Page 37 Lan communication come from the data sent to the serial port, and serial data by the change in the Main, AUX lan communication can not be divided. this option is enabled, the device connected to the lan communication serial port information can give you. © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 38: Hardware Information

    LINK0_LED GPIO#43 LAN port 0 Link LED LINK4_LED GPIO#39 LAN port 4 Link LED LINK3_LED GPIO#40 LAN port 3 Link LED I/O, IPD LINK2 GPIO#41 WPS Button Push I, IPU CPURST_N © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
  • Page 39 I/O, IPD LINK1 GPIO#42 WPS LED(GPIO20) I2S_DO GPIO#1 GPIO I/O, IPD I2C_SCLK GPIO#4 General Purpose Input Switch SW1-2 I/O, IPD I2C_SD GPIO#5 RUN LED 3.3V 3.3V Table 1. WizFi630S Pin Map © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 40: Mechanism Design

    3.2 mechanism design Hole HOLE HOLE Length Width Height Width Height Φ Thickness Dimensions (mm) 24.2 Tolerance +/- 0.2mm © Copyright 2019 WIZnet Co., Ltd. All rights reserved.

  • Page 41: Statement

    This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body © Copyright 2019 WIZnet Co., Ltd. All rights reserved.
