WizFi360
Firmware Update Guide
Version 1.2.4
WIZnet Co.,Ltd
Copyright© 2019
Copyright 2019 WIZnet Co., Ltd. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WizFi360 and is the answer not in the manual?

Questions and answers

Related Manuals for Wiznet WizFi360

Summary of Contents for Wiznet WizFi360

  • Page 1 WizFi360 Firmware Update Guide Version 1.2.4 WIZnet Co.,Ltd Copyright© 2019 Copyright 2019 WIZnet Co., Ltd. All rights reserved.

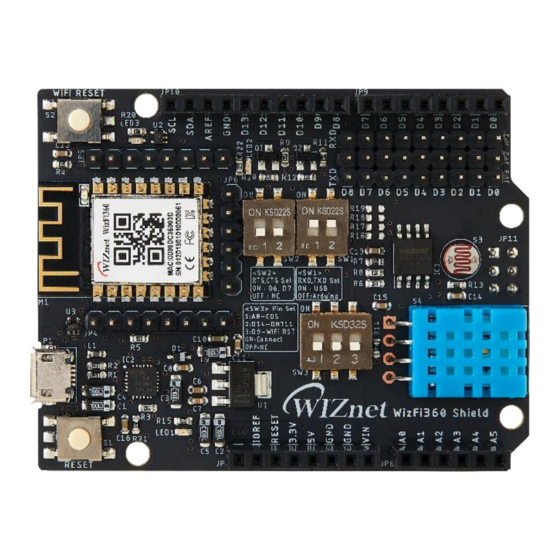

  • Page 2 Added explanation about firmware updates using the cloud 1.2.0 2019.08.09 Modified explanation about Using upgrade tool 1.2.1 2019.08.30 Modified explanation about UART 1.2.2 2019.09.02 Added explanation about UART1 1.2.3 2019.10.01 Modified typing error and github link 1.2.4 2019.10.16 Modified to WizFi360-EVB-Shield from WizFi360-EVB WizFi360 Firmware Update Guide...

  • Page 3: Table Of Contents

    Using the Upgrade Tool (Serial/Wi-Fi) ....................10 1.3.1 Required hardware and software ....................10 1.3.2 How to download the firmware using the Upgrade Tool (Serial) ..........10 1.3.3 How to download the firmware using the Upgrade Tool (Wi-Fi) ..........13 WizFi360 Firmware Update Guide...

  • Page 4: The Method Of Firmware Update

    1. Update Firmware by communicating with Tera Term through Serial. Use UART0 or UART1 for serial communication. In case of UART1 use USB cable and in case of UART0 use TTL to USB module. UART1 UART0 RXD0 TXD0 WizFi360 Firmware Update Guide...
  • Page 5 2. Run the Tera Term, go to ‘File - New connection’ menu, select ‘Serial’, and choose the port to which WizFi360 is connected. 3. Set Speed to 115200bps in ‘Setup - Serial port’. WizFi360 Firmware Update Guide...
  • Page 6 4. While holding down the ESC key on the keyboard, press the reset button on the WizFi360 to enter the Boot mode. When boot mode is entered, the below screen is displayed. 5. Go to 'File - Transfer - XMODEM - Send' menu, select the binary file and click OK button to proceed the firmware update.
  • Page 7 6. When the firmware update is completed, 'ready' is displayed on the terminal. WizFi360 Firmware Update Guide...

  • Page 8: Using The Cloud (Wi-Fi)

    Router as shown below. The router must be connected to the Internet, and the WizFi360 and WizFi360 and PC are assigned an IP by DHCP Server of router. To use AT Command, serial communication is used UART0 or UART1. In case of UART1 use USB cable and in case of UART0 use TTL to USB module.
  • Page 9 UART1 UART0 RXD0 TXD0 2. Use the AT command to upgrade the firmware like below. WizFi360 Firmware Update Guide...

  • Page 10: Using The Upgrade Tool (Serial/Wi-Fi)

    1. Update Firmware by communicating with Upgrade tool through Serial. Use UART0 or UART1 for serial communication. In case of UART1 use USB cable and in case of UART0 use TTL to USB module. UART1 UART0 RXD0 TXD0 WizFi360 Firmware Update Guide...
  • Page 11 2. Open the WizFi Upgrade Tool and Open the Serial port of WizFi360. 3. Click the folder icon to select the WizFi360 Firmware binary file. (WizFi360_SDK.img) WizFi360 Firmware Update Guide...
  • Page 12 4. Click the Start Upgrade button (arrow icon) and check the "Please Press reset button message." 5. Firmware upload is progressed and uploaded firmware size is displayed. WizFi360 Firmware Update Guide...

  • Page 13: How To Download The Firmware Using The Upgrade Tool (Wi-Fi)

    To use AT Command, serial communication is used UART0 or UART1. In case of UART1 use USB cable and in case of UART0 use TTL to USB module. Connect and LAN or Wi-Fi Automatically assigns temporary IP address to PC by DHCP server. UART1 UART0 RXD0 TXD0 WizFi360 Firmware Update Guide...
  • Page 14 2. Click the WiFi option of the Upgrade Tool. 3. Click IP list and select IP of PC. 4. In Select FW, click the folder icon to select the WizFi360 Firmware binary file. (WizFi360_SDK.img) WizFi360 Firmware Update Guide...
  • Page 15 5. When WizFi360's Firmware Upgrade is ready, the following message will be displayed. 6. Use the AT command to upgrade the firmware. WizFi360 Firmware Update Guide...
  • Page 16 WizFi360 Firmware Update Guide...
