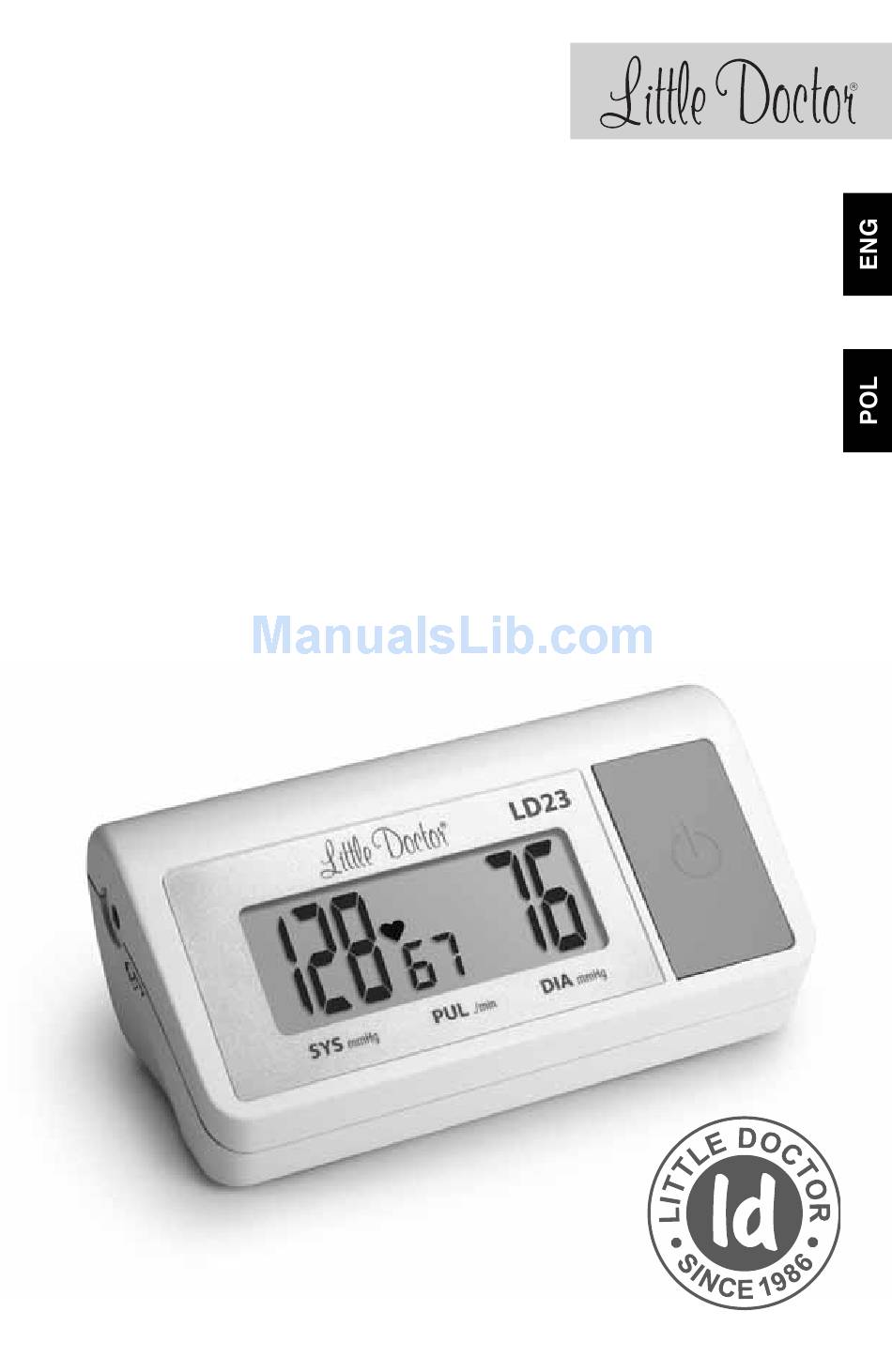

- Page 1 LD23, LD23A, LD23L Digital Blood Pressure Monitor Instruction Manual Ciśnieniomierz elektroniczny automatyczny LD do pomiaru ciśnienia tętniczego krwi i pulsu Instrukcja Obsługi...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PARTS AND COMPONENTS ..........3 GENERAL INFORMATION . -
Page 3: Parts And Components
PARTS AND COMPONENTS 1. Electronic Unit. 2. LCD. 3. Arm cuff jack. 4. Air plug. 5. Air tube. 6. Arm cuff . 7. Power source Jack. 8. Electrical power supply LD-N057 (it is attached to modifi cation LD23A and LD23L). (Power ON/OFF). -
Page 4: General Information
(for LD23, LD23A). WARNING! This Device may be used only with cuff s: - Cuff -LDA, size 25-36 cm (delivered in a set with the LD23 and LD23A) - Cuff -LDA2, size 32-43 cm (delivered in a set with the LD23L). -
Page 5: Recommendations On Correct Measurements
RECOMMENDATIONS ON CORRECT MEASUREMENTS 1. For correct measurement you should know that THE BLOOD PRESSURE IS SUBJECT TO SHARP VARIATIONS EVEN WITHIN THE SHORT TIME INTERVALS. The blood pressure depends on many factors. It is usually lower in summer and higher in winter. -
Page 6: Power Supply
3. At such disorders as deep vascular sclerosis, weak pulse wave and also in patients with the prominent distortions of cardiac rhythm it may be diffi cult to measure the blood pressure accurately. IN SUCH CASES CONSULT A CERTIFIED DOCTOR ABOUT APPLICATION OF THE ELECTRONIC DEVICE. -
Page 7: Use Of The Device With The Power Source
The batteries supplied with the Device are intended for check of the Device performance at sale and their service life may be shorter than of the recommended batteries • Replace all four batteries at the same time. Do not use the waste batteries. •... -
Page 8: Cuff Preparation
CUFF PREPARATION 1.Insert the cuff end for about 5 cm into a metal ring as shown in the fi gure. Fig.6 2. Apply the cuff to your left upper arm so that the air tube is directed to your palm. If the measurement on your left arm is diffi... -
Page 9: Measurement Procedure
« », Fig.15 will appear upon measurement end (for LD23, LD23A). Appearance of arrhythmia indicator may also be caused by body movement during measurement. During periodical appearance of this indication apply to You attending doctor (for LD23, LD23A). -
Page 10: Automatic ReInflating
6. Press the to switch off the Unit. For taking a new measurement repeat all steps described in this paragraph. TO OBTAIN THE ACCURATE RESULT MAKE INTERVAL BET WEEN MEASUREMENTS TO RESTORE THE BLOOD CIRCULATION. WAIT FOR AT LEAST 3 MINUTES BEFORE MAKING A NEW MEASUREMENT. If the Unit is ON and is unused for 3 minutes it will be switched off automatically. -
Page 11: Care, Storage, Repair And Disposal
CARE, STORAGE, REPAIR AND DISPOSAL 1. Keep this Unit from exposure to higher humidity, direct sunlight, shocks, vibration. THIS UNIT IS NOT WATERTIGHT! 2. Do not keep and use this Unit near heating installations and open fi re. 3. Remove the batteries if the Unit will be unused for a long time. Battery leaking may damage the Unit. -
Page 12: Troubleshooting Tips
TROUBLESHOOTING TIPS PROBLEM LIKELY CAUSE METHOD OF CORRECTION After pressing the Discharge of batteries. Replace all batteries for no indication on the new ones. Polarity of batteries is not display. observed. Install batteries correctly. Battery terminals are Clean the terminals with contaminated. -
Page 13: Warranty
3. The addresses of organizations for warranty maintenance are given in the warranty card. COMPLETENESS № Name LD23 LD23A LD23L 1 Electronic block Cuff (with air tube and air plug): Cuff -LDA (25-36 cm) –... -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Measurement method oscillometric with Fuzzy Algorithm Display Pressure indication range in an arm from 0 to 300 cuff , mmHg Measurement range: pressure in an arm cuff , mmHg from 40 to 260 pulse rate, 1/min from 40 to 160 Range of admissible absolute error at measurement of air pressure in an arm cuff... -
Page 15: Certification And State Registration
CERTIFICATION AND STATE REGISTRATION This unit manufacturing is certifi ed according to international standard ISO 13485. Units LD23, LD23A, LD23L comply with the requirements of European Directive MDD 93/42/ЕЕС, international standards, EN980, EN1041, EN1060-1, EN1060-3, EN10601-1-2, ISO 14971. Power source LD-N057 complies with international standard EN 55022 Class A, pro- tection level against electric shock: Class II, Type BF. - Page 16 Distributor in Europe: Little Doctor Europe Sp. z o.o. 57G Zawila Street, 30-390, Kraków, Poland Sales Offi ce phone: +48 12 2684746, 12 2684747, fax: +48 12 268 47 53 E-mail: biuro@littledoctor.pl www.LittleDoctor.pl Authorized Representative in the EU: Little Doctor Europe Sp. z o.o.
- Page 17 Yishun Central P.O. Box 9293 Singapore 917699, Fax: 65-62342197, E-mail: ld@singaporemail.com Little Doctor Europe Sp. z o.o. 57G Zawila Street Krakow 30-390 Poland ® Registered trade marks of Little Doctor International (S) Pte. Ltd. © Little Doctor International (S) Pte. Ltd., 2006-2017 E538/1703/8...
