Summary of Contents for Little Doctor LD11

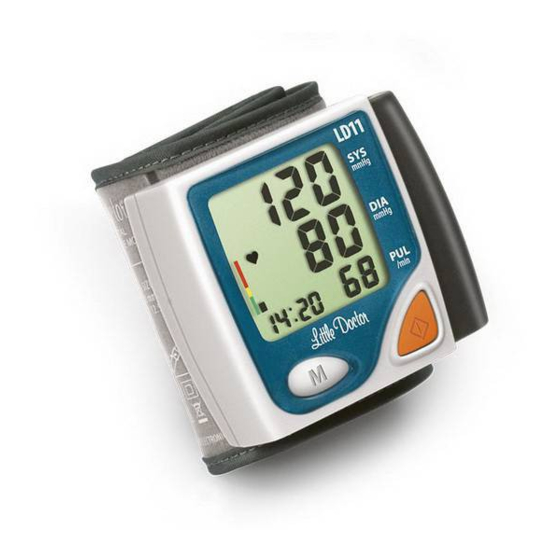

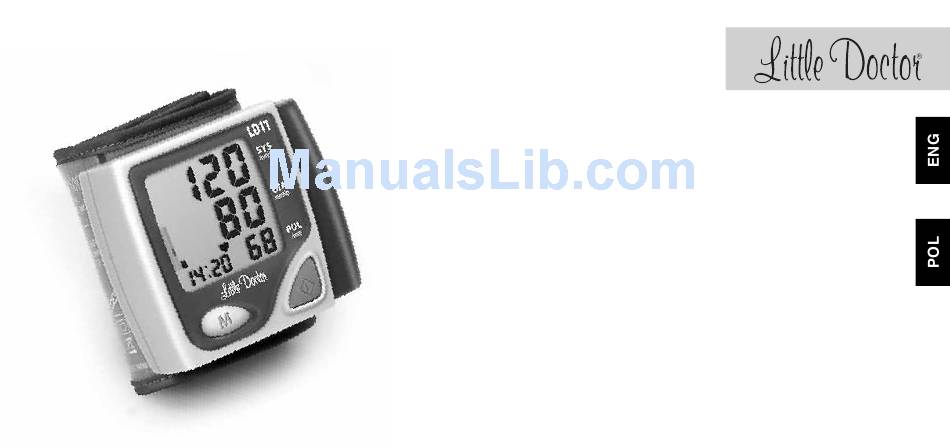

- Page 1 LD11 Digital Blood Pressure Monitor Instruction Manual Ciśnieniomierz elektroniczny automatyczny do pomiaru ciśnienia tętniczego krwi i pulsu Instrukcja obsługi...
- Page 2 NAME OF PARTS AND COMPONENTS 1. Electronic unit 6. Cuff 2. LCD display 7. Case 3. Key «M» (Memory) 8. Battery 4. Battery compartment cover 9. Instruction manual 5. Key « » ( on-off power) 10. Warranty card...
-
Page 3: General Information
This guide is intended to provide the user with the safe and efficient operation of a blood pressure monitor for measuring blood pressure and pulse rate series LD, pursuant to LD11 (hereinafter: the device). The device should be used in accordance with the rules set forth herein, and should not be used for purposes other than those described here. - Page 4 USED NEW LD TECHNOLOGIES Fuzzy Algorithm – an algorithm of processing the measurement data, which allows to take into account features of human heart, which provides higher accuracy. High The scale of the WHO – classification of measurement results according to the recommendations of the World Health Organization Norm (WHO).
- Page 5 REMEMBER THAT THE DIAGNOSIS AND TREATMENT OF ANY HYPERTENSION MAY BE CONDUCTED ONLY BY CERTIFIED PHYSICIAN BASED ON MEASUREMENT OF BLOOD PRESSURE RECEIVED BY DOCTOR YOURSELF. ADMISSION OR CHANGE OF DOSAGES OF TAKEN MEDICINES SHOULD BE ONLY AS PRESCRIBED BY YOUR PHYSICIAN. 3.
-
Page 6: Installation Of Batteries
INSTALLATION OF BATTERIES 1) emove the battery compartment and insert two AAA batteries, as shown in the diagram inside the com- partment. Make sure that the polarity observed. Do not use excessive force when removing the battery compartment cover. 2) Close the battery compartment cover. Replace all the batteries when the display continuously displays the battery replacement indicator “... -
Page 7: Correct Posture For Measurement
CORRECT POSTURE FOR MEASUREMENT Correct posture for measurement When there is no table Pressure measurement 1. Sit on a chair. 1. Sit on a chair while lying 2. Lift your left hand slightly palm up and place your elbow 2. Place the cuff at heart level, lightly pressing 1. - Page 8 PREPARATION OF THE CUFF 1 Hold the left hand palm up, place the cuff on the wrist so that the housing was on the side of the palm. Cuff can be worn on your left wrist, place it on the right, while results of the measurements may vary slightly. 5~10mm 2 Place the cuff on your arm so that its edge is at 5-10 mm from the edge of the palm.
- Page 9 In addition to the numerical result of the pressure is also displayed on the scale of the WHO (Fig. 4). WHO scale is the scale of three-color classification derived values of blood pressure, as recommended by the World Health Organization. Scale, being left on display, allows us to estimate the obtained figures according to the classification: the pressure is normal, increased, or this is one of degrees of hyperten- sion.
-
Page 10: Memory Function
MEMORY FUNCTION 1. The result of each measurement (blood pressure and heart rate, date, time) is automatically stored in the memory of device. MEASUREMENT RESULT WILL NOT BE SAVED IN CASE OF THE NOTICE OF ERROR. 2. The memory device can save up to 90 measurements and average of the last 3. -
Page 11: Information About Errors
INFORMATION ABOUT ERRORS Indication Probable cause Remedies Not wearing the cuff properly. Make sure the cuff is wearing properly and repeat the whole procedure of measurement. The measurement could not be done due to the movement with your Repeat the measurement, while fully respecting the recommendations hand or talk during measurement. -
Page 12: Care, Storage, Repair And Recycling
CARE, STORAGE, REPAIR AND RECYCLING 1. This appliance must be protected from excessive moisture, direct sunlight, shock and vibration. UNIT IS NOT WATERPROOF! 2. Do not store or use the device in close proximity to heaters and open flames. 3. If the product is not used for a long time, remove the battery from the unit. The flow of electrolyte from batteries can cause product’s damage. KEEP BATTERIES OUT OF REACH OF CHILDREN! 4. -
Page 13: Warranty
Inflating is stopped and restart There is an automatic inflating to ensure correct See PROCEDURE THE MEASUREMENT again. measurements. Perhaps you talked or moved by hand during the Calm down and repeat the measurement. measurement. Inflating is stopped and restart The cuff is not at the level of the heart. -
Page 14: Certification And State Registration
Little Doctor Europe Sp. z o.o., 57G Zawila Street, 30-390, Krakow, Poland. Service phone: +48 12 2684748, 2684749 Manufactured under control: Little Doctor International (S) Pte. Ltd., 35 Selegie Road # 09-02 Parkline Shopping Centre, Singapore 188307 Manufacturer: Little Doctor Electronic (Nantong) Co. Ltd., No.8, Tongxing Road Economic & Technical Development Area, Nantong 226010, Jiangsu, PEOPLE'S REPUBLIC OF CHINA Distributor in Europe: Little Doctor Europe Sp. - Page 15 Measurement error ±3 mm Hg (pressure in the cuff) ±5 % readings (pulse rate) Memory 90 measurements + average of the last three measurements Power supply 3 V, 2 х AAA (dry alkaline elements ) Maximum power consumption 1,5 W Conditions of use temperature from 10 °C to 40°C...
- Page 16 Yishun Central P.O. Box 9293 Singapore 917699, Fax: 65-62342197, E-mail: ld@singaporemail.com Shanghai International Holding Corp.GmbH Eiffestrasse 80, 20537 Hamburg, Germany. Tel: 0049-40-2513175 ® Registered trade marks of Little Doctor International (S) Pte. Ltd. E397/1510/02 © Little Doctor International (S) Pte. Ltd., 2006-2015...
