3.4 Configuration

3.4.1 Port Configuration

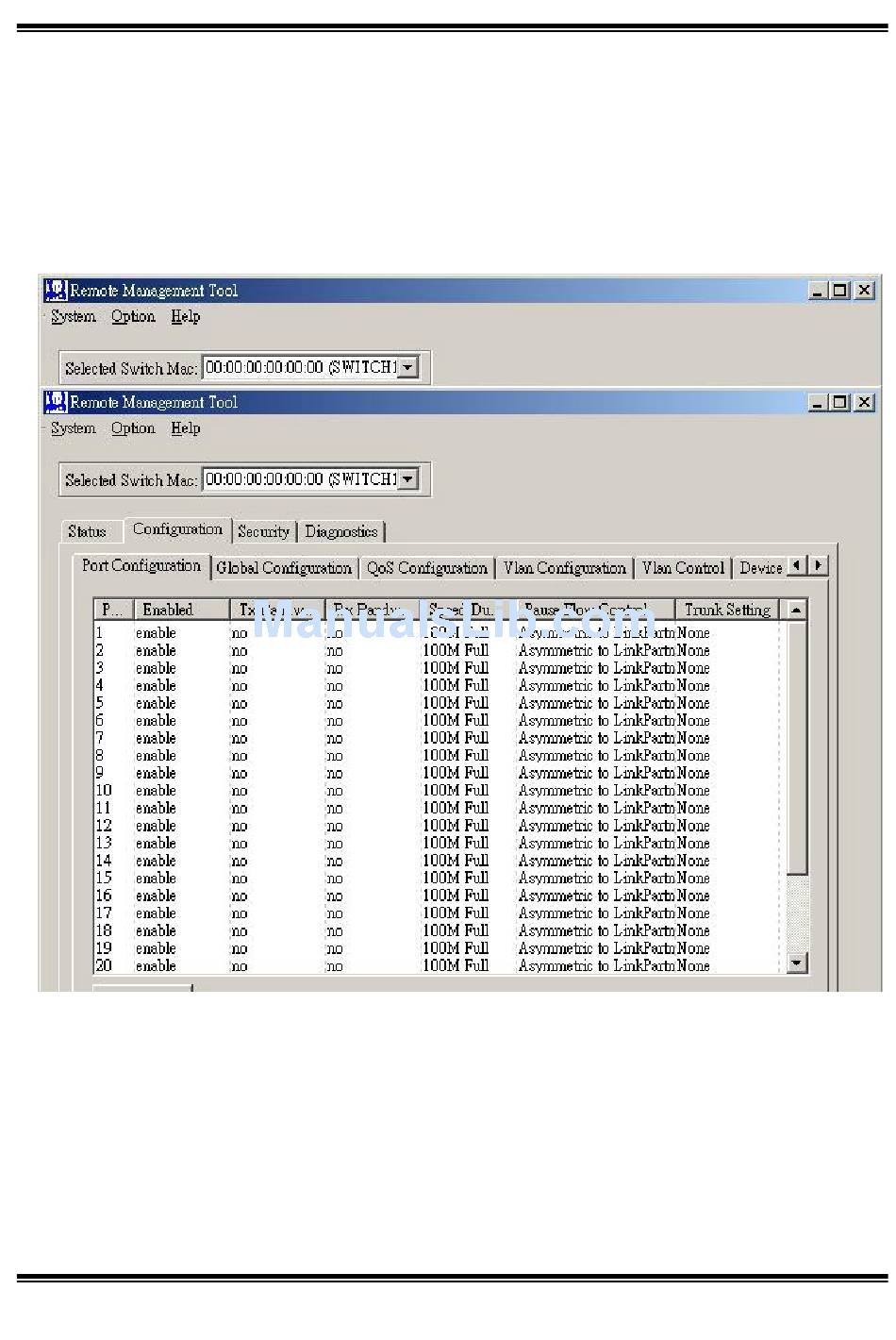

On the "Port Configuration"
including port enable/disable, Tx/Rx bandwidth setting, full/half-duplex, flow control, trunk
setting.
Note: There will not have port G1 and G2 if you use 24-Port 10/100M Ethernet Rack-Mount
Switch With Fiber Support
Click "Config" button to change the settings.
Select ports to config
Mark the port number which you want to configure. You can click "All" to mark all ports or
click "None" to unmark.
Port Enable
Mark "enable"
sheet, you can check each port's configuration information
to set the port is enabled to connect, otherwise not. The default setting is enable.
