TAG Control button

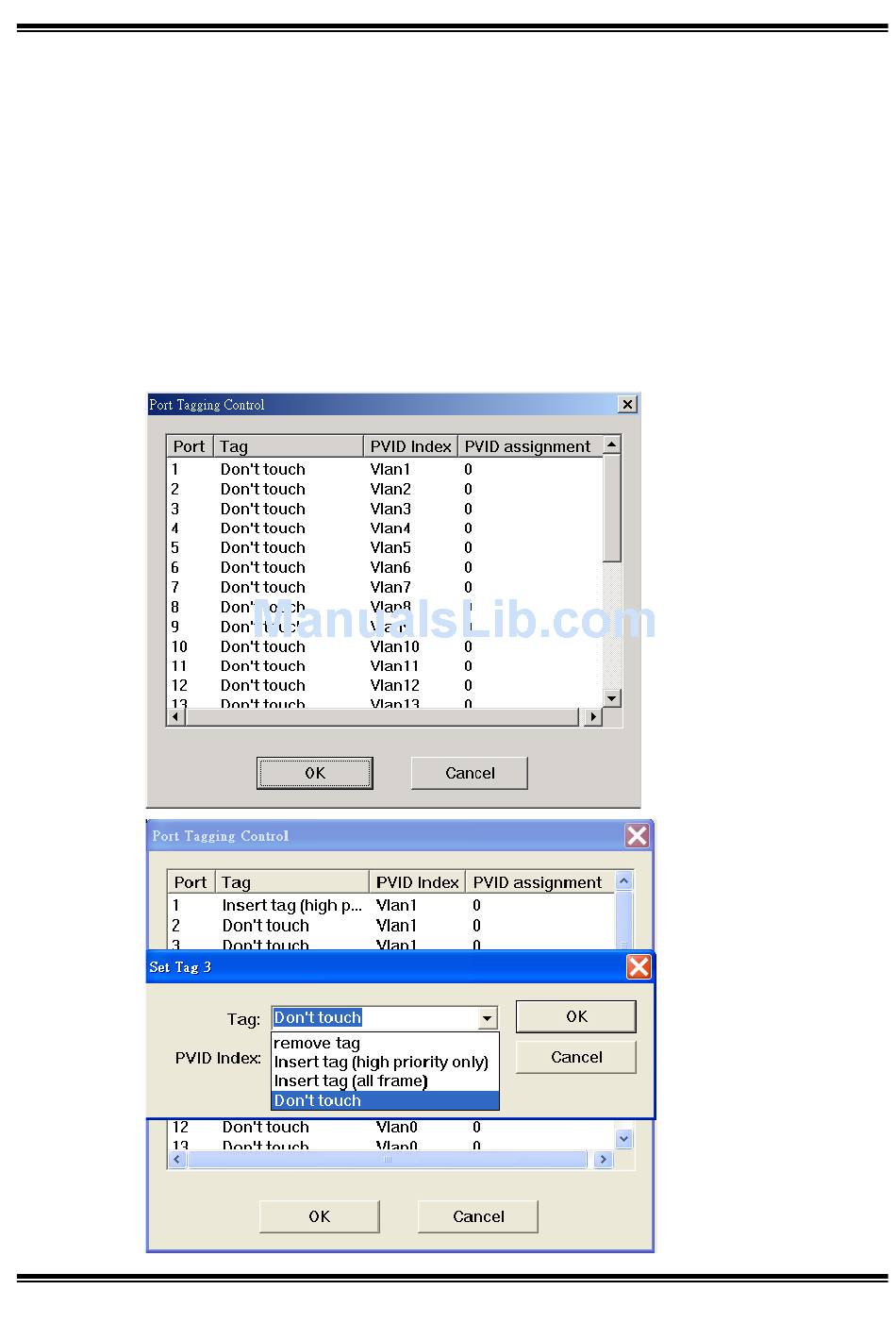

Press this button you will see a dialog like following. To configure a port, please double-click
the port you want to configure. There are three types of
1.Remove the VLAN
2.Insert priority tag into the untagged high-priority frame.
0 for high priority frame.)
3.Insert priority tag into the all untagged frame.
high priority frame; Set priority field = 0, VID field = 0 for low priority frame.)
4.Don't touch.
Note: The function could be enabled even the VLAN function is not enabled.
tag from all tagged frame.
(Not modify the packet)
VLAN Tag Control
(Set priority field = 7, VID field =
(Set priority field = 7, VID field = 0 for
27
for you to choose:
