3. COM port configuration

In this chapter, you will be provided with detailed information on how to set up the 24-Port
100/10M N-Way Rack-Mount Smart Switch through a PC terminal emulation program. A terminal
program is required to communicate with the switch's internal software. Only after the terminal
program setup is done, you are thus able to proceed to set up the 24-Port 100/10M N-Way
Rack-Mount Smart Switch .
Before you are able to access the 24-Port 100/10M N-Way Rack-Mount Smart Switch 24-Port
100/10M N-Way Rack-Mount Smart Switch , you have to configure your terminal emulation
program. Windows O/S provides a suitable program called "Hyper Terminal" for configuration, or
you can choose other third-party products such as "Telix and ProCom" instead.

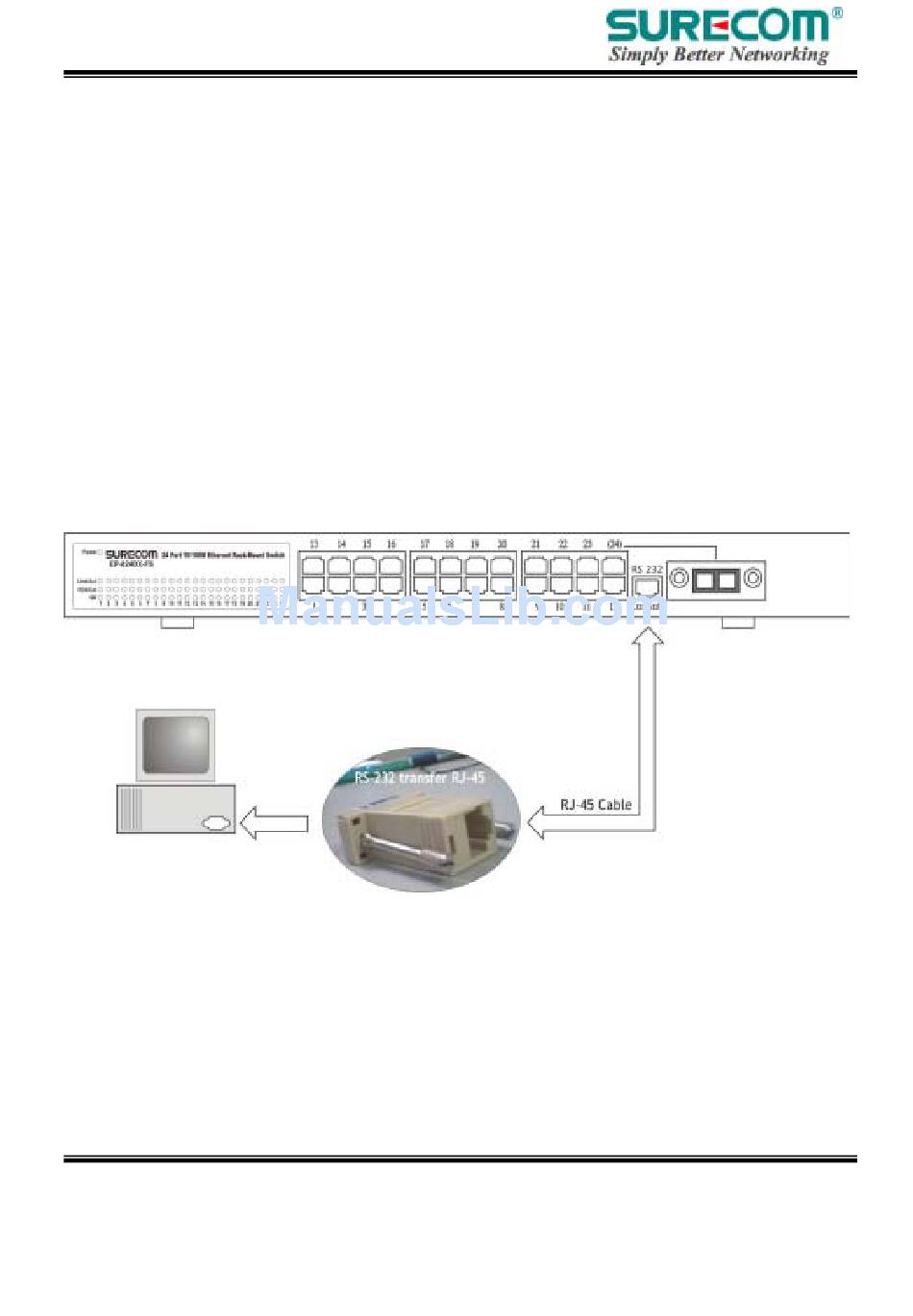

Connect a RJ-45 Cable to a COM port on your PC and to the console port of your Smart Switch
as the below figure.
2D
