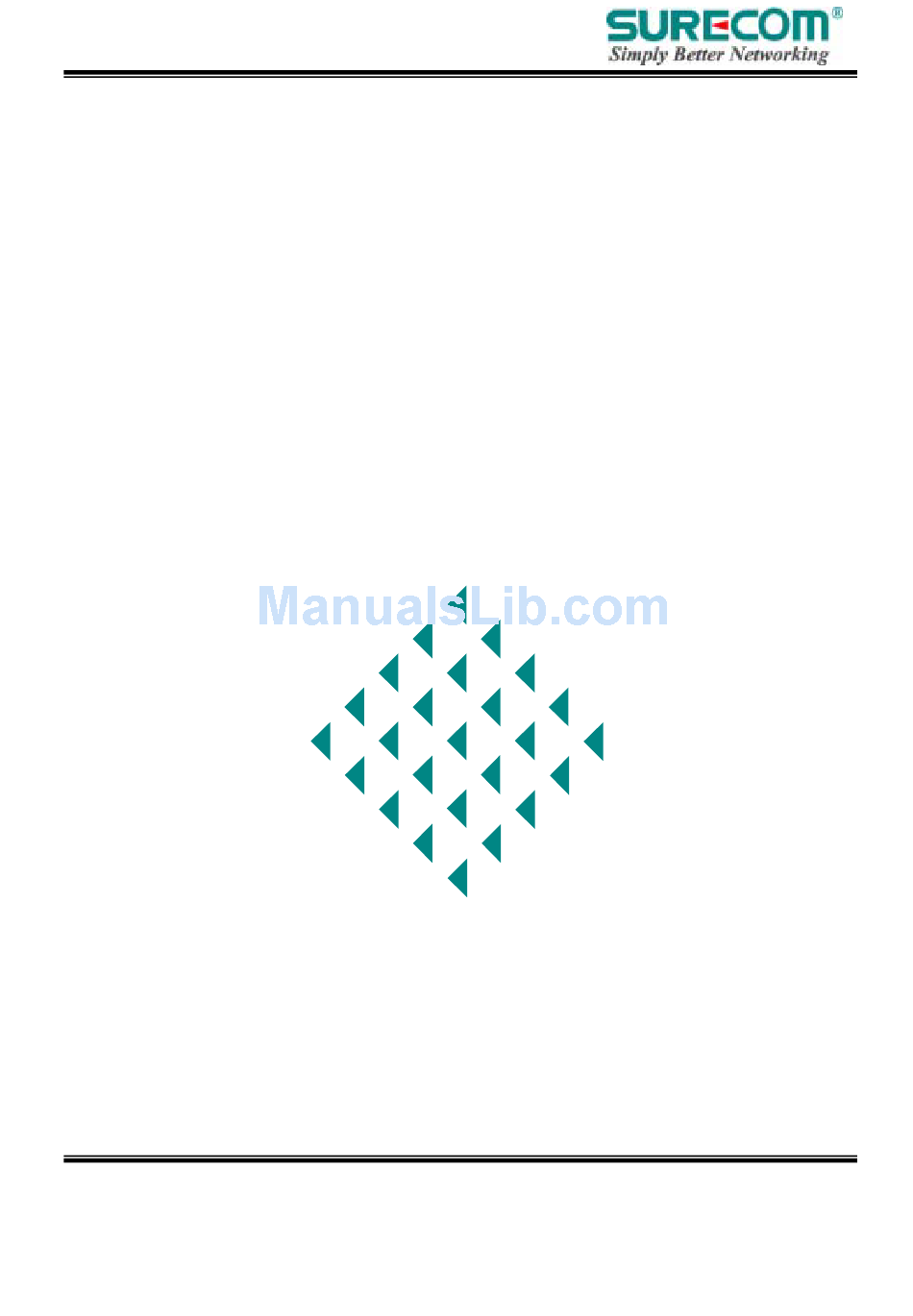

    EP-824DX-FS 24-Port 10/100M Ethernet Rack-Mount Switch With Fiber Support User Guide #471824DFS400 Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page1...
  • Page 2 Trademarks All company, brand, and product names are trademarks or registered trademarks of their respective companies. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page2...
  • Page 3: Table Of Contents

    3.2.7 Configuration-VLAN Member Setup ..............30 3.2.8 Configuration-Device Features................31 3.3 Security ..........................32 3.4 Diagnostics ..........................33 3.5 Load Factory Defaults .......................34 3.6 Save............................35 4. Warranty / Technical Support ....................36 Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page3...
  • Page 4: Introduction

    32 entries can be really used sometime which depends on whether you do VLAN setting with overlap port or not.) 18. Support up to 7 Trunk groups function with load balance and fault tolerance Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page4...
  • Page 5 VLAN、Trunk、Class of Service、Bandwidth Control …etc. With these functions, the network bandwidth will be utilized more efficiently and management will be more convenient. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page5...
  • Page 6: Technical Specification

    0℃ ~ 45℃ Storage: 0℃ ~ 60℃ Humidity Operating: 10% ~ 90% Storage: 5% ~ 95% Conformance: FCC Class A, CE Mark Class A Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page6...
  • Page 7: Package Contents

    (e.g., 10 Mbps or 100 Mbps and half or full duplex) based on the capabilities of the node to which it is connected. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page7...
  • Page 8 Ethernet networks. The standard uses packet tags that define up to eight traffic classes and allows switches to transmit packets based on the tagged priority value. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page8...
  • Page 9 “querier” and assumes responsibility for keeping track of group membership. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page9...
  • Page 10: Hardware Installation

    Switches/Hubs. Each port uses auto-negotiation for automatic speed and mode selection. Fiber Module Slot (Optional) - Extends the connection distance up to 2,000 meters.(Optional with Multi-mode) Rear Panel Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page10...
  • Page 11 Lights for any port to indicate that the port is operating at 100 Mbps. Off to indicate that the port is operating at 10 Mbps while the network is still operating. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page11...
  • Page 12: Hardware Connection

    LAN card, the cable and connectors are properlyattached to the PC and the Switch. When a attached PC is powered on or reset: Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page12...
  • Page 13 FDX/Col LED depends on the attached Switch or other devices’ capabilities. The 100 LED will light for 100Mbps connection, otherwise it will be unlighted. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page13...
  • Page 14: Com Port Configuration

    Connect a RJ-45 Cable to a COM port on your PC and to the console port of your Smart Switch as the below figure. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page14...
  • Page 15 Com port (usually COM2, since a mouse is usually connected to COM1) from the “Connecting using” label and press the “Enter” key. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page15...
  • Page 16 3. This COM1 properties settings must be mandatory correct. Follow the instructions as shown to complete the settings and click “OK”. 4.Power Up Power up after, switch to meet first Initializing……. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page16...
  • Page 17 You can use the “Function Keys” on below of the screen of each page to configure. *Please do remembering saving your configuration after doing any changes. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page17...
  • Page 18: Status

    You can check each port’s link status and configration information in this sheet. Click “F” to get the latest information. Click “0” Return previous setting sheet. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page18...
  • Page 19: Status-Overview

    The Management Application shows one switch’s information at one time. Which displayed switches discovered in the network. Click the “E”: You can name the switches of the item. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page19...
  • Page 20: Status-Mib Counter

    Click the “C”: Clear all statistics data. Click the “P”: Start counting, includes both transmitting and receiving data. Click the “X”: Stop counting. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page20...
  • Page 21 Click the “1”: Page up check. Click the “2”: Page down check. Click the “0”: Return previous setting sheet. Click the “F”: to get the latest information. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page21...
  • Page 22: Configuration

    ” Port ” , ” Trunking ” , ” Global ” , ” QoS ” , ” Priority Tag Inser/Remove ” , ” VLAN Global Control ” , ”VLAN Member Setup” , ”Device Feature” setting. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page22...
  • Page 23: Configuration-Port

    Rx Bandwidth / Tx Bandwidth: You can configure the “Receive Bandwidth/ Transmit Bandwidth” on which port for your requirement from follows listing : 128K/256K/512K/1M/2M/4M/8M Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page23...
  • Page 24: Configuration-Trunking

    M”: Up / Down select. Click the “0”: Return previous setting sheet. Click the “Space”: Toggle state. Click the “F”: to get the latest information. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page24...
  • Page 25: Configuration-Global

    Loop Detect: Prevent undesirable loops in the network, for an Ethernet network to function properly, only one active path can exist between two stations. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page25...
  • Page 26: Configuration-Qos

    High priority: whose DS-field = (EF,expected forwarding:) 101110 (AF, Assured Forwarding:) 001010; 010010; 011010; 100010(Network Control:) 11x000 Low priority: whose DS-field = others values. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page26...
  • Page 27 •Force Set High Priority Port When Port based priority is applied, any packet received from the high priority port will be treated as a high priority frame. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page27...
  • Page 28: Configuration-Priority Tag Insert/Remove

    M”: Up / Down select. Click the “0”: Return previous setting sheet. Click the “Space”: Toggle state. Click the “F”: to get the latest information. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page28...
  • Page 29: Configuration-Vlan Global Control

    •Ingress Rule for Ingress Filtering control This function is to enable filtering the frame received from a port, which is not included in the classified VLAN group member. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page29...
  • Page 30: Configuration-Vlan Member Setup

    VLAN setting with overlap port or not Click the “E” to enter “Edit Mode”. And then use function keys to configure VLAN settings. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page30...
  • Page 31: Configuration-Device Features

    IGMP Snooping Control register. Click the “0”: Return previous setting sheet. Click the “Space”: Toggle state. Click the “F”: to get the latest information. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page31...
  • Page 32: Security

    3.3 Security This model does not support this function. This function is only available on Windows-based Smart version. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page32...
  • Page 33: Diagnostics

    Network Loop Fault Port Detect: When ”X” appears ,it means there is undesirable loop in the network caused of the cable be plugged in the corresponding port. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page33...
  • Page 34: Load Factory Defaults

    3.5 Load Factory Defaults Select “5” to load the factory default setting. *Please remember to select “6” for save it after load the factory default setting..Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page34...
  • Page 35: Save

    3.6 Save Please do remembering saving your configuration after doing any changes. Or the changes of configuration will not work. Specifications are subject to change without notice. © 2004 by SURECOM Technology Corporation. All rights reserved. Page35...
  • Page 36: Warranty / Technical Support

    2-Year Limited Warranty for this switch Subject to the terms and conditions set forth herein, SURECOM provides this Limited warranty for its product only to the person or entity that originally purchased the product from SURECOM or its authorized reseller or distributor.
