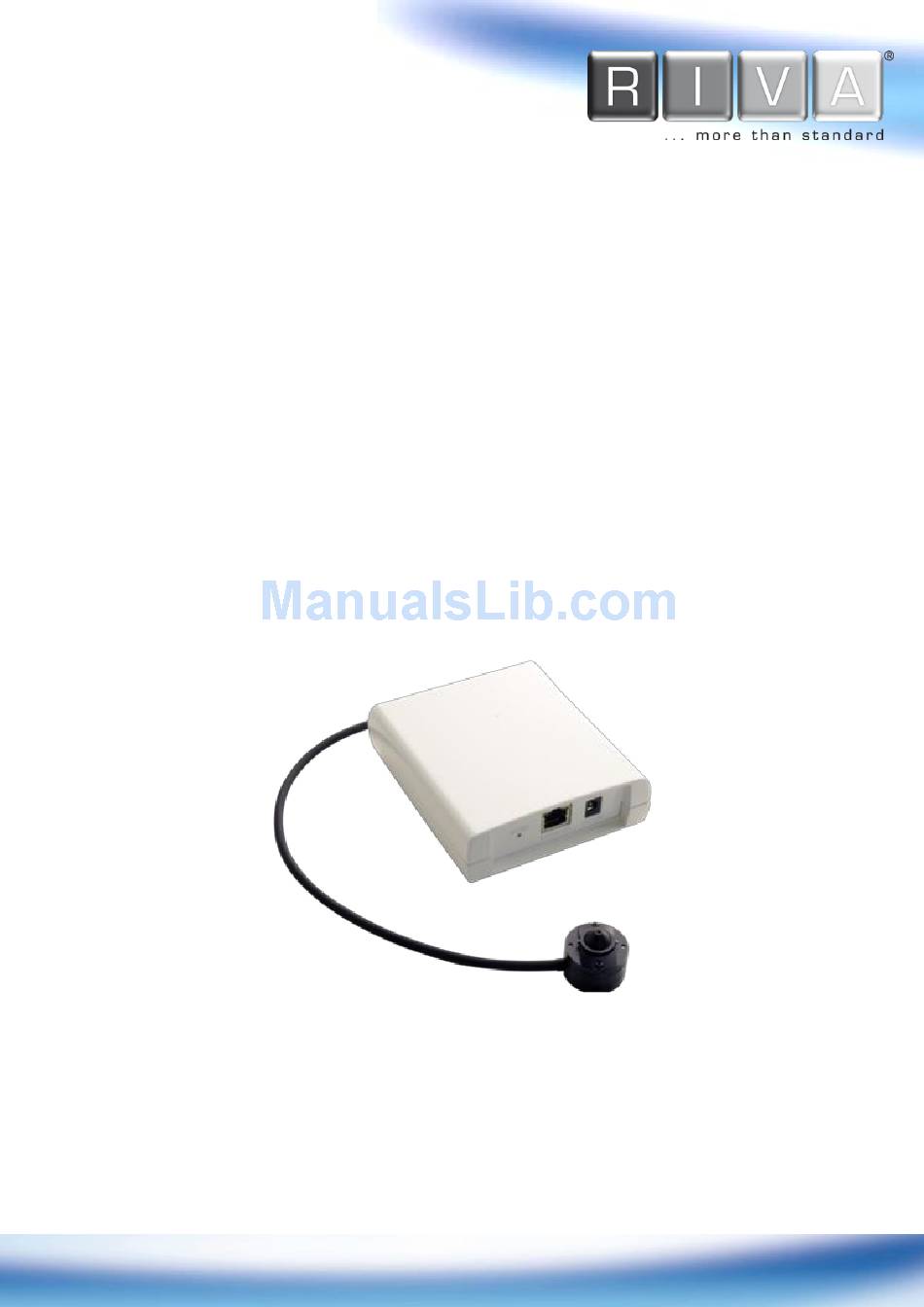

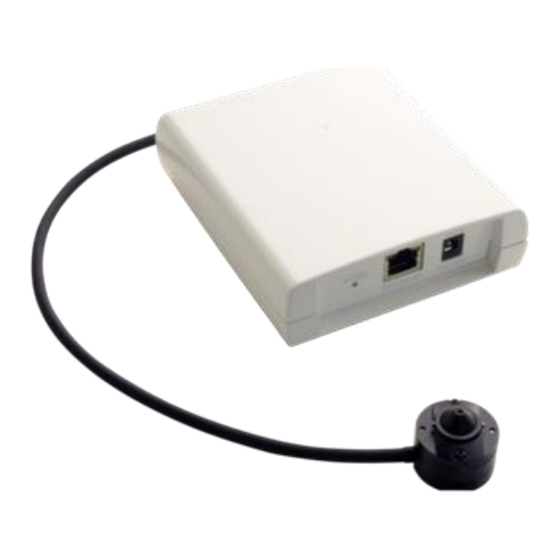

Page 1: Installation Guide
RC8102HD-6111T/W Installation Guide www.rivatech.de Specification subject to change without notice... -
Page 2: Precaution
Precaution Please read this manual carefully before installing the units. Never disassemble the main unit and the camera unit. Unauthorized disassembly may cause equipment failure or damage to the unit. Do not install the product on unstable brackets, unstable or vibrating surfaces since this could cause damage to the product. -
Page 3: Table Of Contents
HD Series RC8102HD Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 8 4.1. Camera Unit Installation ....................8 4.2. Main Unit Installation ....................... 12 4.3. -
Page 4: Features
HD Series RC8102HD Installation Guide 1. FEATURES Camera 1/3” 1080p CMOS Image Sensor Digital Day/Night Video H.264 Baseline, Main, High profile(MPEG-4 Part 10/AVC), MJPEG(Motion JPEG) Max 30fps in 1080p* Text Overlay Network 10 / 100 Base-T Ethernet Integration ... -
Page 5: Package Contents
HD Series RC8102HD Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The package contains: Camera Unit Main Unit Universal Plugs Power Adaptor (DC12V) Double-sided tape Covert Cover Rotate Ring Surface Mount Bracket for Covert Cover PAN/TILT Bracket Tapping Screw... -
Page 6: Part Names
This button will restart or reset to factory default settings. Refer to To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys User Manual (Online Help)”, which is available on www.rivatech.de homepage. - Page 7 HD Series RC8102HD Installation Guide 5.3. Reboot and 5.4. Factory Default for more details. ⑤ LAN Connector RJ45 LAN connector for 10/100 Base-T Ethernet (PoE supported) ⑥ Power Adaptor Connector DC 12V power supply connection ⑦ Slide Plate Built-in mounting bracket for main unit 11-2014-A www.rivatch.de...
- Page 8 HD Series RC8102HD Installation Guide Camera Unit with conjoined accessories ① ③ ④ ⑤ ② * Model herein and its appearance are subject to change without any prior notice. ① Camera Pinhole camera ② Camera DIN connector Connector to be inserted to the camera connector in the main unit ③...
-
Page 9: Installation
HD Series RC8102HD Installation Guide 4. INSTALLATION 4.1. Camera Unit Installation There are three different ways to install the camera unit: Covertly behind the wall or ceiling by using the covert cover Mounted and fixed on the wall or ceiling by using the surface mount bracket Mounted and fixed on the wall or ceiling by using the pan/tilt bracket to enable the camera’s angle adjustment Covert Installation... - Page 10 HD Series RC8102HD Installation Guide 3) Peel off the other side of the tape, and stick (Behind the wall or the taped surface to the installation surface above the ceiling) by placing it with the screw head upward and the cable holder downward and aligning it Screw head with the drilled hole on the installation cable holder...
- Page 11 HD Series RC8102HD Installation Guide Surface Installation for fixed angle 1) Place the camera on a desired installation surface. 2) Cover the camera with the surface mount bracket by routing the camera’s cable into the cable holder on the bracket. Then, fasten the bracket using the tapping screws (M3x20) and anchor blocks appropriate for the material of the installation surface.
- Page 12 HD Series RC8102HD Installation Guide Surface Installation for pan/tilt adjustment 1) Drill a hole on a desired installation surface, and insert an anchor block into the hole. 2) Fix the pan/tilt bracket by inserting the tapping screw (M4x25) to be passed through the screw hole on the bracket and tightening it into the anchor block.
-
Page 13: Main Unit Installation
HD Series RC8102HD Installation Guide 4.2. Main Unit Installation The main unit can be mounted on the installation surface by the built-in slide plates. 1) Pull out both slide plates at the bottom of the main unit. 2) Place the main unit on the installation surface by facing the bottom of the main unit toward the installation surface, and mark the drilling spots based on the alignment holes on the slide plates. -
Page 14: Cable Connection
HD Series RC8102HD Installation Guide 4.3. Cable Connection DI/DO terminal connector 1) Connect external input/output devices (e.g. alarm device) optionally if they are necessary. Refer to the reference below for the appropriate connections. DO (Alarm) – For connecting an external device such as relays and LEDs. Do the electrical wiring correctly referring to the following information. - Page 15 HD Series RC8102HD Installation Guide DI (Sensor) – For connecting a device such as a PIR and a door/window sensor. Do the electrical wiring correctly referring to the following information. Function Specifications Ground Input 0 to 5 VDC Max load: 50mA Internal +3.3V Internal...
- Page 16 HD Series RC8102HD Installation Guide LAN connector 3) Connect the main unit to the network using an Ethernet cable (RJ45). Then, install the ferrite core on the Ethernet cable. Refer to the explanations below for the ferrite core installation. In case you intend to power the device using the LAN cable, a PoE switch should be available in your network.
-
Page 17: Configuration
HD Series RC8102HD Installation Guide 5. CONFIGURATION 5.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 18: Custom Ip Environment
HD Series RC8102HD Installation Guide 5.1.2. Custom IP Environment IPAdminTool and the manual can download from www.rivatech.de homepage. IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 19: View Video On Web Page
HD Series RC8102HD Installation Guide 5.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 5.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click Install to proceed. When Setup installation pop-up window appears, click Install to proceed with rest of installations. -
Page 20: View Video Using Ipadmin Tool
Microsoft® Internet Explorer to have the complete Caution configuration privileges. More Information To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys User Manual (Online Help)”, which is available on www.rivatech.de homepage. -
Page 21: Reboot
HD Series RC8102HD Installation Guide 5.3. Reboot Perform the following procedures to rest your device: Press the reset button for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold the reset button for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings. - Page 22 HD Series RC8102HD Installation Guide How to recover your system from Safe Mode Browse The messages above will appear on the webpage when your device has been rebooted in the safe mode. Then, you should follow the instructions on the webpage according to each step. There are two types of firmware files when you receive a firmware folder from your vendor.
-
Page 23: Appendix (A): Specifications
1/3” 1080p CMOS CMOS Effective Pixels 1920 x 1080 Scanning system Progressive scanning Resolution 1920 x 1080 Min. ELECTRICAL RC8102HD-6111T Color: 1.4Lux / BW: 0.01Lux (DSS ON) Illumination AGC Control Auto Lens RC8102HD-6111T 3.7mm, F2.5 Day & Night Digital Day & Night... -
Page 24: Electrical Characteristics
HD Series RC8102HD Installation Guide (Class 4 and higher recommended for HD recordings) Electrical Characteristics Power Source DC 12V (Class 2, LPS) / PoE IEEE802.3af (Class 0) Power Consumption 6W @ DC12V Video Output Audio Input Audio Output Max 50mA@5VDC, TTL level 1.5V threshold Max 50mA@24VDC On-state resistance:50 Ω... -
Page 25: Appendix (B): Power Over Ethernet
HD Series RC8102HD Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. The IEEE 802.3af allows for two power options for Category 5 cables. The IEEE 802.3af-2003 standard allows up to 15.4 W of power to device. -
Page 26: Appendix (C): Dimensions
HD Series RC8102HD Installation Guide APPENDIX (C): DIMENSIONS [ Main Unit ] (Unit: mm) 11-2014-A www.rivatch.de... - Page 27 HD Series RC8102HD Installation Guide [ Camera Unit ] (Unit: mm) 11-2014-A www.rivatch.de...
- Page 28 HD Series RC8102HD Installation Guide [ Bracket ] Covert Cover Surface Mount Bracket Pan / Tilt Bracket (Unit: mm) 11-2014-A www.rivatch.de...
-
Page 29: Appendix (D): Hexadecimal-Decimal Conversion Table
HD Series RC8102HD Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. Hex Dec 11-2014-A www.rivatch.de... -
Page 30: Revision History
HD Series RC8102HD Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 04-2014-A 04/29/2014 First release version Required information added for UL approval 07-2014-B 07/17/2014 (Precaution & P.23) 11-2014-A 11/19/2014 specification for SD/SDHC modified (P.6 & P.22) 11-2014-A www.rivatch.de...
