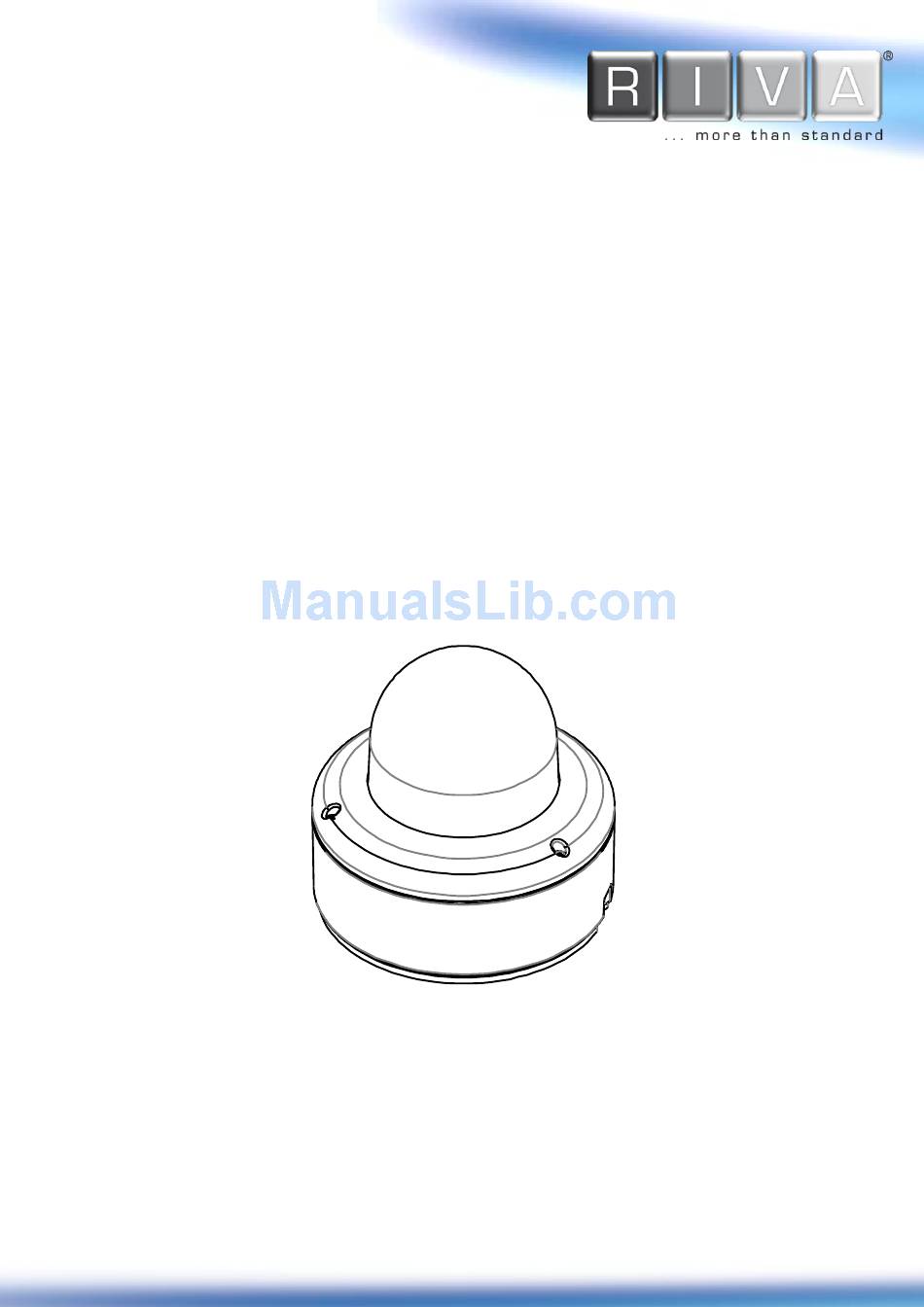

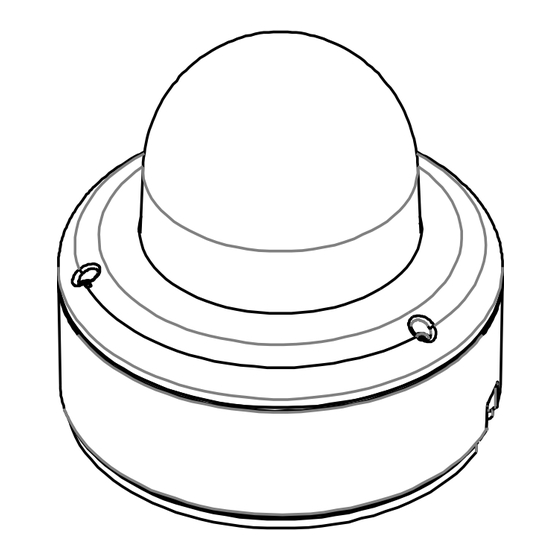

Page 1: Installation Guide
RC5502HD-6415-05 Installation Guide www.rivatech.de Specification subject to change without notice... -
Page 2: Precaution
RC Series RC5502HD-6415-05 Installation Guide Precaution Please read this manual carefully before installing the unit. Do not disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. -
Page 3: Table Of Contents
RC Series RC5502HD-6415-05 Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 7 4.1. Installing the camera ......................7 4.1.1. Installation without bracket ..................7 4.1.2. -
Page 4: Features
RC Series RC5502HD-6415-05 Installation Guide 1. FEATURES Camera 1/3” 1080p CMOS Image Sensor 5x Optical and 12x Digital Zoom Digital Day & Night Weather Proof (IP66) Video H.264 Baseline, Main, High profile (MPEG-4 Part 10/ AVC), MJPEG(Motion JPEG) ... -
Page 5: Package Contents
Quick Installation Guide Installation Template RC Series RC5502HD-6415-05 Installation Guide 2. PACKAGE CONTENTS RESET MICRO SD CARD Please unpack the package carefully, and handle the device with care. The package contains: DC Jack Camera DC Power Adaptor Plastic Anchors (3EA) DO N.O... -
Page 6: Part Names
RC Series RC5502HD-6415-05 Installation Guide 3. PART NAMES Reset Button microSD Card Slot RESET MICRO SD CARD DC Jack DC Jack DIN + WHITE DO N.O Black DO COM DO N.O ORANGE White Digital Input Black DO COM Yellow DI COM... -
Page 7: Installation
RC Series RC5502HD-6415-05 Installation Guide 4. INSTALLATION 4.1. Installing the camera 4.1.1. Installation without bracket Installation Template Mounting templa te (Unit: mm) The image size scale of the installation template above is not 1:1. The correct size installation template paper can be found inside the package. - Page 8 RC Series RC5502HD-6415-05 Installation Guide ation Template 1) Place the installation template included in the package on the desired installation surface. 2) Drill two holes based on the template paper, and insert the plastic anchors into the holes. 2-1) In case of connecting cables directly...
-
Page 9: Compatible Accessories
RC Series RC5502HD-6415-05 Installation Guide 4.1.2. Compatible Accessories The following are the various combinations of the compatible accessories to mount this camera model. Model Names & Combinations WMB-3000P + PMC-5502 + (JBK-U100) + (CMA-U100 or PMA-U100) CMB-3000P + PMC-5502 GBA-3000 Refer to the corresponding accessory model’s installation guide for the instructions. -
Page 10: Adjusting Angle Of The Camera
RC Series RC5502HD-6415-05 Installation Guide 4.2. Adjusting angle of the camera The device is a 360 rotating camera and is fully controlled via the web user interface. Refer to the provided webpage user’s manual for the instruction. 4.3. Adjusting zoom and focus The device is equipped with the 5x optical zoom lens with the auto focus feature, and it is fully controlled via the web user interface. -
Page 11: Connections
RC Series RC5502HD-6415-05 Installation Guide 5. CONNECTIONS N / A N / A RESET N / A N / A MICRO SD CARD VIDEO AUDIO DC12V ETHERNET MICRO SD DC Power DC Jack DIN + WHITE DO N.O ... - Page 12 RC Series RC5502HD-6415-05 Installation Guide ② Sensor (DI) connection Sensor (DI) device can be connected to either a voltage type sensor or a relay type sensor like the following figures. Settings can be done through the camera’s webpage. Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Do not exceed the maximum input voltage or relay rate.
- Page 13 RC Series RC5502HD-6415-05 Installation Guide ④ LAN connection This is an RJ45 LAN jack for PoE plus connectivity. Use the Ethernet cable (RJ45) to connect the device to a hub or a router in the network. When the LAN cable is connected, the orange LED light will become solid and green LED will blink every 250 millisecond.
-
Page 14: Configuration
RC Series RC5502HD-6415-05 Installation Guide 6. CONFIGURATION 6.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 15: Custom Ip Environment
RC Series RC5502HD-6415-05 Installation Guide Custom IP Environment Please access our website and download necessary IPAdminTool first: http://www.rivatech.de/en/downloads/software IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 16: View Video On Web Page
RC Series RC5502HD-6415-05 Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default user name and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click Install to proceed. -
Page 17: View Video Using Ipadmin Tool
RC Series RC5502HD-6415-05 Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. -
Page 18: Reboot
RC Series RC5502HD-6415-05 Installation Guide 6.3. Reboot Perform the following procedures to reset your device. Press the reset button for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold the reset button for more than 2 seconds. Otherwise, the camera may be switched to its factory default settings. - Page 19 RC Series RC5502HD-6415-05 Installation Guide How to recover your system from Safe Mode Browse The messages above will appear on the webpage when your device has been rebooted in safe mode. Then, you should follow the instructions on the webpage according each step.
-
Page 20: Appendix (A): Specifications
RC Series RC5502HD-6415-05 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/3” 1080p CMOS CMOS Scanning system Progressive Scanning Resolution 1920 x 1080 Min. Color: 0.1Lux(30IRE) / 0.01Lux(30IRE, Sens-up) ELECTRICAL Illumination B/W: 0.1Lux(30IRE) / 0.01Lux(30IRE, Sens-up) AGC Control... -
Page 21: Electrical Characteristics
RC Series RC5502HD-6415-05 Installation Guide Function Digital Input/output 1/1 channel RS-485 Not supported Network 10/100 Base-T Power over Ethernet Supported QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, FTP, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, Protocol DHCP, DNS, DynDNS, NTP, SNMPv1/v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLSv1/1.2, SRTP, RTMP, IEEE802.1X... -
Page 22: Appendix (B): Power Over Ethernet
RC Series RC5502HD-6415-05 Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. -
Page 23: Appendix (C): Dimensions
RC Series RC5502HD-6415-05 Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 04-2017-A www.rivatech.de... -
Page 24: Appendix (D): Hexadecimal-Decimal Conversion Table
RC Series RC5502HD-6415-05 Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. BA 186 BD 189 AA 170 AB 171 AD 173 DA 218 DB 219... -
Page 25: Revision History
RC Series RC5502HD-6415-05 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 02-2016-A 02/05/2016 First release version 04-2016-A 04/01/2016 Minor update on the specification table 05-2016-A 05/09/2016 Installation Template modified 09-2016-A 09/23/2016 Modification of an accessory 12-2016-A 12/06/2016 Corrected some errors in the specifications table...
