Installation

CONNECTIONS

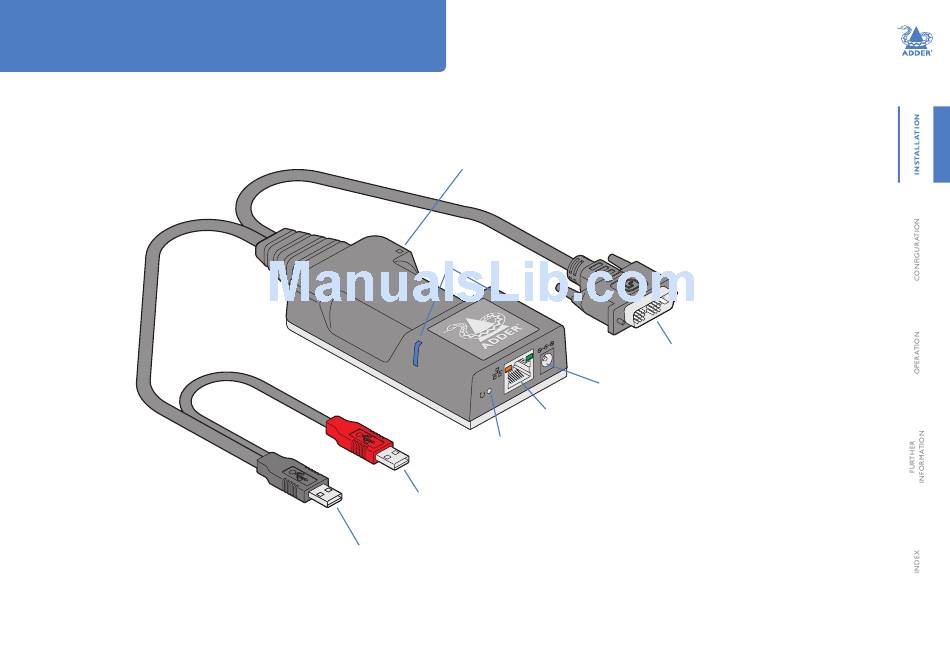

Installation involves linking the ALIF100T unit to various ports on the host computer,
while the ALIF RX unit is attached to your peripherals:
Cable tie
mounting slot
Status
indicators
(page 10)
DVI-D (or DisplayPort)
connector input (page 5)
Optional
external power
input
Ethernet
(page 6)
port
(page 5)
Reset
button
(page 7)
Red USB plug provides
power only when the
external power adapter is
not present
Black USB plug provides
(page 6)
USB signals (plus power if
the external power adapter
is not present)
4
