ADDER ADDERLink INFINITY 101T Quick Start

www.adder.com
© 2020 Adder Technology Limited • All trademarks are acknowledged.
Part No. MAN-QS-ALIF101T-ADDER_V1.0

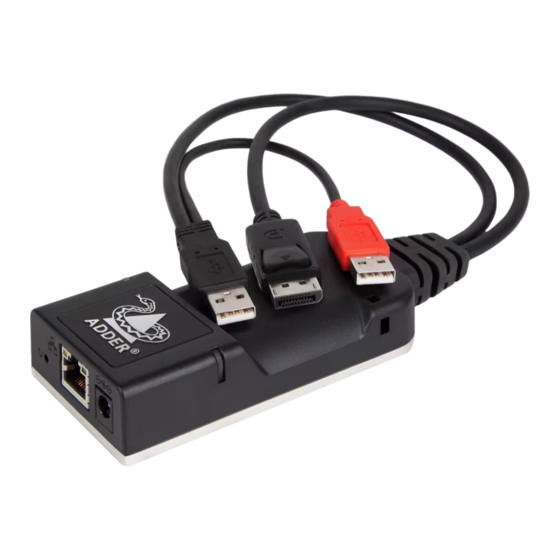

ADDERLink INFINITY 101T
Welcome
This quick start guide covers some of the key points of the ALIF101T unit. Full user details and setup
instructions can be found at www.adder.com/en/kvm-solutions/adderlink-infinity-101t
Initial configuration
Please see the next page for Connection details.

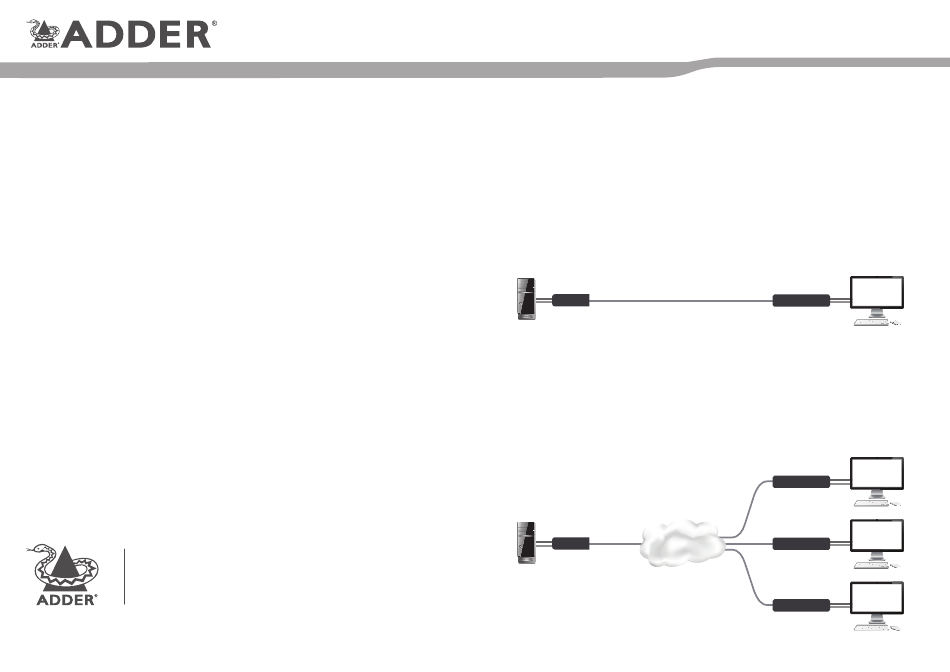

ALIF units can be linked in two mains ways: Direct or Networked.
Direct linking
Where ALIF transmitters and receivers are directly linked to each other, very little configuration action
is required, provided that they both have their factory default settings in place - just link them together.
If the standard settings have been changed in a previous installation, you merely need to perform a
manual factory reset on each unit. Please see the next page for further details.
ALIF101T
Networked linking
Where ALIF units are connected via networked links, you can either configure them individually, or
configure them collectively using an AIM server:
• Configuring networked ALIF units individually - You need to specify the network addresses
of the ALIF units so that they can locate each other. This is done by running the ADDERLink
INFINITY browser-based configuration utility on a computer system linked to the same network
as the ALIF units. Please see the next page for further details.
• Configuring networked ALIF units collectively - The ADDERLink INFINITY Management
(AIM) server allows you to configure, control and coordinate any number of ALIF transmitters and
receivers from a single application. See adder.com for details.
Note: If you are using one or more ALIF101T transmitters
within an installation managed by an AIM server, the AIM
server must be running firmware version 4.12 or above.
Gigabit
ALIF101T
Ethernet
IMPORTANT: When using AIM to configure ALIF units, it is
vital that all units that you wish to locate and control are
set to their factory default settings. Otherwise they will
not be located by the AIM server. If necessary, perform a
manual factory reset on each ALIF unit. See next page.
Quick Start
ALIF RX
ALIF RX
ALIF RX
ALIF RX
continued overleaf
