Installation

CONNECTIONS

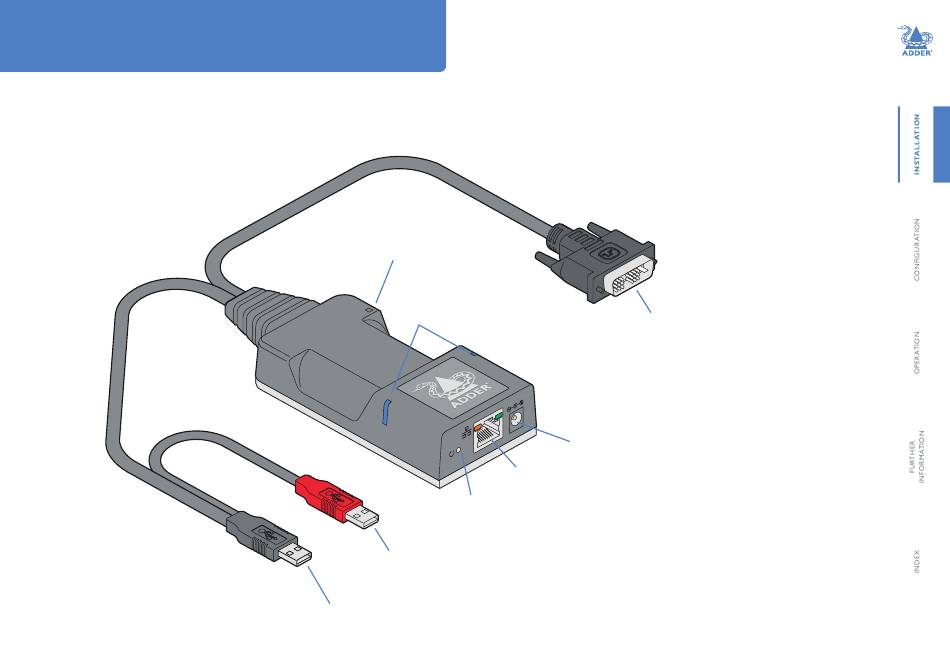

Installation involves linking the ALIF101T unit to various ports on the
host computer, while the ALIF RX unit is attached to your peripherals:
Cable tie
mounting slot
indicators
Red USB plug provides
power only when the
external power adapter is
Black USB plug provides Hi-Speed USB
signals (plus power if the external power
adapter is not present)
Status
(page 10)
Optional
external power
Ethernet
(page 6)
port
(page 5)
Reset
button
(page 7)
not present
(page 6)
'Suitable for installation in Information Technology
Rooms in accordance with Article 645 of the
National Electrical Code and NFPA 75.
Peut être installé dans des salles de matériel de
traitement de l'information conformément à l'article
645 du National Electrical Code et à la NFPA 75.'
DVI-D input
connector
(page 5)
input
