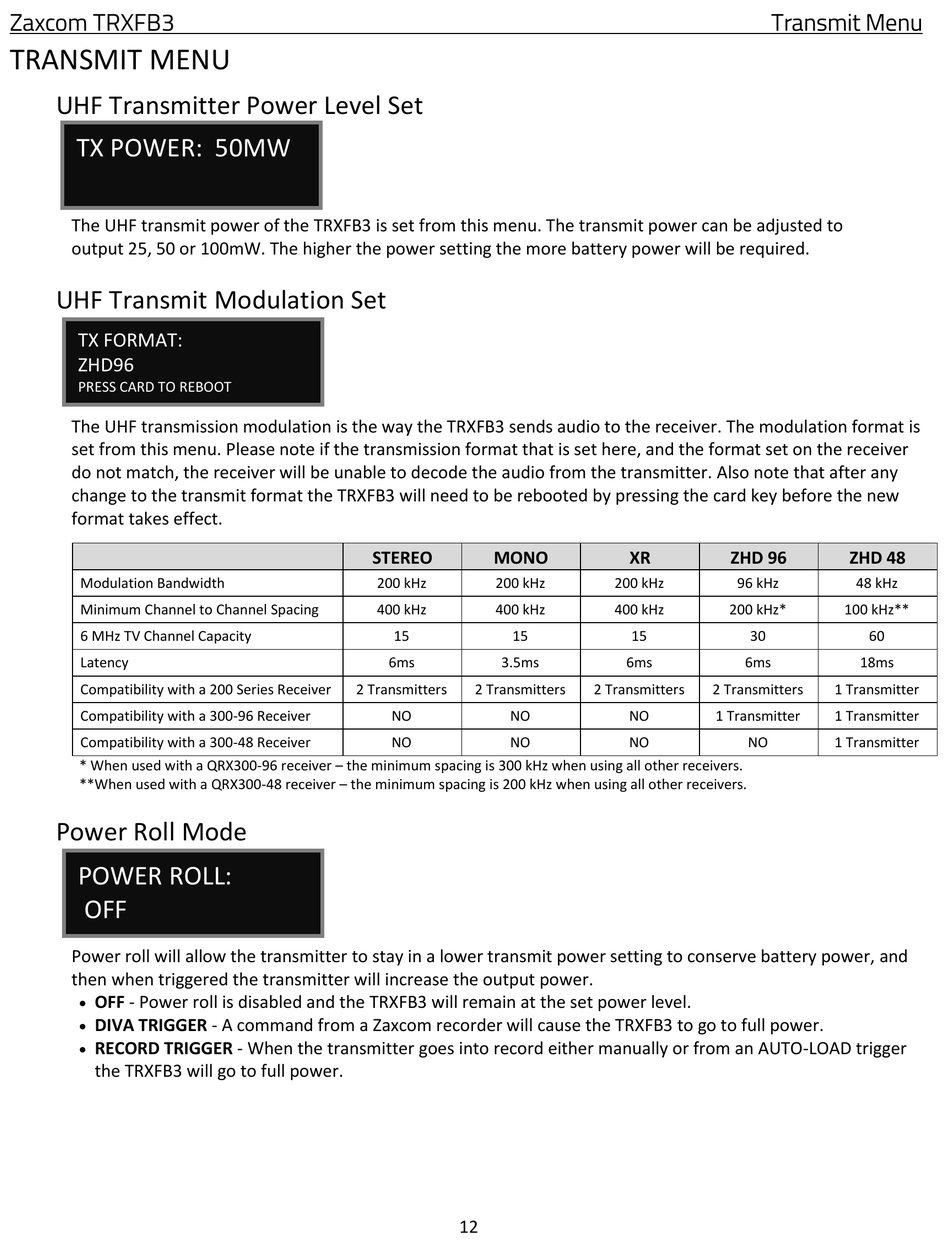

TRANSMIT MENU

UHF Transmitter Power Level Set

TX POWER: 50MW
The UHF transmit power of the TRXFB3 is set from this menu. The transmit power can be adjusted to
output 25, 50 or 100mW. The higher the power setting the more battery power will be required.

UHF Transmit Modulation Set

TX FORMAT:
ZHD96
PRESS CARD TO REBOOT
The UHF transmission modulation is the way the TRXFB3 sends audio to the receiver. The modulation format is
set from this menu. Please note if the transmission format that is set here, and the format set on the receiver
do not match, the receiver will be unable to decode the audio from the transmitter. Also note that after any
change to the transmit format the TRXFB3 will need to be rebooted by pressing the card key before the new
format takes effect.
Modulation Bandwidth
Minimum Channel to Channel Spacing
6 MHz TV Channel Capacity
Latency
Compatibility with a 200 Series Receiver
Compatibility with a 300-96 Receiver
Compatibility with a 300-48 Receiver
* When used with a QRX300-96 receiver – the minimum spacing is 300 kHz when using all other receivers.
**When used with a QRX300-48 receiver – the minimum spacing is 200 kHz when using all other receivers.

Power Roll Mode

POWER ROLL:
OFF
Power roll will allow the transmitter to stay in a lower transmit power setting to conserve battery power, and
then when triggered the transmitter will increase the output power.

OFF - Power roll is disabled and the TRXFB3 will remain at the set power level.

DIVA TRIGGER - A command from a Zaxcom recorder will cause the TRXFB3 to go to full power.

RECORD TRIGGER - When the transmitter goes into record either manually or from an AUTO-LOAD trigger
the TRXFB3 will go to full power.
STEREO MONO
200 kHz 200 kHz
400 kHz 400 kHz
15 15
6ms 3.5ms
2 Transmitters 2 Transmitters
NO NO
NO NO
12
Transmit Menu
XR ZHD 96
200 kHz 96 kHz
400 kHz 200 kHz*
15 30
6ms 6ms
2 Transmitters 2 Transmitters
NO 1 Transmitter
NO NO
ZHD 48
48 kHz
100 kHz**
60
18ms
1 Transmitter
1 Transmitter
1 Transmitter
