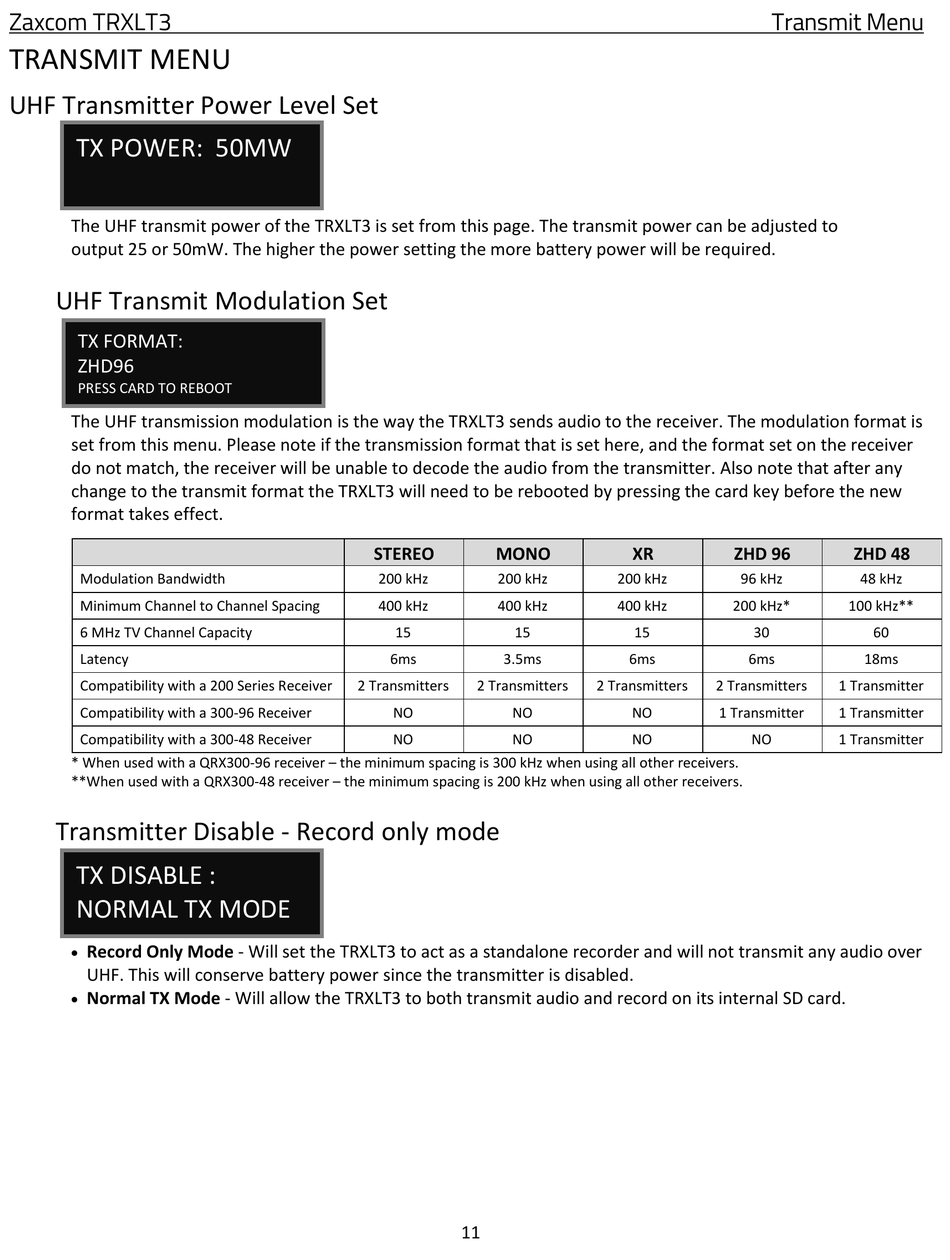

TRANSMIT MENU

UHF Transmitter Power Level Set

TX POWER: 50MW
The UHF transmit power of the TRXLT3 is set from this page. The transmit power can be adjusted to
output 25 or 50mW. The higher the power setting the more battery power will be required.

UHF Transmit Modulation Set

TX FORMAT:
ZHD96
PRESS CARD TO REBOOT
The UHF transmission modulation is the way the TRXLT3 sends audio to the receiver. The modulation format is
set from this menu. Please note if the transmission format that is set here, and the format set on the receiver
do not match, the receiver will be unable to decode the audio from the transmitter. Also note that after any
change to the transmit format the TRXLT3 will need to be rebooted by pressing the card key before the new
format takes effect.
Modulation Bandwidth
Minimum Channel to Channel Spacing
6 MHz TV Channel Capacity
Latency
Compatibility with a 200 Series Receiver
Compatibility with a 300-96 Receiver
Compatibility with a 300-48 Receiver
* When used with a QRX300-96 receiver – the minimum spacing is 300 kHz when using all other receivers.
**When used with a QRX300-48 receiver – the minimum spacing is 200 kHz when using all other receivers.

Transmitter Disable - Record only mode

TX DISABLE :
NORMAL TX MODE

Record Only Mode - Will set the TRXLT3 to act as a standalone recorder and will not transmit any audio over
UHF. This will conserve battery power since the transmitter is disabled.

Normal TX Mode - Will allow the TRXLT3 to both transmit audio and record on its internal SD card.
STEREO MONO
200 kHz 200 kHz
400 kHz 400 kHz
15 15
6ms 3.5ms
2 Transmitters 2 Transmitters
NO NO
NO NO
11
Transmit Menu
XR ZHD 96
200 kHz 96 kHz
400 kHz 200 kHz*
15 30
6ms 6ms
2 Transmitters 2 Transmitters
NO 1 Transmitter
NO NO
ZHD 48
48 kHz
100 kHz**
60
18ms
1 Transmitter
1 Transmitter
1 Transmitter
