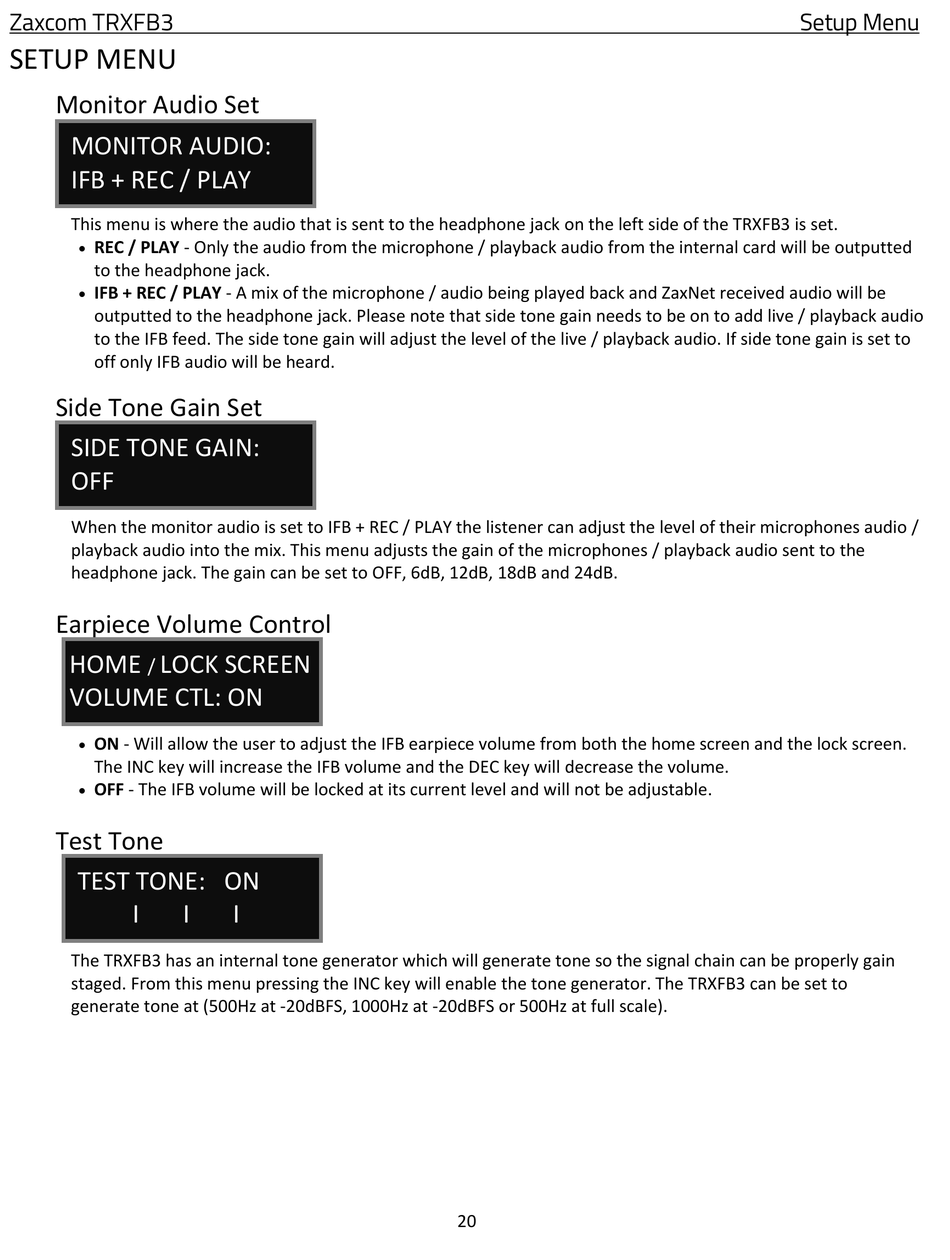

SETUP MENU

Monitor Audio Set

MONITOR AUDIO:
IFB + REC / PLAY
IFB MIX ALL
This menu is where the audio that is sent to the headphone jack on the left side of the TRXFB3 is set.

REC / PLAY - Only the audio from the microphone / playback audio from the internal card will be outputted
to the headphone jack.

IFB + REC / PLAY - A mix of the microphone / audio being played back and ZaxNet received audio will be
outputted to the headphone jack. Please note that side tone gain needs to be on to add live / playback audio
to the IFB feed. The side tone gain will adjust the level of the live / playback audio. If side tone gain is set to
off only IFB audio will be heard.

Side Tone Gain Set

SIDE TONE GAIN:
OFF
When the monitor audio is set to IFB + REC / PLAY the listener can adjust the level of their microphones audio /
playback audio into the mix. This menu adjusts the gain of the microphones / playback audio sent to the
headphone jack. The gain can be set to OFF, 6dB, 12dB, 18dB and 24dB.

Earpiece Volume Control

HOME LOCK SCREEN
/
VOLUME CTL: ON

ON - Will allow the user to adjust the IFB earpiece volume from both the home screen and the lock screen.
The INC key will increase the IFB volume and the DEC key will decrease the volume.

OFF - The IFB volume will be locked at its current level and will not be adjustable.

Test Tone


TEST TONE: ON

I I


The TRXFB3 has an internal tone generator which will generate tone so the signal chain can be properly gain
staged. From this menu pressing the INC key will enable the tone generator. The TRXFB3 can be set to
generate tone at (500Hz at -20dBFS, 1000Hz at -20dBFS or 500Hz at full scale).
I
20
Setup Menu
