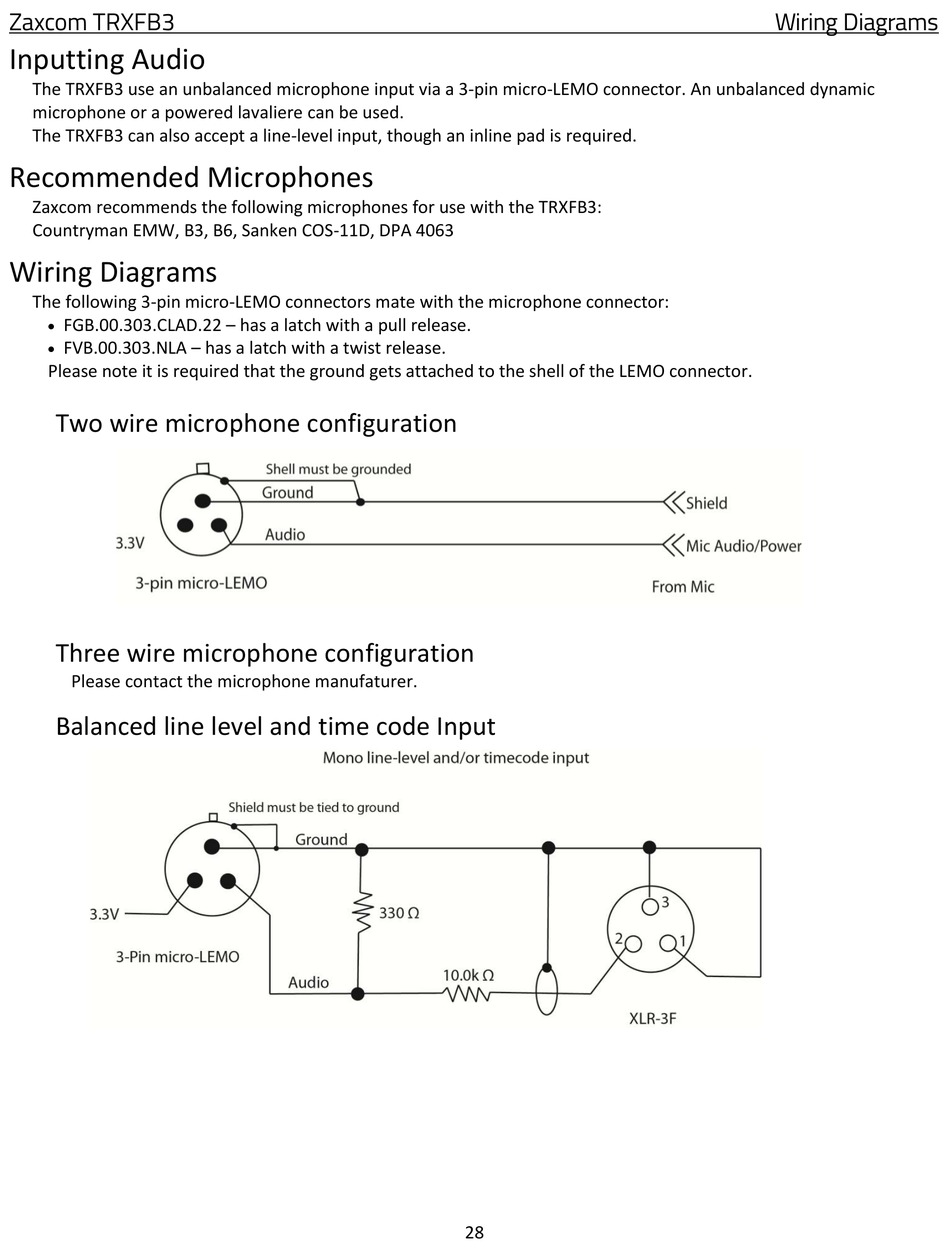

Inputting Audio

The TRXFB3 use an unbalanced microphone input via a 3-pin micro-LEMO connector. An unbalanced dynamic
microphone or a powered lavaliere can be used.
The TRXFB3 can also accept a line-level input, though an inline pad is required.

Recommended Microphones

Zaxcom recommends the following microphones for use with the TRXFB3:
Countryman EMW, B3, B6, Sanken COS-11D, DPA 4063

Wiring Diagrams

The following 3-pin micro-LEMO connectors mate with the microphone connector:

FGB.00.303.CLAD.22 – has a latch with a pull release.

FVB.00.303.NLA – has a latch with a twist release.
Please note it is required that the ground gets attached to the shell of the LEMO connector.

Two wire microphone configuration

Three wire microphone configuration

Please contact the microphone manufaturer.

Balanced line level and time code Input

28
