5 Operation

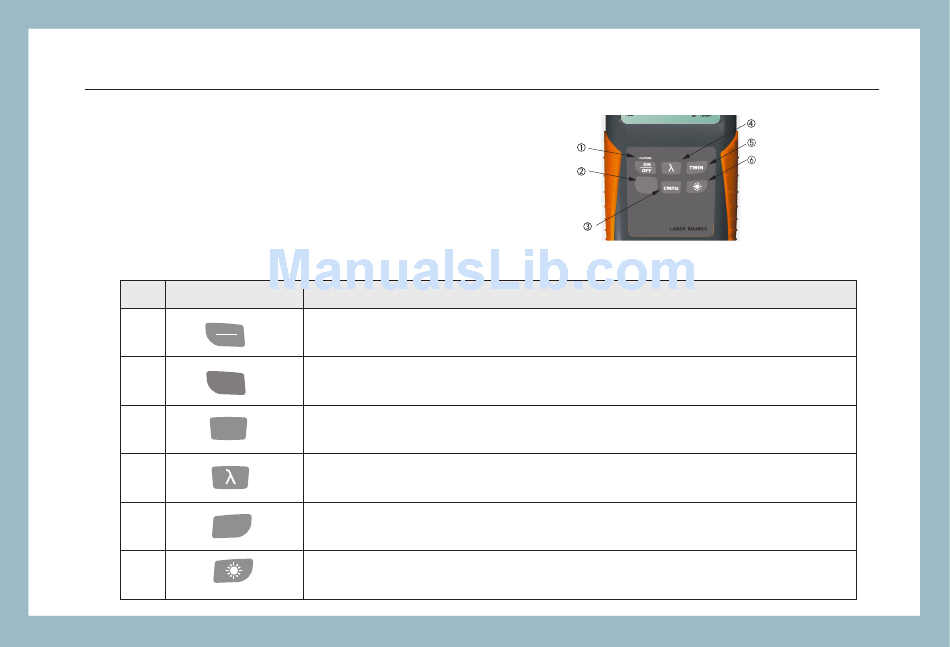

5.1 Display and controls

5.1.1 Front(Panel Board)
No. Key
>2s PERM
1
ON
OFF
2
S/M
3
CW/Hz
4
5
TWIN
6
Function
Switches Instrument on/off. Long keypress while powering on to
activate the instrument without Auto-off function.
SHIFT: Switch between Single Mode and Multimode
Modulated Wavelength Shifting Key: Switches modulated wavelength
and continuous wavelength.
Wavelength Shifting Key: Switches working wavelength between
1310 nm/1550 nm (CH1),1490nm and 1625nm (CH2).
SINGLE: Auto-wavelength recognition is off.
TWIN: Auto-wavelength recognition is on.
Switches backlighting on/off.
6
AD2Q02F /
Operation
