6 Close the 12-Port 100BASE-TX Workgroup FastModule ejectors
(Figure 3-3).
Opened
ejector

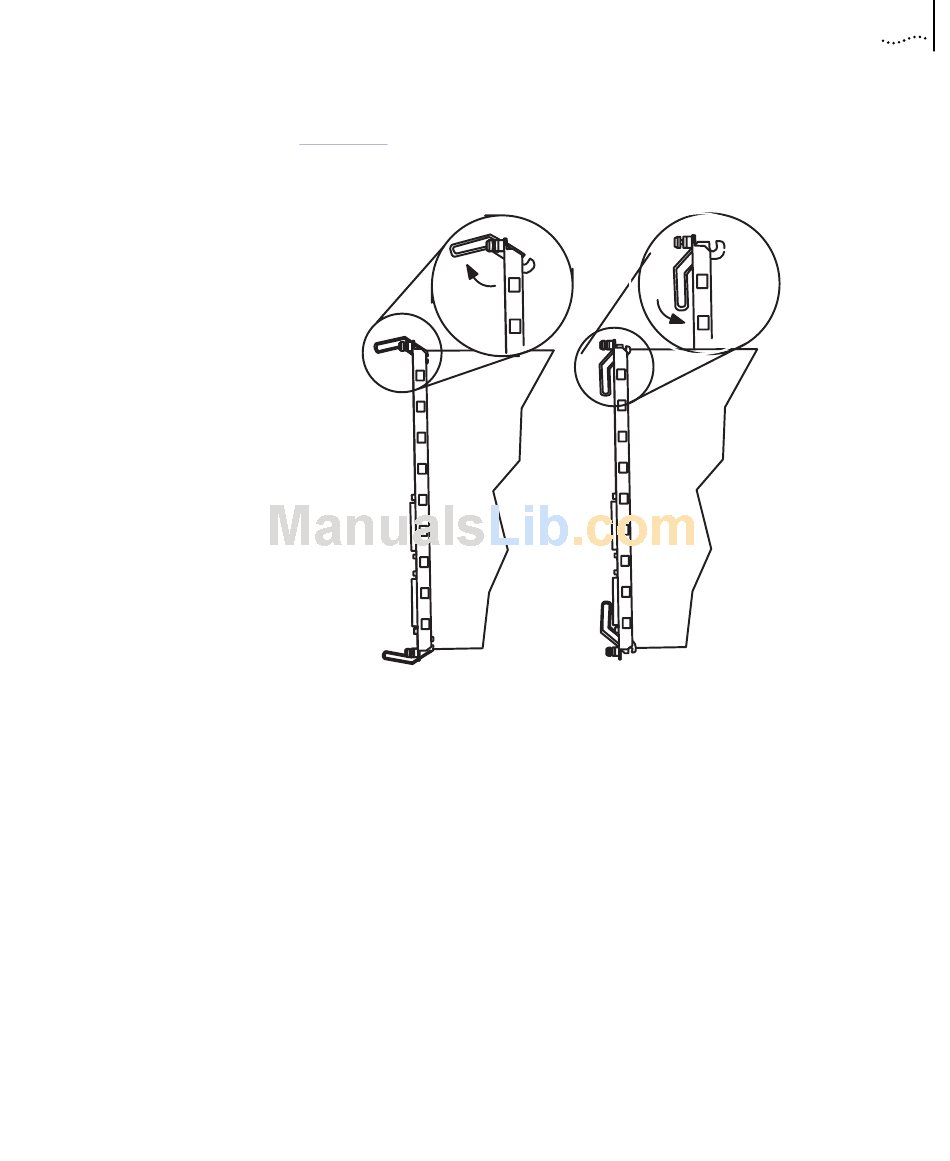

Figure 3-3 Opened and Closed Module Ejectors
7 Using your fingers, fasten the spring-loaded screws on the front of the
12-Port 100BASE-TX Workgroup FastModule faceplate to the hub (do
not overtighten).
8 Attach the RJ-45 cable connectors to the RJ-45 connectors on the front
of the module.
Installing the Module
Closed
ejector
