3-8

NSTALLING THE

ODULE

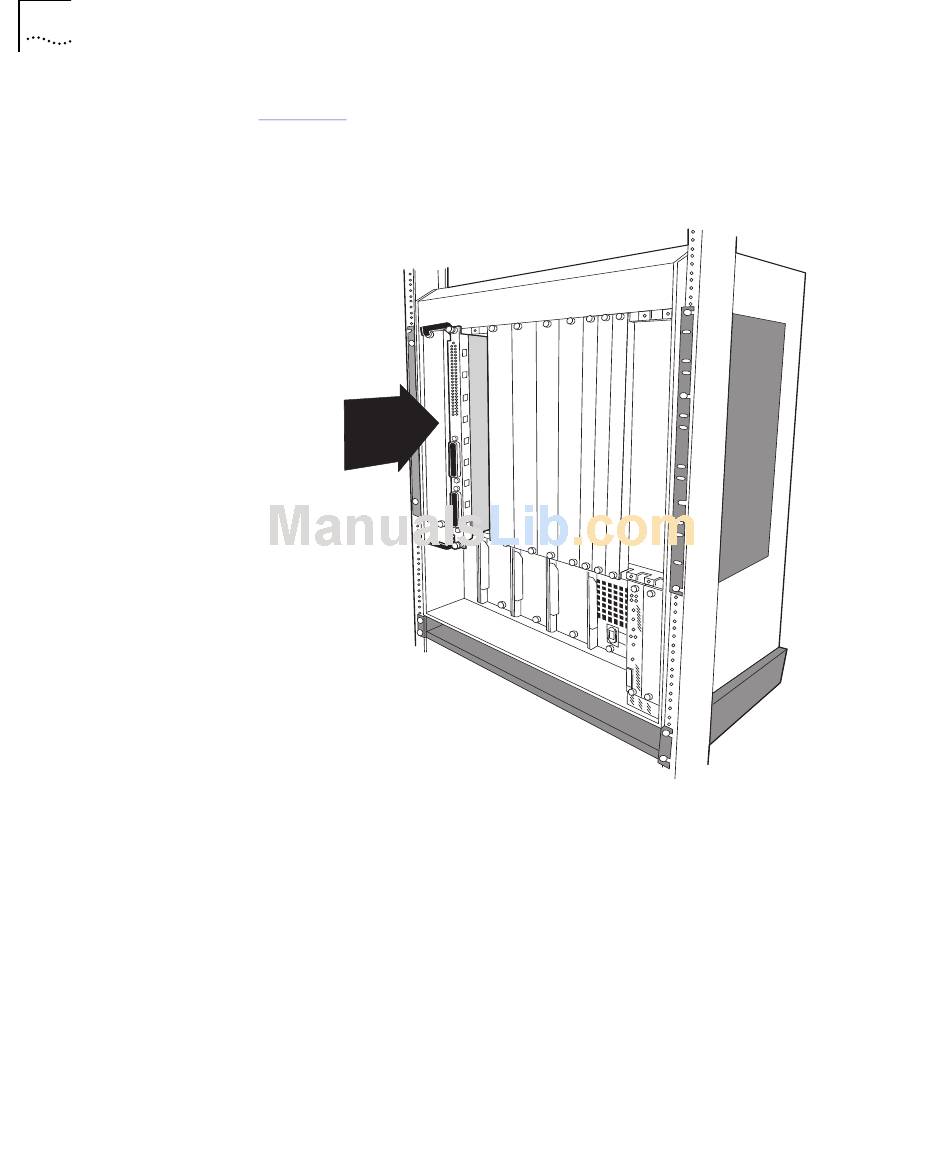

Figure 3-2

shows the installation of a CoreBuilder 5000 module (The

module in the diagram is only a representation of a CoreBuilder 5000

module, not the 100BASE-TX module).

Figure 3-2

Installing a CoreBuilder 5000 Module

5 Insert the module into the board guides at the top and bottom of the

slot and slide it into the hub by pressing firmly at the top and bottom

of the faceplate.
