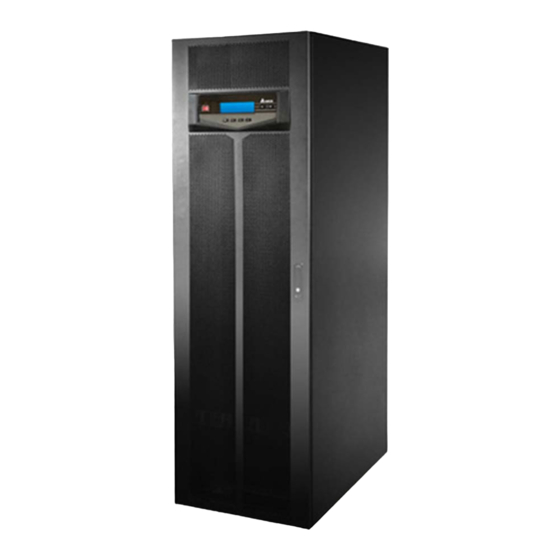

Delta HPH-60K User Manual

Delta HPH-60K User Manual

Ultron hph series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
The power behind competitiveness
Delta UPS - Ultron Family
HPH Series, Three Phase
60/80/100/120 kVA
User Manual
www.deltapowersolutions.com

Advertisement

Table of Contents
loading

Related Manuals for Delta HPH-60K

Summary of Contents for Delta HPH-60K

  • Page 1 The power behind competitiveness Delta UPS - Ultron Family HPH Series, Three Phase 60/80/100/120 kVA User Manual www.deltapowersolutions.com...
  • Page 2 (“Manual”), including but not limited to the contents, information, and figures are solely owned and reserved by Delta Electronics Inc. (“Delta”). The Manual can only be applied to the operation or the extraction, or usage of this Manual in whole or in part is prohibited without the prior written permission of Delta.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents Chapter 1 : Important Safety Instructions ------------------------------------------1 Placement Warnings ---------------------------------------------------------------- 1 Connection Warnings --------------------------------------------------------------- 1 Usage Warnings --------------------------------------------------------------------- 1 Storage Warnings ------------------------------------------------------------------- 2 Glossary of Symbols ---------------------------------------------------------------- 3 Standard Compliance -------------------------------------------------------------- 4 Chapter 2 : Introduction ------------------------------------------------------------------5 Product Introduction ---------------------------------------------------------------- 5 Package Inspection ----------------------------------------------------------------- 5 Functions and Features ------------------------------------------------------------ 7...
  • Page 4 7.1.1 Normal Mode Start-up Procedures (Single) ---------------------53 7.1.2 Battery Mode Start-up Procedures (Single) ---------------------53 7.1.3 Bypass Mode Start-up Procedures (Single) ---------------------53 7.1.4 Manual Bypass Mode Start-up Procedures (Single Unit) ----54 7.1.5 Normal Mode Turn-off Procedures (Single) ---------------------55 7.1.6 Battery Mode Turn-off Procedures (Single) ----------------------55 7.1.7 Bypass Mode Turn-off Procedures (Single) ---------------------56 7.1.8...

  • Page 5: Chapter 1 : Important Safety Instructions

    Chapter 1 Important Safety Instructions Chapter 1 : Important Safety Instructions Placement Warnings Install the UPS in a well-ventilated indoor area, away from excess moisture, heat, dust, Leave adequate space around all sides of the UPS for proper ventilation. Please refer to 6.2 Installation Environment.

  • Page 6: Storage Warnings

    The length of the communication cable must be less than 10 meters. If it is longer than 10 meters, please contact service personnel. Do not put beverage containers on the UPS, battery cabinet or any other accessory asso- ciated with the UPS. The risk of dangerous high voltage is possible when the batteries are still connected to the UPS even though the UPS is disconnected from the mains.

  • Page 7: Glossary Of Symbols

    Chapter 1 Important Safety Instructions Glossary of Symbols Symbol Description ON key OFF key Goes back to previous screen or cancels current selection. Moves down/ Decreases number. Moves up/ Increases number. EPO key R phase of AC Input/ Bypass Input/ UPS Output S phase of AC Input/ Bypass Input/ UPS Output T phase of AC Input/ Bypass Input/ UPS Output Neutral line of AC Input/ Bypass Input/ UPS Output/ Battery...

  • Page 8: Standard Compliance

    Standard Compliance This product meets the following safety standards and electromagnetic compatibility (EMC) IEC62040-1 GB7260.2-2009/ IEC62040-2 C3 GB17626-2/ IEC61000-4-2 (ESD) Level 4 GB17626-3/ IEC61000-4-3 (Radiated Field) Level 3 GB17626-4/ IEC61000-4-4 (EFT) Level 4 GB17626-5/ IEC61000-4-5 (Surge) Level 4 Ultron HPH Series UPS...

  • Page 9: Chapter 2 : Introduction

    Chapter 2 Introduction Chapter 2 : Introduction Product Introduction The HPH series UPS is a three-phase four-wire online uninterruptible power supply which provides reliable and stable sine-wave power to your electronic devices. The UPS applies the latest design of DSP digital control technology and highest quality assembly, with an output safe, reliable and uninter-rupted power to your sensitive electronic equipment at all times, but four different rated power levels, 60kVA, 80kVA, 100kVA and 120kVA, for your selection.
  • Page 10 3. The UPS package contains the following items. Please check if any items are missing. NORMAL BATTERY BYPASS FAULT NORMAL BATTERY BYPASS FAULT (60/ 80kVA) (100/ 120kVA) Item Q’ty 1 PC Test Card 1 PC Software CD-UPSentry 2012 1 PC 1 Set (two copies placed inside the UPS cabinet) User Manual...

  • Page 11: Functions And Features

    Chapter 2 Introduction Functions and Features The HPH series UPS is designed for systems with medium power. It provides clean power supply to data systems, communication systems, computer network systems, medical treatment systems, monitoring systems, factory equipment, etc. The HPH series UPS utilizes all digital high frequency modulation technology, which decreases volume, improves reliability and prolongs service life.
  • Page 12 Automatically detects and shows whether fans are operating normally. The fans have automatic speed regulation function. With multi-stage control over the fan prolong the service life of the fans. Provides boost charge and float charge. You can adjust the charge current from 2A to the maximum (please refer to 6.6 External Battery Cabinet Connection Precautions).

  • Page 13: Chapter 3 : Appearance And Mechanism

    Chapter 3 Appearance and Mechanism Chapter 3 : Appearance and Mechanism Appearance and Dimensions 1760 1175 (Figure 3-1: 60/ 80kVA UPS (Figure 3-2: 100/ 120kVA UPS Appearance and Dimensions) Appearance and Dimensions)

  • Page 14: Control Panel

    On the front of the UPS, there is a control panel and a lockable door switch. Please refer to Figure 3-3 for how to open the UPS’s front door. NORMAL BATTERY BYPASS FAULT (Push) (Figure 3-3: Open the Front Door) Control Panel NORMAL BATTERY...
  • Page 15 Chapter 3 Appearance and Mechanism Item Description It indicates that the UPS is operating in online mode and the utility AC power is normal. It indicates that the UPS is operating in battery mode and the external batteries are discharging. It indicates that the UPS has abnormalities.

  • Page 16: Front/ Rear Panel

    Front/ Rear Panel Open the UPS’s front door, remove the front and real panels, and you will see the internal mechanisms. 60kVA Model (Front Panel) (Rear Panel) PARALLEL SMART SLOT PARALLEL PARALLEL RS-232 SWITCH EXT. BATTERY CHARGER INPUT DRY OUTPUT DRY REPO TEMP DETECTION...
  • Page 17 Chapter 3 Appearance and Mechanism 80kVA Model (Front Panel) (Rear Panel) PARALLEL SMART SLOT PARALLEL PARALLEL RS-232 SWITCH EXT. BATTERY CHARGER INPUT DRY OUTPUT DRY REPO MINI SLOT TEMP DETECTION CONTACT CONTACT INPUT BREAKER BYPASS BREAKER MANUAL BYPASS BREAKER OUTPUT BREAKER 240V DC 240V DC BATTERY INPUT...
  • Page 18 100/120kVA Model (Front Panel) (Rear Panel) PARALLEL SMART SLOT PARALLEL PARALLEL RS-232 SWITCH EXT. BATTERY CHARGER INPUT DRY OUTPUT DRY REPO TEMP DETECTION CONTACT CONTACT MINI SLOT INPUT BREAKER BYPASS BREAKER MANUAL BYPASS BREAKER OUTPUT BREAKER 240V DC 240V DC BATTERY INPUT AC INPUT BYPASS INPUT...
  • Page 19 Chapter 3 Appearance and Mechanism Item Description Input Breaker Controls the UPS’s input breaker and for safety protection. AC Input Terminal Connects the main AC source. Block For the UPS grounding. Casters The casters are designed for a short distance movement only. Do not use the casters to move the UPS over a long distance.
  • Page 20 Item Description Battery Input Connects an external battery cabinet. Terminal Block Parallel Switch Controls parallel ports' status (ON or OFF). For detailed information, please refer to Chapter 5: Communication Interfaces. RS-232 Port Connects to a computer. For detailed information, please refer to Chapter 5: Communication Interfaces.

  • Page 21: Chapter 4 : Operation Modes

    Chapter 4 Operation Modes Chapter 4 : Operation Modes Online Mode The critical load is supplied by the inverter, which derives its power from the utility AC power, and the UPS charges the batteries as needed and provides power protection to the equipment. During on-line mode, the NORMAL LED indicator ( ) illuminates (green).
  • Page 22 ECO Mode You can manually set the UPS into ECO mode. In ECO mode, when the input voltage is within the indicator ( and the NORMAL LED indicator ( ) illuminates (green). BYPA. LOAD Rectifier Inverter MAIN Batteries (Figure 4-3: Path of Electrical Power through the UPS in ECO Mode) Battery Mode When the UPS is operating during a power outage, the batteries provide DC power, which maintains inverter operation to support the critical load.
  • Page 23 Chapter 4 Operation Modes Table 4-1: The battery status is as follows Battery Capacity Buzzer LCD Display The alarm beeps once every 10 BATTERY CAPACITY Full/ Mid seconds. (ON for 0.1 second and OFF 00V/ 000 for 9.9 seconds) The alarm beeps once every 0.5 BATTERY CAPACITY second.
  • Page 24 Converter Mode When the UPS is manually set in converter mode, the output frequency can be set as 50Hz or 60Hz. After the output frequency is set up, the system will automatically disable the bypass function. Please note that once the inverter shuts down, there is no bypass output. During converter mode, the NORMAL LED indicator ( ) illuminates (green).

  • Page 25: Chapter 5 : Communication Interfaces

    Chapter 5 Communication Interfaces Chapter 5 : Communication Interfaces For the positions and functions of the communication interfaces, please refer to the following descrip- tion. (100/ 120kVA Rear Panel) PARALLEL SMART SLOT PARALLEL PARALLEL RS-232 SWITCH EXT. BATTERY CHARGER INPUT DRY OUTPUT DRY TEMP DETECTION...
  • Page 26 The RS-232 port is built into the UPS rear panel to provide communication between the UPS and a computer. It also provides dry contact functions to output the UPS status. You can use the Delta 1. Monitors the load level, battery status, battery voltage, UPS operation mode, input voltage, input frequency, output voltage, and UPS temperature.
  • Page 27 Do not use the RS-232 port and the USB port at the same time. MINI Slot This MINI slot is for mini cards. You can install a Delta Mini SNMP, Mini Relay I/O, Mini USB, Mini ModBus, or Mini TVSS card in this slot to give the system network communication, dry contact, USB communication, ModBus communication, and surge protection functions respectively.
  • Page 28 Charger Detection Port The charger detection port is used to connect with an external charger box. Via this port, the UPS can detect the operating status of the external charger box and control its switch. REPO Port The REPO port is for remote emergency shutdown. When an emergency event occurs, it can shown as follows.

  • Page 29: Output Dry Contacts

    Chapter 5 Communication Interfaces Figure 5-9 shows the 2 2K(1206) 2K(1206) +12VSF 2K(1206) 2K(1206) Output Dry Contacts DRY F_NO +12VS COMM_F DRY 6 DRY E_NO +12VS COMM_E DRY 5 DRY D_NO +12VS COMM_D DRY 4 DRY C_NO +12VS Pin 1 2 3 4 5 6 7 8 9 10 11 12 COMM_C DRY 3 DRY B_NO...
  • Page 30 The HPH UPS provides six sets of programmable output dry contacts for you to receive UPS events. The output dry contacts are normally open. There are eighteen events for you to select, and you can choose six of them to set up the output dry contacts. Please refer to the table below. Event Description Load on inverter...
  • Page 31 Chapter 5 Communication Interfaces Event Description Battery needs Battery replacement date is due. replacement Bypass over temperature Bypass static switch temperature is too high. warning/ shutdown Bypass static switch fail The bypass static switch has open/ short issue. Over temperature fail When the UPS temperature is out of range.

  • Page 32: Chapter 6 : Installation And Wiring

    Only authorized Delta engineers or service personnel can perform installation and maintenance. If you want to install the UPS by yourself, installation must be under the supervision of authorized Delta engineers or service personnel. If you use a forklift weight of the UPS, please refer to Installation Environment Install the UPS indoors.

  • Page 33: Ups Transportation & Handling

    Chapter 6 Installation and Wiring UPS Transportation & Handling There are four casters at the bottom of the UPS. Please pay attention to the movement of the casters to avoid accidents when you remove the UPS from its pallet. The casters are designed to move on level ground.
  • Page 34 (Front) Casters 56.2 447.6 M10 Screw Hole (Rear) (Figure 6-2: UPS Cabinet Fixing Hole Diagram) Installation with the Balance Supports Reinstall the balance supports (that have been removed from the UPS during the unpacking process) on the UPS. Please refer to the following procedures. After you decide the installation area, follow Figure 6-3 to drill holes on the instal- lation ground.
  • Page 35 Chapter 6 Installation and Wiring Move the UPS on the installation ground that you have drilled holes, use the lev- elers to stabilize the UPS on the ground and use the M8 screws to reinstall the balance supports (that have been removed from the UPS during the unpacking M8 Screw Balance Supports (Figure 6-4: Balance Support Installation)

  • Page 36: Wiring

    Wiring 6.5.1 Precautions Prior to Wiring the UPS by yourself, installation must be under the supervision of authorized Delta engi- neers or service personnel. Before wiring or making any electrical connection, make sure the power supplied to the input and output of the UPS is completely cut off.
  • Page 37 Chapter 6 Installation and Wiring When connecting the UPS to the critical loads, you must install a 3-pole EN 60947-2 cer- Suggested Protective Device 60kVA D-Curve 125A Circuit Breaker 80kVA D-Curve 160A Circuit Breaker 100kVA D-Curve 200A Circuit Breaker 120kVA D-Curve 225A Circuit Breaker Check that the size, diameter, phase, and polarity of each cable that needs connecting please refer to Table 6-1.
  • Page 38 60kVA 80kVA 100kVA 120kVA Battery Battery current at full load with battery nominal 145A 189A 251A 290A voltage 2V/ cell Recommended cable 50mm 70mm 120mm 150mm size * (+/ -/ N/ PE) Maximum cable size 70mm 95mm 185mm 185mm (+/ -/ N/ PE) Cable lug width 24mm 30mm...

  • Page 39: 6.5.2 Single Unit Wiring

    Chapter 6 Installation and Wiring The grounding cable of the external battery cabinet must be connected to the ( ) termi- nal of the battery terminal block. The UPS default setting is single input. If there is an intention to change the UPS into dual Please check whether the electric potential of the neutral line (N) of the bypass source is the same as that of the neutral line (N) of the main AC source.
  • Page 40 (Front) (Rear) INPUT BREAKER BYPASS BREAKER MANUAL BYPASS OUTPUT BREAKER BREAKER 240V DC 240V DC BATTERY INPUT AC INPUT BYPASS INPUT UPS OUTPUT AC INPUT BYPASS INPUT UPS OUTPUT AC INPUT BYPASS INPUT UPS OUTPUT 240V DC 240V DC BATTERY INPUT AC INPUT BYPASS INPUT UPS OUTPUT...
  • Page 41 Chapter 6 Installation and Wiring (Front) (Rear) INPUT BREAKER BYPASS BREAKER MANUAL BYPASS BREAKER OUTPUT BREAKER 240V DC 240V DC BATTERY INPUT AC INPUT BYPASS INPUT UPS OUTPUT INPUT BREAKER BYPASS BREAKER MANUAL BYPASS BREAKER OUTPUT BREAKER 240V DC 240V DC BATTERY INPUT AC INPUT BYPASS INPUT...
  • Page 42 (Front) (Rear) INPUT BREAKER BYPASS BREAKER MANUAL BYPASS BREAKER OUTPUT BREAKER 240V DC 240V DC BATTERY INPUT AC INPUT BYPASS INPUT UPS OUTPUT INPUT BREAKER BYPASS BREAKER MANUAL BYPASS BREAKER OUTPUT BREAKER 240V DC 240V DC BATTERY INPUT AC INPUT BYPASS INPUT UPS OUTPUT (Figure 6-8: 100/ 120kVA Model - Wiring Terminal Block)
  • Page 43 Chapter 6 Installation and Wiring Please ensure you understand the functions of the wiring terminal block shown in Figure 6-6~6-8. Item Function Description Includes one grounding For the UPS grounding terminal. AC Input Connects the main AC Includes three-phase (R, S, T) Terminal Block source.
  • Page 44 (Front) (Rear) INPUT BREAKER BYPASS BREAKER MANUAL BYPASS OUTPUT BREAKER BREAKER 240V DC 240V DC BATTERY INPUT AC INPUT BYPASS INPUT UPS OUTPUT AC INPUT BYPASS INPUT UPS OUTPUT For the UPS grounding For the critical loads’ grounding ( 3-pole For the external 3-pole 3-pole...
  • Page 45 Chapter 6 Installation and Wiring (Front) (Rear) INPUT BREAKER BYPASS BREAKER MANUAL BYPASS BREAKER OUTPUT BREAKER 240V DC 240V DC BATTERY INPUT AC INPUT BYPASS INPUT UPS OUTPUT For the UPS For the critical grounding loads’ grounding ( 3-pole For the external 3-pole 3-pole protective...
  • Page 46 Dual Input (Single Unit) When there are two AC power sources, single unit wiring procedures are as follows. Please follow steps stated in section Single Input (Single Unit). Ensure that the input breaker and bypass breaker are in the OFF position. According to the capacity and the model of your UPS, select proper input and output cables.
  • Page 47 Chapter 6 Installation and Wiring (Front) (Rear) INPUT BREAKER BYPASS BREAKER MANUAL BYPASS BREAKER OUTPUT BREAKER 240V DC 240V DC BATTERY INPUT AC INPUT BYPASS INPUT UPS OUTPUT For the UPS For the critical loads’ grounding ( grounding 3-pole 3-pole 3-pole 3-pole For the external...

  • Page 48: 6.5.3 Parallel Units Wiring

    6.5.3 Parallel Units Wiring NOTE: Prior to wiring, please read 6.5.1 Precautions Prior to Wiring Single Input (Parallel Units) When there is only one AC power source, parallel unit's wiring procedures are as follows. Please follow steps stated in section Single Input (Single Unit). Connect the main AC source/ output/ external battery cabinet cables to the wiring terminal block (please refer to Figures 6-9~6-11/ 6-15).
  • Page 49 Chapter 6 Installation and Wiring AC Input UPS Output Daisy Chain Connection Parallel Port Parallel Port UPS 1 AC Input UPS Output 3Ø4W 3Ø4W LOAD Parallel Port Parallel Port UPS 2 UPS Output AC Input Parallel Port Parallel Port UPS 4 (Figure 6-15: Parallel Units Single Input Wiring Diagram) Dual Input (Parallel Units) When there are two AC power sources, parallel units’...
  • Page 50 NOTE: Regarding Figure 6-12~6-14 the TN system and a 3-pole protective device is installed between the UPS and the utility AC power. If your utility AC power is the TT system, please install a 4-pole protective device between the UPS and the utility AC power. Use the provided parallel cable to connect the parallel ports on the parallel units.

  • Page 51: External Battery Cabinet Connection Precautions

    Chapter 6 Installation and Wiring AC Input UPS Output Daisy Chain Connection Bypass Input Parallel Port 3Ø4W Main Parallel Port UPS 1 Source AC Input UPS Output Second 3Ø4W 3Ø4W Source Bypass Input LOAD Parallel Port (for Bypass) Parallel Port UPS 2 AC Input UPS Output...
  • Page 52 2. Charge Current Default Minimum Maximum 10A (can be expanded to 20A according to 60kVA customer’s requirement) 80kVA 100kVA 20A (can be expanded to 40A according to customer’s requirement) 120kVA NOTE: 1. You can adjust the charge current from 2A to the maximum. Each adjustment level is 0.5A.
  • Page 53 NOTE: 1. The above-mentioned DC fuse and DC circuit breaker are optional. If you want to buy any of them, please contact Delta service personnel. 2. If you need to parallel multiple units of external battery cabinets, please contact Delta service personnel for relevant information.
  • Page 54 (4) local electrical regulations. If you have any questions about the external battery cabinet’s protective device, please contact Delta service personnel. Please refer to Figure 6-18 Figure 6-20 for the installation of the external battery cabi- net’s protective device.
  • Page 55 Chapter 6 Installation and Wiring External Battery Cabinet 3-Pole DC Circuit Breaker (Figure 6-20: Installation of a 3-Pole DC Circuit Breaker) The parallel UPSs can connect with common batteries. WARNING: A battery can present a risk of electric shock and high short-circuit current. Servicing of batteries and battery cabinets must be performed or supervised by required precautions.

  • Page 56: Chapter 7 : Ups Operation

    Chapter 7 : UPS Operation NOTE: 1. Before operation, please read this user manual thoroughly. 2. Before 1 start-up of the UPS, please make sure that each wiring is correct and the voltage difference between the Neutral (N) and the Ground ( 3.

  • Page 57: Single Unit Operation Procedures

    Chapter 7 UPS Operation Single Unit Operation Procedures 7.1.1 Normal Mode Start-up Procedures (Single) Before start-up, ensure that each breaker (including every external battery cabinet’s breaker) is in the OFF position. Turn on each external battery cabinet’s breaker. Turn on the output breaker. For single input, please turn on the input breaker.

  • Page 58: Manual Bypass Mode Start-Up Procedures (Single Unit)

    7.1.4 Manual Bypass Mode Start-up Procedures (Single Unit) WARNING: 1. Please note that you can only turn on the Manual Bypass Breaker when the UPS needs maintenance. This ensures that the supply of power to the critical loads will continue. If you turn on the Manual Bypass Breaker during normal mode, the inverter will shut down, the UPS will transfer from normal mode to manual bypass mode, and the output won’t be protected.

  • Page 59: Normal Mode Turn-Off Procedures (Single)

    Chapter 7 UPS Operation Turn off the manual bypass breaker. Press the ON key ( After the NORMAL LED indicator ( ) illuminates, it means that the start- up procedures from manual bypass mode to normal mode are completed. 7.1.5 Normal Mode Turn-off Procedures (Single) Execution of the following procedures will cut off all power supply.

  • Page 60: Bypass Mode Turn-Off Procedures (Single)

    7.1.7 Bypass Mode Turn-off Procedures (Single) Execution of the following procedures will cut off all power supply. Before execution, please make sure that all connected critical loads have been safely shut down. For single input, please turn off the input breaker. For dual input, please turn off the input breaker and bypass breaker.

  • Page 61: Battery Mode Start-Up Procedures (Parallel)

    Chapter 7 UPS Operation For single input, please turn on each UPS’s input breaker. For dual input, please turn on each UPS’s input breaker and bypass breaker. Make sure that each UPS runs in bypass mode and each UPS’s BYPASS LED indica- tor ( ) illuminates.

  • Page 62: Manual Bypass Mode Start-Up Procedures (Parallel)

    7.2.4 Manual Bypass Mode Start-up Procedures (Parallel) WARNING: 1. Please note that you can only turn on the Manual Bypass Breaker when the UPS needs maintenance. This ensures that the supply of power to the critical loads will continue. If you turn on the Manual Bypass Breaker during normal mode, the inverter will shut down, the UPS will transfer from normal mode to manual bypass mode, and the output won’t be protected.

  • Page 63: Normal Mode Turn-Off Procedures (Parallel)

    Chapter 7 UPS Operation From Manual Bypass Mode to Normal Mode (Parallel) Turn on each UPS’s external battery cabinet’s breaker. Turn on each UPS’s output breaker. For single input, please turn on each UPS’s input breaker. For dual input, please turn on each UPS’s input breaker and bypass breaker.

  • Page 64: Bypass Mode Turn-Off Procedures (Parallel)

    Turn off the UPS’s output breaker. Ensure that the UPS’s DC BUS voltage drops to below 20V. After the UPS that you want to shut down completes the discarding process, the UPS’s LCD display will be off. Turn off the UPS’s external battery cabinet’s breaker. 7.2.7 Bypass Mode Turn-off Procedures (Parallel) If you want to shut down one of the parallel UPSs, please follow the procedures below.

  • Page 65: Chapter 8 : Lcd Display And Settings

    Chapter 8 LCD Display and Settings Chapter 8 : LCD Display and Settings LCD Display Hierarchy (Level 1) (Level 1) (Level 1) ALARM/ FAULT PARALLEL SCREEN MAIN SCREEN INFORMATION (Level 2) MAIN MENU (Level 3) (Level 3) MEASURE MAINTENANCE (Level 4) (Level 4) MODEL NAME MAINS...

  • Page 66: Main Screen

    Main Screen After initialization, the LCD will show current UPS status diagram as follows. The system shows different screens depending on the status of the UPS. There are six statuses, and each is called Main Screen. Please see below for further information. The six statuses of the UPS shown in the LCD display are as follows.

  • Page 67: Parallel Screen

    Chapter 8 LCD Display and Settings When the screen above appears, it means that the UPS is in normal mode. When the screen above appears, it means that the UPS is in battery mode. When the screen above appears, it means that the UPS is in manual bypass mode. Before maintenance, do not forget to switch the UPS into manual bypass mode, cut off the main AC source and battery power, and turn off the output breaker.

  • Page 68: Main Menu

    Main Menu In a Main Screen, press the function key ( ) to enter into the Main Menu shown below. MEASURE Check the UPS’s mains, bypass, inverter, output, battery, temperature and DC BUS readings. MAINTENANCE time clock, control & test, and language setup. User can set up the last two items. Ultron HPH Series UPS...

  • Page 69: Measure

    Chapter 8 LCD Display and Settings Measure Route: Main Screen Main Menu Measure Use the function keys ( ) and ( ) to check the UPS’s mains, bypass, inverter, output, battery, temperature and DC BUS readings. Please refer to the charts below. ℃...

  • Page 70: Maintenance

    Maintenance Route: Main Screen Main Menu Maintenance Use the function keys ( ) and ( ) to check the UPS’s model name, serial number, User can set up the last two items. Please see below for detailed information. Model Name Route: Main Screen Main Menu Maintenance...
  • Page 71 Chapter 8 LCD Display and Settings Statistics Route: Main Screen Main Menu Maintenance 2.4 Statistics 1. RUN TIME (DD HH: MM: SS): The UPS’s total running time. 2. ON BAT COUNTS: How many times the UPS runs in battery mode. 3.
  • Page 72 Control & Test Route: Main Screen Main Menu Maintenance 2.7 Control & Test 1. BATT TEST: Enable or disable battery test. Three are three choices, ABORT, DEEP or 10 SEC. 2. BEEP ENABLE: Enable or disable buzzer. 3. COMMON BATT: Enable or disable the function of common battery. 4.

  • Page 73: Chapter 9 : Optional Accessories

    Chapter 9 Optional Accessories Chapter 9 : Optional Accessories There are several optional accessories available for this HPH series UPS. Please refer to the table below for the optional accessories and their descriptions. Item Function Dust Filter Prevents dust from entering into the UPS to ensure UPS reliability and to prolong product life.

  • Page 74: Chapter 10 : Maintenance

    Chapter 10 : Maintenance into the UPS to avoid overheating. If necessary, use an air-gun to clean the slits and openings to prevent any object from blocking or covering these areas. 1) Whether the UPS, LEDs, and alarm function are operating normally. 2) Whether the UPS works in bypass mode (normally, the UPS will work in normal mode).

  • Page 75: Chapter 11 : Troubleshooting

    Chapter 11 Troubleshooting Chapter 11 : Troubleshooting Alarm Message Possible Cause Solution SHORT CIRCUIT Output has a short circuit issue. Contact service personnel. INVERTER FAIL Inverter is damaged. Contact service personnel. OVER The UPS temperature is too high. 1. Choose a well-ventilated area. TEMPERATURE 2.
  • Page 76 Alarm Message Possible Cause Solution INVERTER SOFT 1. Inverter detection is abnormal. Contact service personnel. START FAIL 2. Inverter’s driver is damaged. INNER Inner communication cable is not Contact service personnel. COMMUNICATION well connected. FAIL PFC SUPERVISOR PFC CPU is damaged. Contact service personnel.
  • Page 77 Appendix 1 Appendix 1 : Model HPH-60K HPH-80K HPH-100K HPH-120K Power Rating 60kVA/60KW 80kVA/80KW 100kVA/100KW 120kVA/120KW Nominal Voltage Voltage Range Frequency 50/60 Hz Input Frequency Range Current Harmonic Distortion Power Factor Nominal Voltage Power Factor Voltage Regulation Voltage Harmonic Output...
  • Page 78 Model HPH-60K HPH-80K HPH-100K HPH-120K SMART Slot × 1, MINI Slot × 1, Parallel Port × 2, RS-232 Port × 1, USB Port × 1, REPO Port × 1, Communication Interfaces Charger Detection Port × 1, Input Dry Contact × 2, Output Dry Contact × 6, External battery temperature port ×...

  • Page 79: Appendix 2 : Warranty

    Appendix 2 Warranty Appendix 2 : Warranty Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship within the warranty period. If the product has any failure problem within the warranty period, Seller will repair or replace the product at its sole discretion according to the failure situation.
  • Page 80 5013226402...
