Summary of Contents for Delta UPS V3

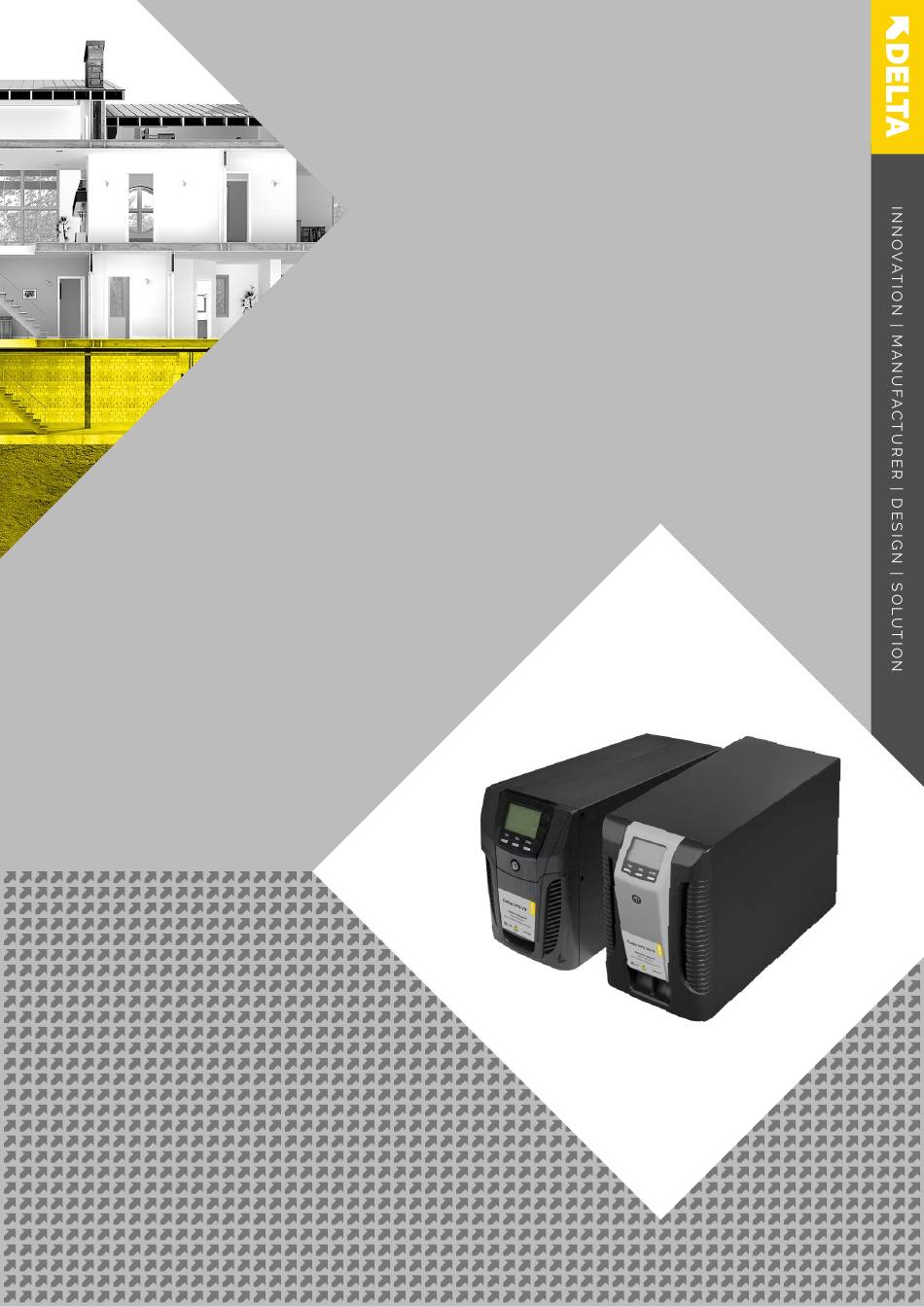

- Page 1 INSTALLATION GUIDE Delta UPS www.deltamembranes.com...
- Page 2 THIS MANUAL SHOULD BE KEPT WITH THE PRODUCT OR THE HOMEOWNER...
-
Page 3: Table Of Contents
Contents Delta UPS overview ..................................... 1 1.1 Delta UPS overview ..................................1 1.2 Features ........................................1 1.3 Specification ......................................1 1.4 Associated products ..................................1 1.5 Parts included ..................................... 2 1.5.1 Parts included with Delta UPS V3 ........................2 1.5.2 Parts included with Delta UPS V4/6 ........................2 1.6 Technical information ..................................2 2. Installation and operation .................................. -

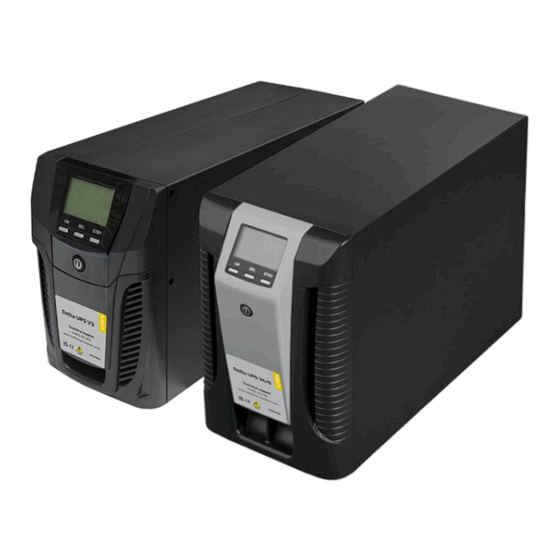

Page 4: Delta Ups Overview
30 hours protection, in accordance with PCA guidance of • Safety IEC EN 62040-1 a minimum of three activations per hour. • EMC IEC EN 62040-2 The Delta UPS V4/6 is suitable for powering Delta V3, V4 • RoHS compliant or V6 pumps. It can provide power to a Delta V6 pump for 30 minutes continuously, based on a 3.5 m head, equivalent to 30 hours protection. Associated products • Delta Dual V3 • Delta Dual V4 • Delta Dual V6 •... -
Page 5: Parts Included
1. Delta HLA overview Parts included 1.5.1 Parts included with Delta UPS V3 1.5.2 Parts included with Delta UPS V4/6 Delta UPS V3 10A pump connector plug Delta UPS V3 10A pump connector plug 10A fused kettle lead 16A IEC kettle 16A 3-pin head plug. -
Page 6: Installation And Operation
Intended use This Delta HLA is designed for use indoors only. Under no circumstances should the product be installed outdoors. Do not operate the UPS in direct sunlight, in contact with fluids, or where there is excessive dust or humidity. Be sure the air vents on the UPS are not blocked. Allow adequate space for proper ventilation. Installation It is important to note that these instructions are for guidance only and it is the installer’s responsibility to satisfy themselves that the installation procedure is in accordance with the site conditions and good building practice, to eliminate any potential damage to the system either during or after installation. The installer should also satisfy themselves that the system can be installed in conjunction with these guidelines, prior to work commencing. Please read these instructions in full prior to commencement of the installation. If you are unsure on any point then contact Delta Membranes on 01992 523 523 between 8am and 5pm, Monday to Friday or by email at info@deltamembranes.com before proceeding. The Delta UPS should be installed on a shelf a minimum of 500 mm above FFL. Remove all packaging and discard. Wire female euro line socket to the Backup pump. Plug Backump pump into UPS. Connect mains power lead to the UPS. Turn 240V power on at the mains connection, checking supply is present. Turn on to the unit using the ON/OFF Button Turn the unit on using the ON Button WARNING! The maximum recommended distance of the UPS to the pump chamber is 10 metres.. -
Page 7: Delta Ups V3 Parts
2. Installation and operation 2.3.1 Delta UPS V3 parts Display Multipurpose buttons ON/OFF Switch Removable front panel Cooling fan Circuit breaker IEC 10A input plug Communication port RS232 USB communication port 10. Communication card slots 11. IEC 10A output socket 12. Energyshare Delta UPS V3 front Delta UPS V3 rear 2.3.2 Delta UPS V4/6 parts Display Multipurpose buttons ON/OFF Switch USB communication port Remote control terminal board Cooling fan... - Page 8 2. Installation and operation 2.3.3 Display panel A. “SEL” button (Select) B. “ON” button C. “STAND-BY” button Regular operation Mains operation Battery operation AVR active Battery charge indicator Load level indicator Configuration area Maintenance request Timer 10. Measurement display area 11. Stand-by / alarm 12. EnergyShare Delta UPS DMS_IG_E021/E022 0123...
-
Page 9: Delta Ups V4/6 Parts
Mini oat switch Duty pump Backup pump (Delta V3 Submersible Pump) (Delta V3 Submersible Pump) Delta Dual V3 Packaged Pumping Station Example installation of a Delta UPS V3 with a Delta Dual V3 Packaged Pumping Station and Delta HLA.. 01992 523 523 info@deltamembranes.com www.deltamembranes.com... -
Page 10: Delta Ups V4/6 Parts
Backup pump (Delta V4/6 Submersible Pump) (Delta V4/6 Submersible Pump) Delta Dual V4/V6 Packaged Pumping Station Example installation of a Delta UPS V4/6 with a Delta Dual V4 or V6 Packaged Pumping Station and Delta HLA. Delta UPS DMS_IG_E021/E022 0123... -
Page 11: Switching On For The First Time
Switching on from the battery Press the ON/OFF switch located on the front panel. Hold down the “ON” button for at least 5 seconds. All the icons on the display light up for 1 second. Switch on the equipment connected to the UPS. Internal battery The battery typically lasts for two to five years. Environmental factors impact battery life. Elevated ambient temperatures, poor quality utility power, and frequent short duration discharges will shorten battery life. This can be ordered from Delta Membranes on 01992 523 523 between 8am and 5pm, Monday to Friday or by email at info@deltamembranes.com. See section 7 for more information. DO NOT access the internals of the system. This should only be completed by a competent repairer. Any unregistered access to the internals of the system may void any warranty claim should this be raised. Should you find a battery fault, please contact Delta Membranes on 01992 523 523 between 8am and 5pm, Monday to Friday or by email at info@deltamembranes.com for more information. Switching on from the UPS In order to switch off the UPS, hold down the “STBY” button for at least 2 seconds. The UPS goes back to stand-by mode and... -
Page 12: Display Panel Messages
Flashing Maintenance is required. Contact the support centre. Indicates that the timer is active (programmed switch-on and Fixed switch-off). The timer can be activated/deactivated using the software provided. 1 minute until the UPS switches back on or 3 minutes until it Flashing switches off Delta UPS DMS_IG_E021/E022 0123... -
Page 13: Display Panel Messages
2. Installation and operation 2.11 Display panel messages Battery charge Mains voltage percentage Mains frequency Total battery voltage UPS output voltage Applied load percentage Current absorbed by the Output voltage frequency load Temperature of the Residual battery autonomy electronics cooling system inside the UPS Fault / Alarm : the Lock... -
Page 14: Configuring The Operating Mode
2.12.1 How to proceed • To access the configuration area, hold down the “SEL” button for at least 3 seconds. • The icon corresponding to the mode currently set lights up. • To change the mode, press the “ON” button. • To confirm the mode chosen, hold down the “SEL” button for at least 3 seconds. 2.12.2 Possible settings The UPS is designed to be configured in various operating modes: • ON-LINE is the mode with the greatest load protection and the best quality of the output waveform (*) • ECO is the mode with which the UPS consumes the least power, so is therefore the most efficient (**) • SMART ACTIVE: in this mode, the UPS decides whether to operate in ON-LINE or ECO mode according to a statistic about the quality of the mains power. • STAND-BY OFF [Mode 1]: the UPS operates as an emergency power supply. If mains power is present, the load is not powered, however should the mains supply fail, the load is powered by the UPS. (*) The effective value (rms) of the output frequency and voltage is constantly controlled by the microprocessor, independently from the waveform of the mains voltage, maintaining the output frequency synchronised to the mains within a configurable range. Outside this range, the UPS output de-synchronises from the mains supply, moving to the nominal frequency; in this condition, the UPS cannot use the bypass. (**) In order to optimise performance, in ECO mode, the load is normally powered by the bypass. If the mains goes out of the permitted tolerance range, the UPS switches to ON LINE operation. If the mains returns within the permitted tolerance range for at least five minutes, the UPS goes back to powering the load from the bypass. Delta UPS DMS_IG_E021/E022 0123... -
Page 15: Additional Functions
2. Installation and operation 2.12.3 Additional functions Manual bypass Using the Manual Bypass feature, the UPS can be switched to bypass. In this condition the load is powered directly by the input mains, any disruption in the mains directly affects the load. CAUTION Before carrying out the following sequence of operations, ensure that the UPS’s input and output frequency coincide, and that the UPS is not operating from the battery. ATTENTION Even when the UPS is switched on, the load is disconnected in the event of a mains power failure. -
Page 16: Ups Configuration
Disabled Remote power Selects the function associated with the • Remote ON Disabled ON/OFF function RS232 connector. • Remote OFF • Remote ON/OFF * For configurations of the Fout = 50, 60Hz or if the sync is disabled with the input, the UPS downgrades the output power. Delta UPS DMS_IG_E021/E022 0123... -
Page 17: Alarm Codes
3. Alarm codes Using a sophisticated self-diagnosis system, the UPS is able to check its own status and any anomalies and/or faults which may occur during normal operation and display them on the display panel. If there is a problem, the UPS signals the event by showing the code and the type of active alarm on the display (FAULT and/or LOCK). Faults FAULT alerts can be divided into three categories: 3.1.1 Anomalies These are “minor” problems which do not cause the lock of the UPS but reduce performance or prevent certain functions from being used. Code Description Sensor 1 temperature under 0°C Sensor 2 temperature under 0°C Load percentage greater than the user threshold set Replace batteries Batteries missing, or battery box missing or not connected Waiting for battery charging 3.1.2 Alarms These are more critical problems than anomalies because, if they persist, they could cause the UPS to lock in a very short time. Code Description Incorrect auxiliary power supply Dissipator over temperature Temperature sensor 1 faulty Temperature sensor 2 faulty Input relay faulty Capacitor pre-charge failed Capacitor bank overvoltage Inverter overvoltage Continuous output voltage Incorrect inverter voltage Inverter undervoltage Overload: load > 103% Overload: load >110% Overload: load > 150% Short circuit Waiting for load reduction to return to inverter Battery overvoltage 01992 523 523 info@deltamembranes.com www.deltamembranes.com... -
Page 18: Active Commands
3. Alarm codes 3.1.3 Active commands Indicates the presence of an active remote command. Code Description Remote control 1 (Switch On/Off) Remote control 2 (load on bypass or manual bypass command) Remote control 3 (Switch On/Off) Battery test in progress Lock LOCK alerts are normally preceded by an alarm signal and their scale leads to the power-off of the inverter and the load being powered by the bypass line (this procedure is excluded for locks due to serious, persistent overloads and short circuits). Code Description Control card is not inserted correctly Incorrect auxiliary power supply Dissipater over temperature Temperature sensor 1 faulty Temperature sensor 2 faulty Input fuse broken or input relay stuck (does not close) Input relay faulty Capacitor pre-charge failed Capacitor bank under-voltage Capacitor bank over-voltage Inverter over-voltage Continuous output voltage Incorrect inverter voltage Inverter under-voltage Overload: load > 103% Overload: load > 110% Overload: load > 150% Short circuit Delta UPS DMS_IG_E021/E022 0123... -
Page 19: Wiring
Duty pump cable Float cable fused spur Backup pump cable Float shroud secured with cable ties to pipework Mini oat switch Duty pump Backup pump (Delta V3 Submersible Pump) (Delta V3 Submersible Pump) Delta Dual V3 Packaged Pumping Station 01992 523 523 info@deltamembranes.com www.deltamembranes.com... -
Page 20: Delta Ups V4/6
Duty pump cable Backup pump cable Float shroud secured with cable ties to pipework Mini oat switch Duty pump Backup pump (Delta V4/6 Submersible Pump) (Delta V4/6 Submersible Pump) Delta Dual V4/V6 Packaged Pumping Station Delta UPS DMS_IG_E021/E022 0123... -
Page 21: Maintenance
The product should be inspected quarterly. When installed in conjunction with a pump system, please refer to the product installation and operating guidelines for pump station maintenance requirements. In addition to the above it is important that the product undergoes a full service at a minimum frequency of once yearly (increased servicing frequency is subject to site and product specific details. Where a product is serving more than a single residential dwelling and/or there is a risk of flooding as a result of product failure the servicing frequency should be increased accordingly). To arrange a service please contact Delta Membranes on 01992 523 523 between 8am and 5pm, Monday to Friday or by email at info@deltamembranes.com. 6. Health and safety In order to minimise the risk of ill health or accidents when installing and/or servicing pump chambers, workers must be fully trained, competent and follow the health and safety guidelines below: • Do not work without a risk assessment being in place. -
Page 22: Fault Finding
Check the connection to the load. Problem with the mains. Wait until The input voltage is outside the the input mains voltage returns permitted tolerance range for mains within the tolerance range. The UPS operation will automatically return to mains The UPS is operating from the battery operation. despite the presence of mains voltage If present, reset the circuit breaker by Intervention of the input circuit pressing the button on the back of breaker the UPS. CAUTION: Check that there is no output overload to the UPS. Check the temperature of the The UPS does not come on and the The temperature of the UPS is lower environment in which the UPS is display shows the code: A06, A08 than 0°C located; if it is too low, bring it past the minimum threshold (0°C). Switch off and disconnect the UPS The display shows the follow codes: Input relay faulty from the power supply and contact L10, L11, F11 Delta Membranes. Switch off and disconnect the UPS The display shows the follow code: Control card is not inserted correctly from the power supply and contact Delta Membranes. Delta UPS DMS_IG_E021/E022 0123... - Page 23 Problem Cause Solution Reduce the load to within the The buzzer sounds continuously and threshold of 100% (or user threshold the display shows one of the following The load applied to the UPS is too in the case of code A54). If the display codes: A54, F50, F51, F52, F55, L50, high shows a lock: remove the load and L51, L52 switch the UPS off and back on again. The display shows the follow code: Contact Delta Membranes for battery Replace the batteries replacement. On the versions with an additional battery charger in place of the The display shows the follow code: Batteries missing or battery box batteries, check that the battery box missing or not connected is inserted and connected to the UPS correctly. Wait until the batteries have The batteries are flat; the UPS is The display shows the follow code: recharged or force power- on waiting for the battery voltage to manually by holding down the “ON” exceed the set threshold button for at least 2 seconds. The buzzer sounds continuously and If possible, disconnect the power to the display shows one of the following The UPS is malfunctioning; it will the load, switch the UPS off and back codes: F03, F05, F07, F13, F21, F40, probably lock soon on again; if the problem occurs again,...
-
Page 24: Declarations
8. Declarations 8.1 The European Union Waste Electrical and Electronic Regulations 2013 This PCB assembly is classified as Electrical or Electronic equipment and should not be disposed of in normal domestic or commercial waste. Additionally, the internal batteries are lead-acid type. Under the WEEE Directive, the equipment should be recycled using the best possible techniques to minimise environmental impact and avoid unnecessary landfill. For further information, visit http:/ /www.legislation.gov.uk/uksi/2013/3113/contents/made 8.2 UKCA and CE approved The product complies with the relevant sections of: • L V 2014/35/EU low voltage • EMC 2014/30/EU electromagnetic compatibility • Safety IEC EN 62040-1 • EMC IEC EN 62040-2 • RoHS compliant Delta UPS DMS_IG_E021/E022 0123... -
Page 25: Warranty
Standard Delta Membrane Systems Limited conditions apply. This warranty does not cover defects caused by incorrect installation, installation/installer error, abnormal working conditions, misuse, or neglect. Any defects or malfunctions should be reported to Delta Membrane Systems Limited within of seven days when defect becomes apparent. All broken components should be returned to Delta Membrane Systems Limited at customer cost. To make a Warranty Claim, please email pumps@deltamembranes.com. Forms are available from www.deltamembranes.com. In no event shall Delta Membrane Systems Limited be liable for any consequential damage, penalties, loss, or expenses... -
Page 26: Commissioning Details
10. Commissioning details Property address Commissioning engineers Customer contact details Contact name Contact telephone Installation details Equipment installed Delta Registered Pump Service Provider Date of commissioning Commissioning engineer Signature of engineer Servicing plans Sump pumps must be maintained. We recommend a qualified engineer examines and services equipment every year. Pumps running frequently due to higher water table, water drainage, or weather conditions should be examined more frequently, we recommend every 6 months. Sump pumps, being mechanical devices, may fail if not maintained which could lead to a flooded basement and costly repairs. Regular servicing of sump pumps will increase efficiency and extend the life of the pump. All Delta Membrane pump systems can be maintained and serviced by our recommended service companies or installing contractor. Commissioning All sump pumps require commissioning. Commissioning provides peace of mind, knowing that the system is installed correctly and in compliance with warranty conditions. All Delta Membrane pump systems can be commissioned by our recommended service companies or installing contractor. Delta UPS DMS_IG_E021/E022 0123... - Page 27 01992 523 523 info@deltamembranes.com www.deltamembranes.com...
- Page 28 Delta Membrane Systems Ltd, Delta House, Merlin Way, North Weald, Epping, Essex, CM16 6HR. 01992 523 523 info@deltamembranes.com www.deltamembranes.com deltamembranes deltamembranes delta-membrane-systems-ltd deltamembranesystems © 2023 Delta Membrane Systems Ltd. All Rights Reserved. DMS_IG_E021/E022 0123...
