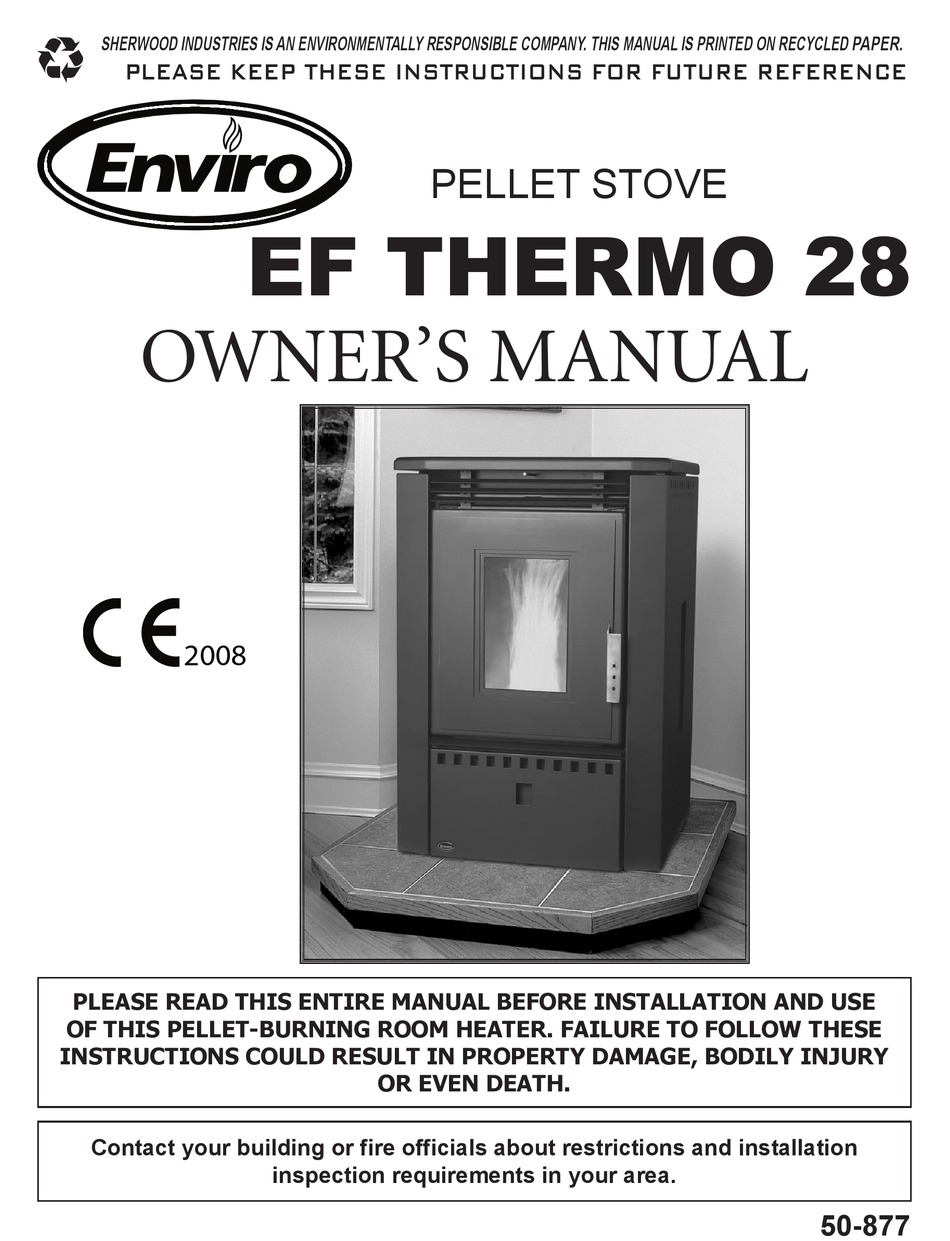

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PELLET STOVE EF THERMO 28 OWNER’S MANUAL ���� PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
  • Page 2: Table Of Contents

    Table of Contents Introduction................3 Rating Label Location.............3 Pellet Quality..............3 Safety Warnings & Recommendations.........4 Specifications................6 Water Specifications............6 Appliance Dimensions.............7 Operating Instructions...............8 Control Board Functions..........8 Turning Pellet Stove On..........8 Turning Off Your Pellet Stove..........9 Slider/Damper Operation..........9 Routine Cleaning and Maintenance...........10 Troubleshooting..............13 Installation Data Sheet............15...
  • Page 3: Introduction

    UALITY Pellet quality is important, please read the following: Your Enviro pellet stove has been designed to burn 6mm dia wood pellets only. DO NOT use this appliance as an incinerator. DO NOT use unsuitable and non recommended fuels, including liquid fuels as this will void any warranties stated in this manual.
  • Page 4: Safety Warnings & Recommendations

    To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An ENVIRO dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions.
  • Page 5 If this power cord should become damaged, a replacement power cord must be purchased from the manufacturer or a qualified ENVIRO dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or sharp edges. This unit’s maximum power requirement is 800 watts.
  • Page 6: Specifications

    Specifications ATER PECIFICATIONS Necessary draught 34.8 Pa (0.348 mbar) Mass of Appliance 157 Kg Minimum required load bearing capacity of the floor 247 Kg Water content 17.3 liters Exhaust gas temperature at nominal heat output 230°C Exhaust gas temperature at minimum heat output 120°C Exhaust mass flow at nominal heat output 7.5 g/s...
  • Page 7: Appliance Dimensions

    Specifications PPLIANCE IMENSIONS UNIT DIMENSIONS HEIGHT: 37 3⁄8” (949 mm) WIDTH: 25 1⁄4” (641 mm) DEPTH: 25 ” (646 mm) HEARTH PAD: " WIDTH: 25 1⁄4” (641 mm) (94.9cm) DEPTH: 31 ” (793 mm) [6” (152.4 mm) in front of unit] "...
  • Page 8: Operating Instructions

    Operating Instructions ONTROL OARD UNCTIONS 1. WATER TEMPERATURE DIAL: Read in degrees Celsius   2. AUGER TRIM    3. CONVECTION BLOWER CONTROL   � 4. AUGER PULSE LIGHT: The light flashes in conjunction with the auger. ...
  • Page 9: Turning Off Your Pellet Stove

    Operating Instructions 6. When unit is operating on LOW the unit can be adjusted for poorer quality fuels. By depressing the Auger Trim button, WHEN THE UNIT IS ON LOW, the ON time the auger pulses can be changed from 2 seconds ON to 4 seconds ON.
  • Page 10: Routine Cleaning And Maintenance

    Routine Cleaning and Maintenance The following list of components should be inspected and maintained routinely to ensure that the appliance is operating at its’ optimum and giving you excellent heat value: 2-3 DAYS/WEEKLY 1⁄2 SEASON or 1 TON OF FUEL TOOLS REQUIRED TO CLEAN UNIT: Ash Pan and Door Gaskets Exhaust Vent...
  • Page 11 Routine Cleaning and Maintenance ASH DRAWER: Remove ash drawer (see Figure 9). Dump the ashes into a metal container stored away from combustibles. Monitor the ash level every week. Remember that different pellet fuels will have different ash contents. Ash content is a good indication of fuel efficiency and quality.
  • Page 12 Routine Cleaning and Maintenance HEAT EXCHANGER AND INTERNAL EXHAUST TUBES: ONLY TO BE CLEANED WHEN THE UNIT IS COLD. Clean away any fly ash that may have collected in and on the tubes. As different types of pellets produce different amounts of ash, cleaning of the tubes should be done on a regular basis to enable the unit to run efficiently.
  • Page 13: Troubleshooting

    Troubleshooting *NOTE: All troubleshooting procedures should be carried out by qualified technicians or installers. DO NOT: • Hold the ON / OFF BUTTON; this is a momentary contact switch and can be damaged if held down too long. • Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly.
  • Page 14 Troubleshooting 5. The stove will not shut off. «If the unit will not shut off, ensure that the thermostat (if equipped) is turned down below the room temperature (thermostat mode in the ON / OFF position). «If the unit is in the HI/LOW mode the unit will not shut off but will go to an idle setting (LOW). Press the ON/OFF button to turn the unit off.
  • Page 15: Installation Data Sheet

    _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ WARRANTY: If you have any concerns with your unit please contact the dealer where you purchased the stove. MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com April 30, 2008 C-1205...
