FOR YOUR SAFETY
Do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or any
other appliance.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified
WARNING:
If the information in this manual
is not followed exactly, a fire or explosion
may result causing property damage, personal
injury or loss of life. Installation and service
must be performed by a qualified installer,
service agency or the gas supplier.
O- T L
Tested &
Portland
Listed By
Oregon USA
C
US
OMNI-Test Laboratories, Inc,
Report # 268-S-22-5
Report # 268-Sb-22-5
Report # 268-S-06b-2
SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Version Française: www.enviro.com/fr.html
E33G
Glass Burner & Nova Valve

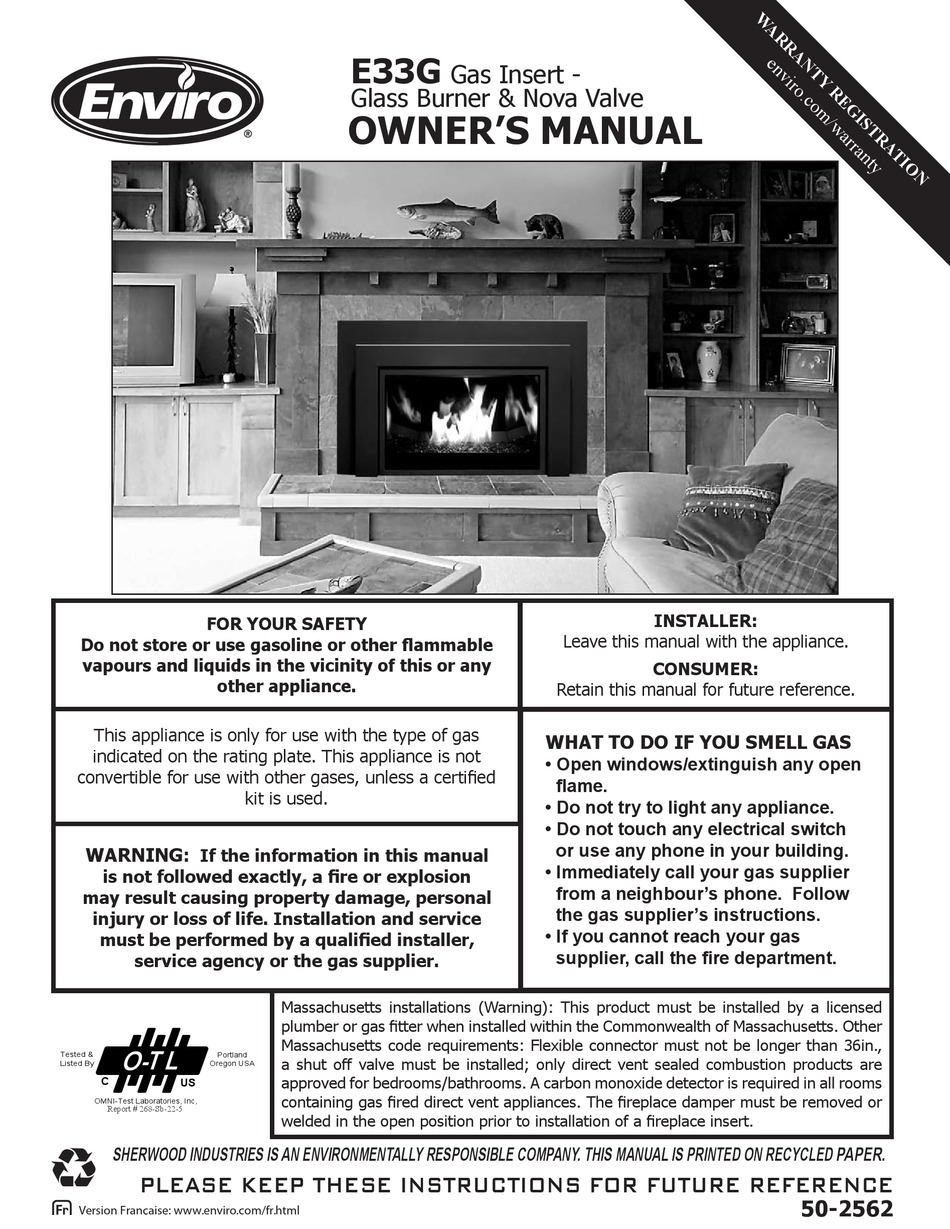

OWNER'S MANUAL
kit is used.
Massachusetts installations (Warning): This product must be installed by a licensed
plumber or gas fitter when installed within the Commonwealth of Massachusetts. Other
Massachusetts code requirements: Flexible connector must not be longer than 36in.,
a shut off valve must be installed; only direct vent sealed combustion products are
approved for bedrooms/bathrooms. A carbon monoxide detector is required in all rooms
containing gas fired direct vent appliances. The fireplace damper must be removed or
welded in the open position prior to installation of a fireplace insert.
Gas Insert -
Leave this manual with the appliance.
Retain this manual for future reference.
WHAT TO DO IF YOU SMELL GAS
• Open windows/extinguish any open
flame.
• Do not try to light any appliance.
• Do not touch any electrical switch
or use any phone in your building.
• Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
• If you cannot reach your gas
supplier, call the fire department.
INSTALLER:
CONSUMER:
50-2562
Advertisement
Table of Contents
Related Manuals for Enviro E33G
Summary of Contents for Enviro E33G
- Page 1 Report # 268-S-06b-2 welded in the open position prior to installation of a fireplace insert. SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE 50-2562 Version Française: www.enviro.com/fr.html...
-
Page 2: Safety Precautions
HOT GLASS WILL door shut. CAUSE BURNS • If the E33G unit is pulled out of its installation, and the vent-air intake system is disconnected for any reason, DO NOT TOUCH ensure that the vent-air intake pipes are reconnected and GLASS UNTIL COOLED. -
Page 3: Table Of Contents
Table of Contents Safety Precautions......................2 Table of Contents......................3 Codes And Approvals.......................4 Specifications........................5 Rating Label Location...................5 Dimensions......................5 E33G Options Dimensions..................6 Operating Instructions....................7 Lighting and Turning Off Instructions..............7 Pilot Light......................8 Venturi Adjustment....................8 Normal Sounds During Operation.................8 Burner Lighting.....................9 Blower Speed.......................9 Maintenance And Service....................10 Cleaning The Glass.....................10... -
Page 4: Codes And Approvals
After the unit has gone through the first burn, turn the unit off, let the unit get cold then remove the glass door and clean it with a good gas fireplace glass cleaner, available at your local ENVIRO dealer. See “D ”... -
Page 5: Specifications
The rating label is located on the left side of the unit, next to the fan controller. imensions 22.16 9.09 9.06 14.05 11.24 33.00 28.89 27.05 21.55 FRONT 19.78 16.64 18.55 18.06 17.40 LEFT RIGHT Figure 1: E33G Exterior Dimensions. -
Page 6: E33G Options Dimensions
Specifications 8 " " 4 " 2 " Figure 2: E33G Contemporary Surround with Base Shelf and Riser. Table 1: E33G Options Dimensions. Regular Surround Contemporary Surround Extruded Surround Height 26.5” (673 mm) 26.5” (673 mm) 26.5” (673 mm) Width ”... -
Page 7: Operating Instructions
Operating Instructions For Your Safety, Read Safety Precautions And Lighting Instructions Before Operating WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. ighting anD uRning nstRuctions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING... -
Page 8: Pilot Light
Operating Instructions iLot ight 1. Turn off the gas to the fireplace. If not recently done, remove the glass and let the unit air out for at least five (5) minutes to clear out any gas. Turn on gas to the heater. Leak test all joints with Thermocouple Thermopile soapy water. -
Page 9: Burner Lighting
After the unit has gone through the first burn, turn the unit OFF, including the pilot, and let the unit completely cool. Then remove the door and clean the glass with a good gas fireplace glass cleaner, available at your local Enviro dealer. See m aIntenance erVIce... -
Page 10: Maintenance And Service
The glass must be purchased from an ENVIRO dealer. No substitute materials are allowed. Remove the door (see page 11). The replacement glass will come with a new gasket installed. Remove any silicone remnants from the door. -
Page 11: Glass Door Removal
Maintenance And Service Lass emoVaL Figure 9: Door Removal. Figure 8: Door Release. Remove the glass door by placing the hooked end of the door release tool in the hole on the door latch mechanism (see Figure 8) and pulling the latch out then up. When the two (2) latches have been released, tilt the bottom of the door forward and then lift up to unhook the top door tabs (see Figure 9). -
Page 12: Removing Valve Cover
Maintenance And Service emoVing aLVe oVeR The valve cover can be removed to access the gas valve. 1. Use a T-20 screwdriver to remove the eight screws that hold down the valve cover shown in Fig. 10. VALVE COVER Figure 10: Valve Cover. -
Page 13: Fuel Conversion
Fuel Conversion TO BE INSTALLED BY A QUALIFIED SERVICE AGENCY ONLY Please read and understand these instructions before installing. WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. - Page 14 Fuel Conversion d) Insert a ” or 4 mm Allen wrench into the hexagonal key-way of the screw (see Figure 12), rotate it counter-clockwise until it is free and extract it. e) Flip the screw (refer to Figure 13). f) Using the Allen wrench as shown in Figure 12, rotate the screw clockwise. WARNING! Do not over tighten the screw.
-
Page 15: Initial Installation
The vent length for the E33G must be between 8ft (2.44 m) and 30ft (9.14 m). This model is vented with a 3” intake and a 3” exhaust aluminum or stainless steel flex vent leading into a vertical termination cap. -
Page 16: Venting Fireplace Inserts
Check for any tears in the liner at this point. IMPORTANT: The screws that hold the vent collar plate in its approved position must be installed. NOTE: If the E33G unit is pulled out of its installation, and the vent air intake system is disconnected for any reason, ensure that the vent-air intake pipes are re-sealed with high-temperature sealant and reconnected with three (3) sheet metal screws evenly spaced. - Page 17 The fireplace and fireplace chimney must be clean, in good working order and constructed of non-combustible materials. Make sure that all chimney cleanouts are tight fitting and will not permit air to leak into the chimney. It must be completely sealed. Figure 19: Alternate Installation of E33G .
-
Page 18: Direct Vent Vertical Vent Termination
1. Plan your installation and clearances to combustibles. The E33G may be installed and vented into any solid fuel fireplace that has been installed in accordance with the National, Provincial/State and local building codes and has been constructed of non-combustible materials. Also refer to the I... -
Page 19: Installing The Unit
4. Check that the chimney clean outs fit properly. The flue damper must be fully blocked open or removed for installation of the E33G; the smoke shelves, shields and baffles may be removed if attached by mechanical fasteners. -
Page 20: Zero Clearance Fireplace Installation
Initial Installation QUALIFIED INSTALLERS ONLY (zc) f LeaRance iRePLace nstaLLation The metal floor of the ZC solid fuel firebox can be removed to allow the installation of the insert. THE CLEARANCE TO COMBUSTIBLE MATERIAL UNDER THE INSERT IS 4” (102 mm). YOU MUST USE THE LEVELING LEGS TO RAISE THE INSERT A MINIMUM OF 4”... -
Page 21: Electrical Requirements
Initial Installation QUALIFIED INSTALLERS ONLY LectRicaL equiRements The fan will not operate if the appliance is cold. Once the unit is lit and the fan is set to the desired level, the fan will automatically turn on upon reaching operating temperature. The fan will automatically turn off after the appliance has cooled down. -
Page 22: Gas Line Connection
½ psig (3.45 KPa) or the valve will be damaged. Figure 26: ⅜” Gas Valve with Cover Removed. Table 5: Orifice and Pressure Information. E33G With Glass Burner & Nova Valve Main Burner Natural Gas Propane Gas Orifice:... - Page 23 Initial Installation QUALIFIED INSTALLERS ONLY TO TEST VALVE PRESSURES (INPUT RATES): The pressure taps are located on the front side of the valve (see Figure 27). 1. Remove valve control knobs. 2. Using a long flat bladed screwdriver, turn set screw counter-clockwise to loosen. 3.
-
Page 24: Adjusting The Pilot Flame
Initial Installation QUALIFIED INSTALLERS ONLY Djusting iLot Lame The pilot flow adjustment is set to maximum at the factory and should not need to be adjusted. The pilot flame should envelope ⅜” to ½” (10 to 13mm) of the thermocouple (see Figure 28). However, should the need arise, follow Steps 1- 2 below. -
Page 25: Secondary Installation
The E33G Base Shelf (1⅝” (41 mm) high) and Base Shelf Riser (2⅛” (54 mm) high) are components that can be combined to create a riser with an overall height of 2 ” (55 mm). This shelf can be installed with or without the riser and can be used when the hearth in front of the unit is lower than the fireplace opening. -
Page 26: Optional Trimmable Panel
Modifying the Surround Panel: The E33G Trimmable Surround Panels are large rectangular panels that may be cut for use in cases that a non- standard fireplace opening (e.g. an arched opening) is to be filled. Optionally this surround can be left uncut and placed in front of the fireplace opening. -
Page 27: Surround Panel Installation
The wiring harness for the burner switch has one (1) blue wire, one (1) grey wire and two (2) purple wires. The blue wire connects to the blue wire on the E33G unit, the grey wire connects to the grey wire on the E33G unit, and the purple wires are used to connect an optional thermostat. -
Page 28: Firebox Liner And Burner Tray Removal / Installation
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. 1. Ensure the E33G is turned off and allow the unit to completely cool. 2. Remove the glass door as shown in the m... -
Page 29: Installing The Glass Burner Media
Secondary Installation nstaLLing the Lass uRneR eDia Pour the supplied glass media into the tray and evenly distribute over the entire tray area as shown in Figure 38. There is 3.5lbs of glass included which is just enough for a 0.250” - 0.375” thin layer to cover the area shown. -
Page 30: Trouble Shooting
Trouble Shooting Problem Possible Cause Solution The main burner The gas valve may not be on. • Check that the gas control knob is in the “ON” position. does not ignite Thermostat is not calling for • Adjust the thermostat several degrees above ambient temperature. when called for. -
Page 31: Parts List
Reference Part Description Part Number Number DV Flue Adaptor Bottom Gasket 50-2516 E33G Owner’s Manual 50-2562 E33G Conversion Kit NG to LP 50-2515 E33G Conversion Kit LP to NG 50-2540 Door Release Tool 50-2510 Domestic Power Cord (115V) EC-042 Heyco Strain Relief... - Page 32 Parts List Reference Part Description Part Number Number Door Latch Mechanism (Set of 2) 50-2524 Porcelain Liner Set - E33G 50-2437 S.I.T. Nova Valve Convertible 50-1421 120 Ceramic Fan Temp Sensor EC-001 12 oz. Can of Metallic Black Touch Up Paint...
-
Page 33: Parts Diagram - Components
Parts Diagram - Components... -
Page 34: Parts Diagram - Options
Parts Diagram - Options... -
Page 35: Warranty
Exclusions conditions herein set forth, this product against defects in material and workmanship An expanded list of exclusions is available at www.enviro.com/help/warranty.html during the specified warranty period starting from the date of original purchase at retail. This warranty does not cover: In the event of a defect of material or workmanship during the specified warranty period, ƒ... -
Page 36: Installation Data Sheet
� NATURAL GAS (NAT) PROPANE(LPG) _________________________________________ INLET GAS PRESSURE:_________in WC PHONE:___________________________________ MAIN BURNER ORIFICE:__________# DMS PILOT ORIFICE #_________OR________in diam. INSTALLER’S SIGNATURE: _________________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com August 18, 2014 C-14407...
