SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
PELLET STOVE
EF THERMO 28
OWNER'S MANUAL
����
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE
OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY
OR EVEN DEATH.
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
50-877
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Enviro EF THERMO 28 CE2005
Summary of Contents for Enviro EF THERMO 28 CE2005

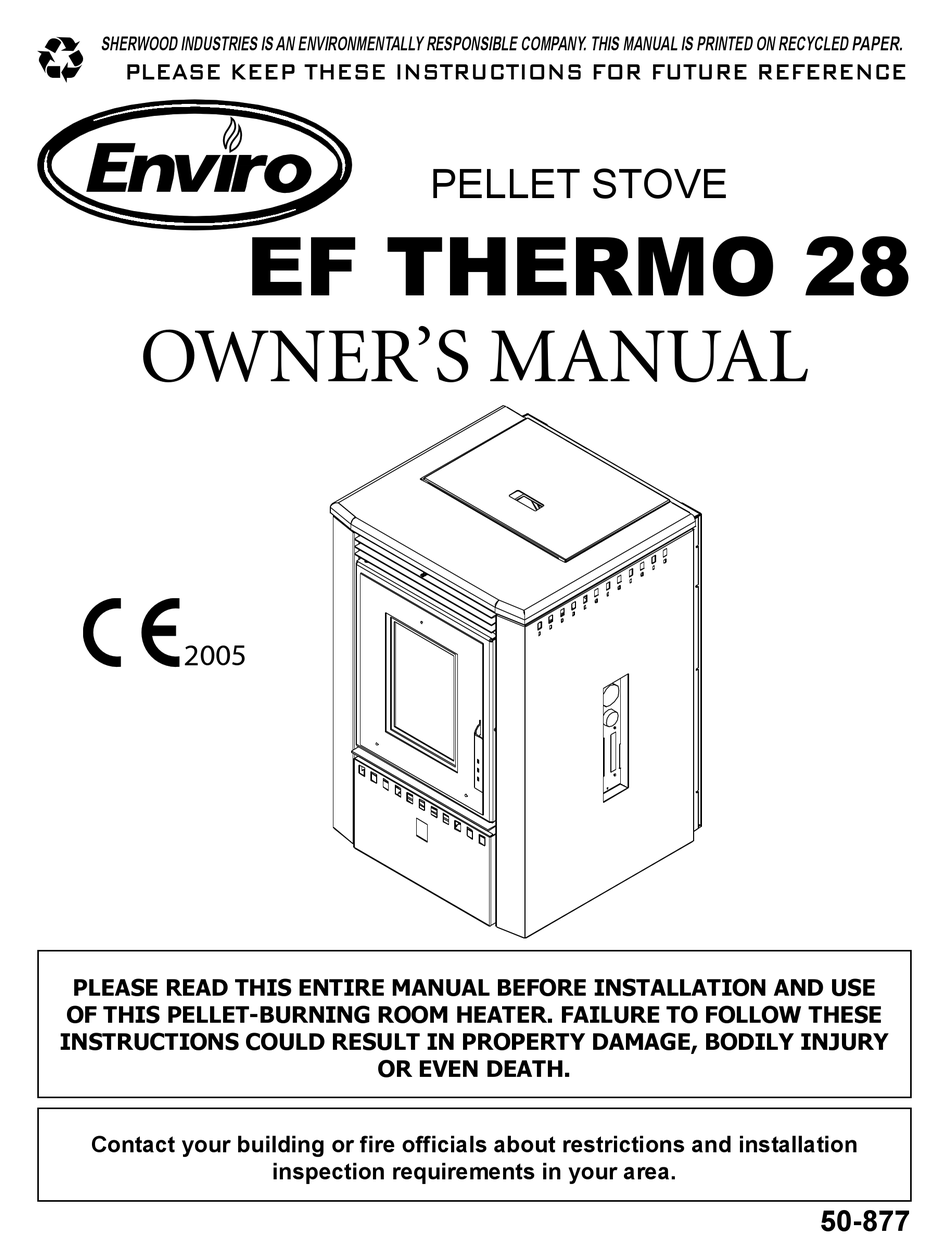

- Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PELLET STOVE EF THERMO 28 OWNER’S MANUAL ���� PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
-
Page 2: Table Of Contents
Warnings and Recommendations...5 Rating Label Location...6 Appliance Dimensions...6 Operating Instructions...7 Control Board Functions...7 Turning Pellet Stove On...7 Turning Off Your Pellet Stove...8 Slider/Damper Operation...8 Routine Cleaning and Maintenance...9 Troubleshooting...12 Warranty...14 Installation Data Sheet...15 This manual is to be used by the owners for safety and operating instructions. -
Page 3: Introduction
If this power cord should become damaged, a replacement power cord must be purchased from the manufacturer or a qualified ENVIRO dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or sharp edges. This unit’s maximum power requirement is 800 watts (3.3 amp). -
Page 4: Water Specifications
PELLET QUALITY IS IMPORTANT, PLEASE READ THE FOLLOWING PAGE. Your pellet stove has been designed to burn wood pellets only. Since there are many manufacturers of wood pellets, it is important to select pellets that are free of dirt or any impurities. Ask your dealer for a recommended pellet type. -
Page 5: Warnings And Recommendations
C. Do not attempt to open the door and clean the glass while the unit is in operation. To clean the glass, use a soft cotton cloth and mild window cleaner, gas or wood stove glass cleaner, or take a damp paper towel and dip into the fly ash. -
Page 6: Unit Dimensions
ATING ABEL OCATION The rating label is located on the hopper lid. PPLIANCE IMENSIONS " (94.9cm) " (64.6cm) Figure 1 Introduction UNIT DIMENSIONS HEIGHT: 37 3⁄8” WIDTH: 25 1⁄4” DEPTH: 25 HEARTH PAD: WIDTH: 25 1⁄4” DEPTH: 31 " (64.1cm) �����... -
Page 7: Operating Instructions
Operating Instructions ONTROL OARD UNCTIONS � � Figure 3 URNING ELLET TOVE Ensure the hopper has sufficient pellet fuel to start the unit. 1. -
Page 8: Turning Off Your Pellet Stove
If the dial is turned down, the stove will run through its complete start-up sequence and shut down after the stove has lit. The unit can be shut-off manually at this time by pressing the ON/OFF button. -
Page 9: Routine Cleaning And Maintenance
ABOVE HEAT EXCHANGER TUBES There is a tube cleaner rod at the front of the unit (shown in Figure 6). When the stove is off, pull the rod in and out to remove the ash build up above the heat exchanger tubes. - Page 10 Do not attempt to open the door and clean the glass while the unit is in operation or if glass is hot. To clean the glass, use a soft cotton cloth and mild window cleaner, gas or wood stove glass cleaner, or take a damp paper towel and dip into the fly ash.
- Page 11 Remove the ash drawer cover and ash drawer (see Figure 8) then remove the T-20 screws from the two (2) front tabs (see Figure 10) . 3. Remove the heat exchanger cover from the top of the stove by removing the screw on each side shown in Figure 11.
-
Page 12: Troubleshooting
• Hold the ON / OFF BUTTON; this is a momentary contact switch and can be damaged if held down too long. • Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. - Page 13 üSet the auger trim till the #1 and #5 lights are illuminated. If the stove goes out and there are partially burned pellets left in the burn pot liner, the stove has shut down due to a lack of air, exhaust temperature, or power failure.
-
Page 14: Warranty
Sherwood Industries Ltd. gives a five year limited warranty on all steel manufactured parts. A one-year warranty is provided on all electrical components. The above limited warranties are extended only to the original purchaser. There is no warranty on the following parts: ●... -
Page 15: Installation Data Sheet
Installation Data Sheet The following information must be recorded by the installer for warranty purposes and future reference. NAME OF OWNER: _________________________________________ ADDRESS: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MODEL:___________________________________ SERIAL NUMBER:___________________________ DATE OF PURCHASE: _____________ DATE OF INSTALLATION:___________ MAGNEHELIC AT INSTALL:___________________ INSTALLER’S SIGNATURE: _________________________________________ 6782 OLDFIELD RD.
