5.2 Function parts of device

The pinout of the 5 pin mini-USB jack connector on the MAMBO2 device:
PIN NAME
1 VCC
2 D-
3 D+
X NC
4 GND
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
M
ANUAL

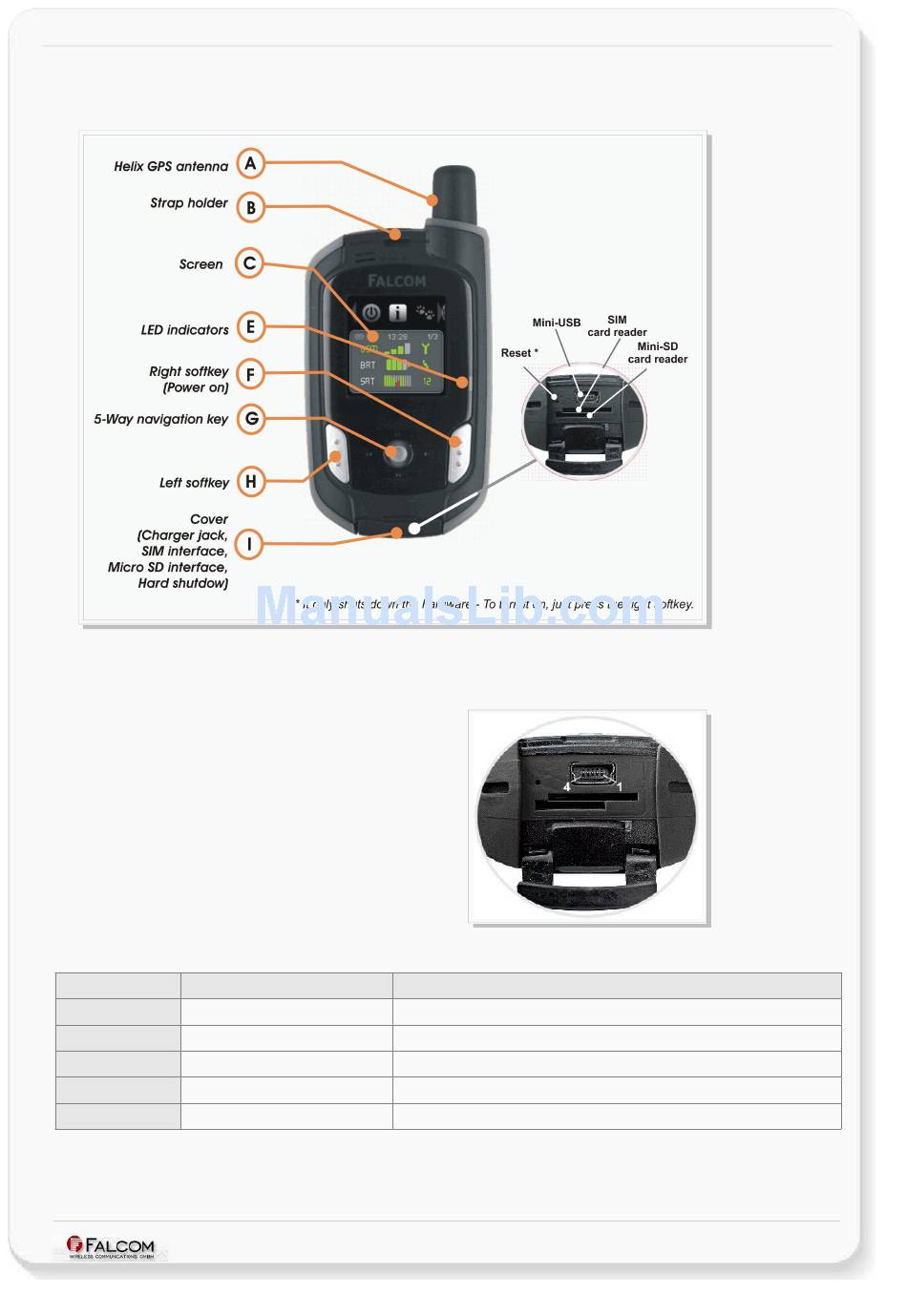

Figure 2: Parts of the MAMBO2
Figure 2.1: 5 pin mini-USB jack connector
DESCRIPTION
+ 5 VDC
Data -
Data +
-
Ground
Table 5: The pinout of the 5 pin mini-USB jack connector
