SnapServer Hardware Checklists

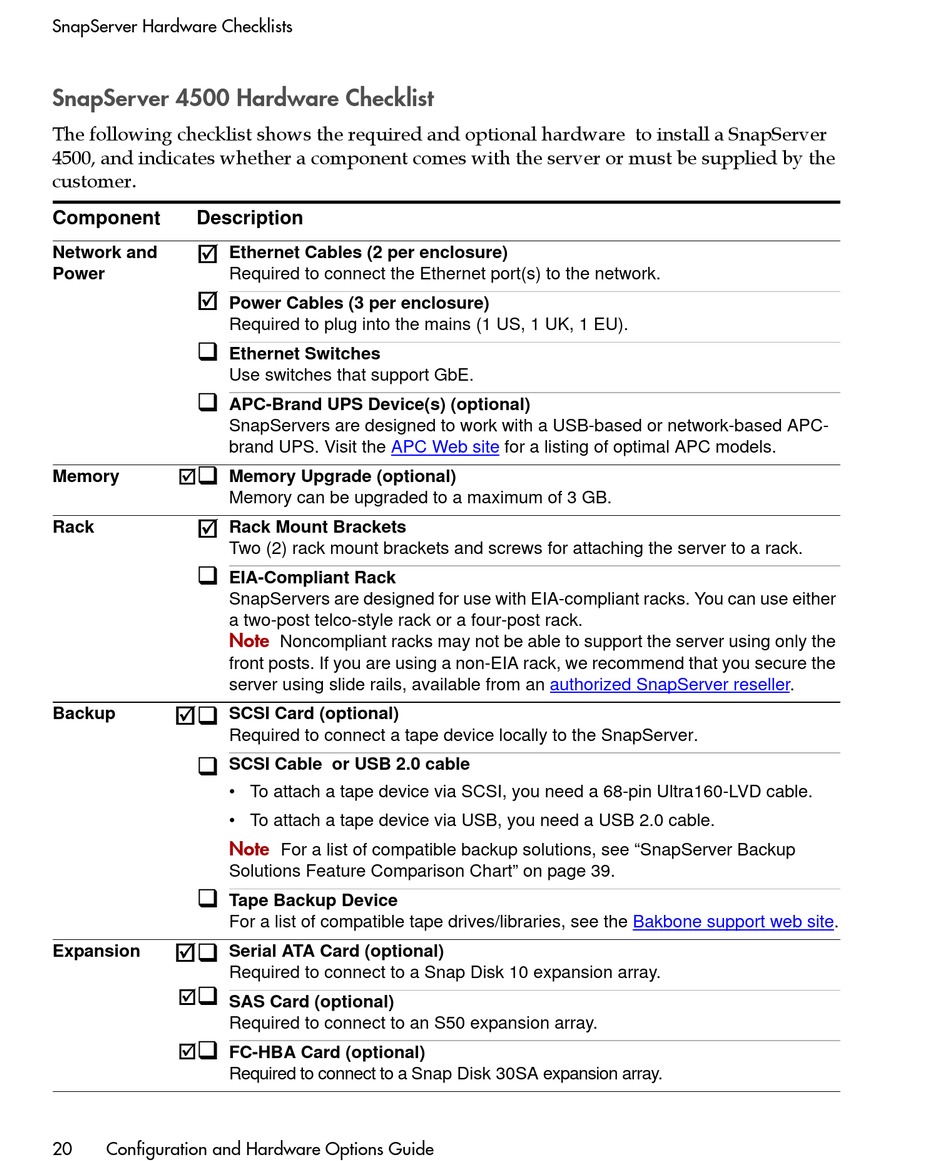

SnapServer 4500 Hardware Checklist

The following checklist shows the required and optional hardware to install a SnapServer
4500, and indicates whether a component comes with the server or must be supplied by the
customer.
Component Description
Z
Network and Ethernet Cables (2 per enclosure)
Power Required to connect the Ethernet port(s) to the network.
Z
Power Cables (3 per enclosure)
Required to plug into the mains (1 US, 1 UK, 1 EU).
̌
Ethernet Switches
Use switches that support GbE.
̌
APC-Brand UPS Device(s) (optional)
SnapServers are designed to work with a USB-based or network-based APC-
brand UPS. Visit the
̌
Z
Memory Memory Upgrade (optional)
Memory can be upgraded to a maximum of 3 GB.
Z
Rack Rack Mount Brackets
Two (2) rack mount brackets and screws for attaching the server to a rack.
̌
EIA-Compliant Rack
SnapServers are designed for use with EIA-compliant racks. You can use either
a two-post telco-style rack or a four-post rack.
Note
front posts. If you are using a non-EIA rack, we recommend that you secure the
server using slide rails, available from an
Ž
Backup SCSI Card (optional)
Required to connect a tape device locally to the SnapServer.
̌
SCSI Cable or USB 2.0 cable
• To attach a tape device via SCSI, you need a 68-pin Ultra160-LVD cable.
• To attach a tape device via USB, you need a USB 2.0 cable.
Note
Solutions Feature Comparison Chart" on page 39.
̌
Tape Backup Device
For a list of compatible tape drives/libraries, see the
Ž
Expansion Serial ATA Card (optional)
Required to connect to a Snap Disk 10 expansion array.
̌
Z
SAS Card (optional)
Required to connect to an S50 expansion array.
̌
Z
FC-HBA Card (optional)
Required to connect to a Snap Disk 30SA expansion array.
20 Configuration and Hardware Options Guide
