SnapServer Hardware Checklists

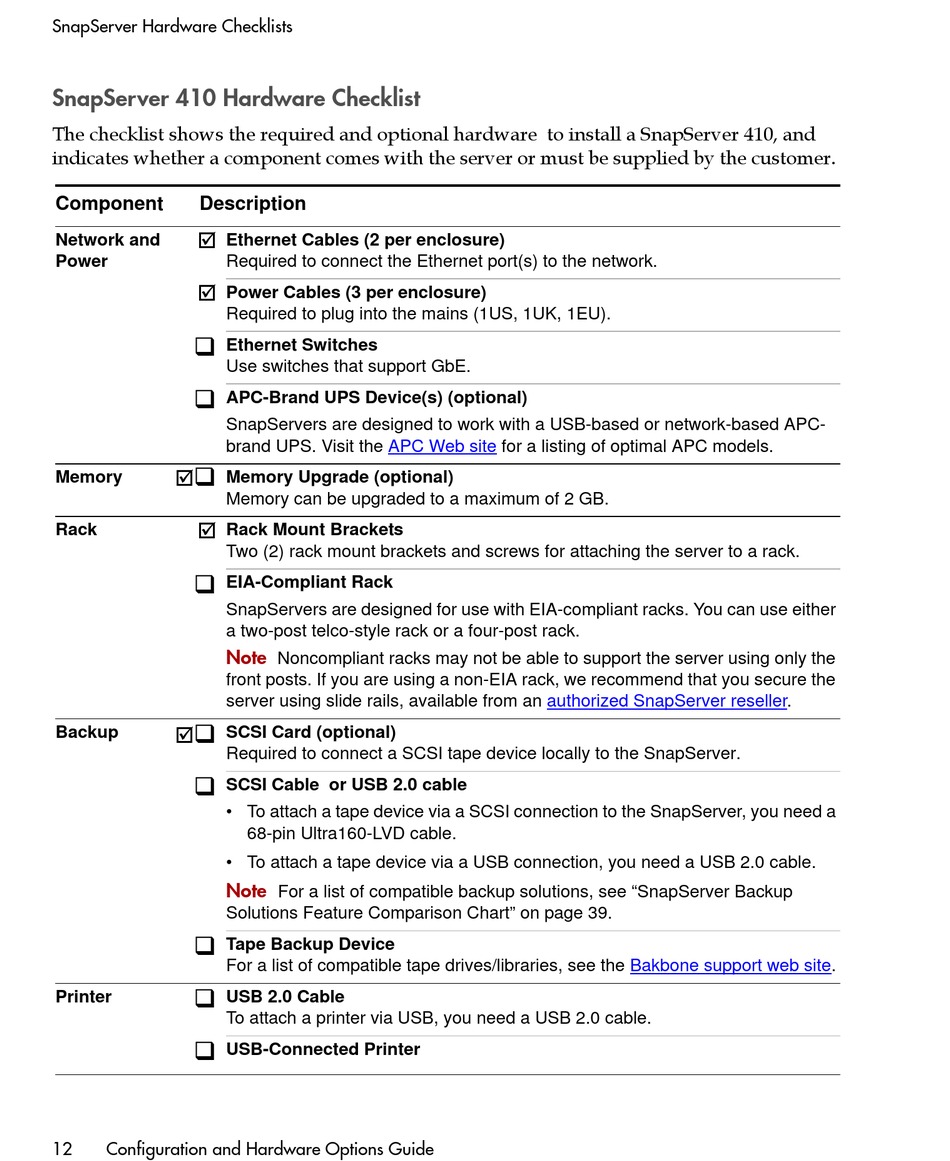

SnapServer 410 Hardware Checklist

The checklist shows the required and optional hardware to install a SnapServer 410, and
indicates whether a component comes with the server or must be supplied by the customer.
Component Description
Z
Network and Ethernet Cables (2 per enclosure)
Power Required to connect the Ethernet port(s) to the network.
Z
Power Cables (3 per enclosure)
Required to plug into the mains (1US, 1UK, 1EU).
̌
Ethernet Switches
Use switches that support GbE.
̌
APC-Brand UPS Device(s) (optional)
SnapServers are designed to work with a USB-based or network-based APC-
brand UPS. Visit the
̌
Z
Memory Memory Upgrade (optional)
Memory can be upgraded to a maximum of 2 GB.
Z
Rack Rack Mount Brackets
Two (2) rack mount brackets and screws for attaching the server to a rack.
̌
EIA-Compliant Rack
SnapServers are designed for use with EIA-compliant racks. You can use either
a two-post telco-style rack or a four-post rack.
Note
front posts. If you are using a non-EIA rack, we recommend that you secure the
server using slide rails, available from an
̌
Z
Backup SCSI Card (optional)
Required to connect a SCSI tape device locally to the SnapServer.
̌
SCSI Cable or USB 2.0 cable
• To attach a tape device via a SCSI connection to the SnapServer, you need a
• To attach a tape device via a USB connection, you need a USB 2.0 cable.
Note
Solutions Feature Comparison Chart" on page 39.
̌
Tape Backup Device
For a list of compatible tape drives/libraries, see the
̌
Printer USB 2.0 Cable
To attach a printer via USB, you need a USB 2.0 cable.
̌
USB-Connected Printer
12 Configuration and Hardware Options Guide
APC Web site
Noncompliant racks may not be able to support the server using only the
68-pin Ultra160-LVD cable.
For a list of compatible backup solutions, see "SnapServer Backup
for a listing of optimal APC models.
authorized SnapServer
Bakbone support web
reseller.
site.
