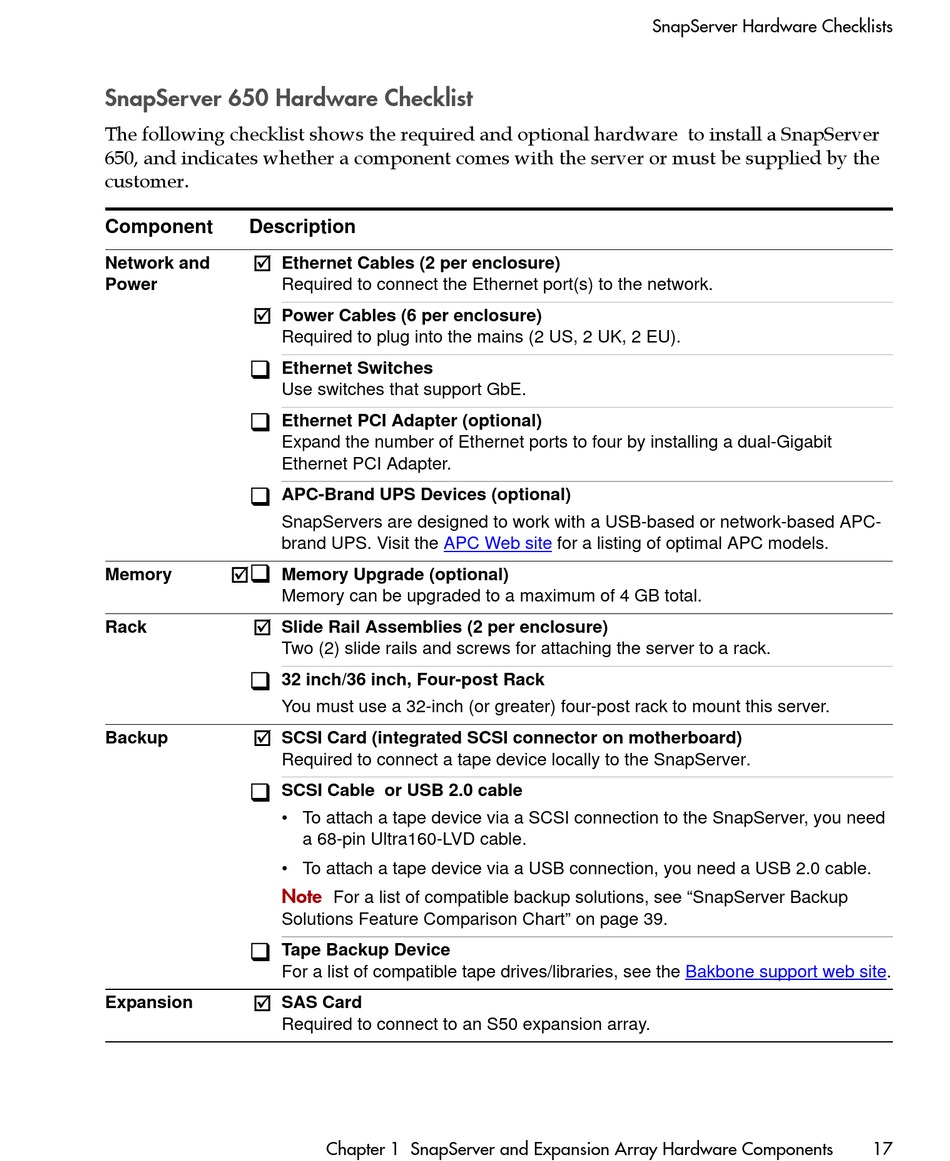

SnapServer 650 Hardware Checklist

The following checklist shows the required and optional hardware to install a SnapServer
650, and indicates whether a component comes with the server or must be supplied by the
customer.
Component Description
Z
Network and Ethernet Cables (2 per enclosure)
Power Required to connect the Ethernet port(s) to the network.
Z
Power Cables (6 per enclosure)
Required to plug into the mains (2 US, 2 UK, 2 EU).
̌
Ethernet Switches
Use switches that support GbE.
̌
Ethernet PCI Adapter (optional)
Expand the number of Ethernet ports to four by installing a dual-Gigabit
Ethernet PCI Adapter.
̌
APC-Brand UPS Devices (optional)
SnapServers are designed to work with a USB-based or network-based APC-
brand UPS. Visit the
̌
Z
Memory Memory Upgrade (optional)
Memory can be upgraded to a maximum of 4 GB total.
Z
Rack Slide Rail Assemblies (2 per enclosure)
Two (2) slide rails and screws for attaching the server to a rack.
̌
32 inch/36 inch, Four-post Rack
You must use a 32-inch (or greater) four-post rack to mount this server.
Z
Backup SCSI Card (integrated SCSI connector on motherboard)
Required to connect a tape device locally to the SnapServer.
̌
SCSI Cable or USB 2.0 cable
• To attach a tape device via a SCSI connection to the SnapServer, you need
• To attach a tape device via a USB connection, you need a USB 2.0 cable.
Note
Solutions Feature Comparison Chart" on page 39.
̌
Tape Backup Device
For a list of compatible tape drives/libraries, see the
Z
Expansion SAS Card
Required to connect to an S50 expansion array.
APC Web site
a 68-pin Ultra160-LVD cable.
For a list of compatible backup solutions, see "SnapServer Backup
Chapter 1 SnapServer and Expansion Array Hardware Components
SnapServer Hardware Checklists
for a listing of optimal APC models.
Bakbone support web site.
