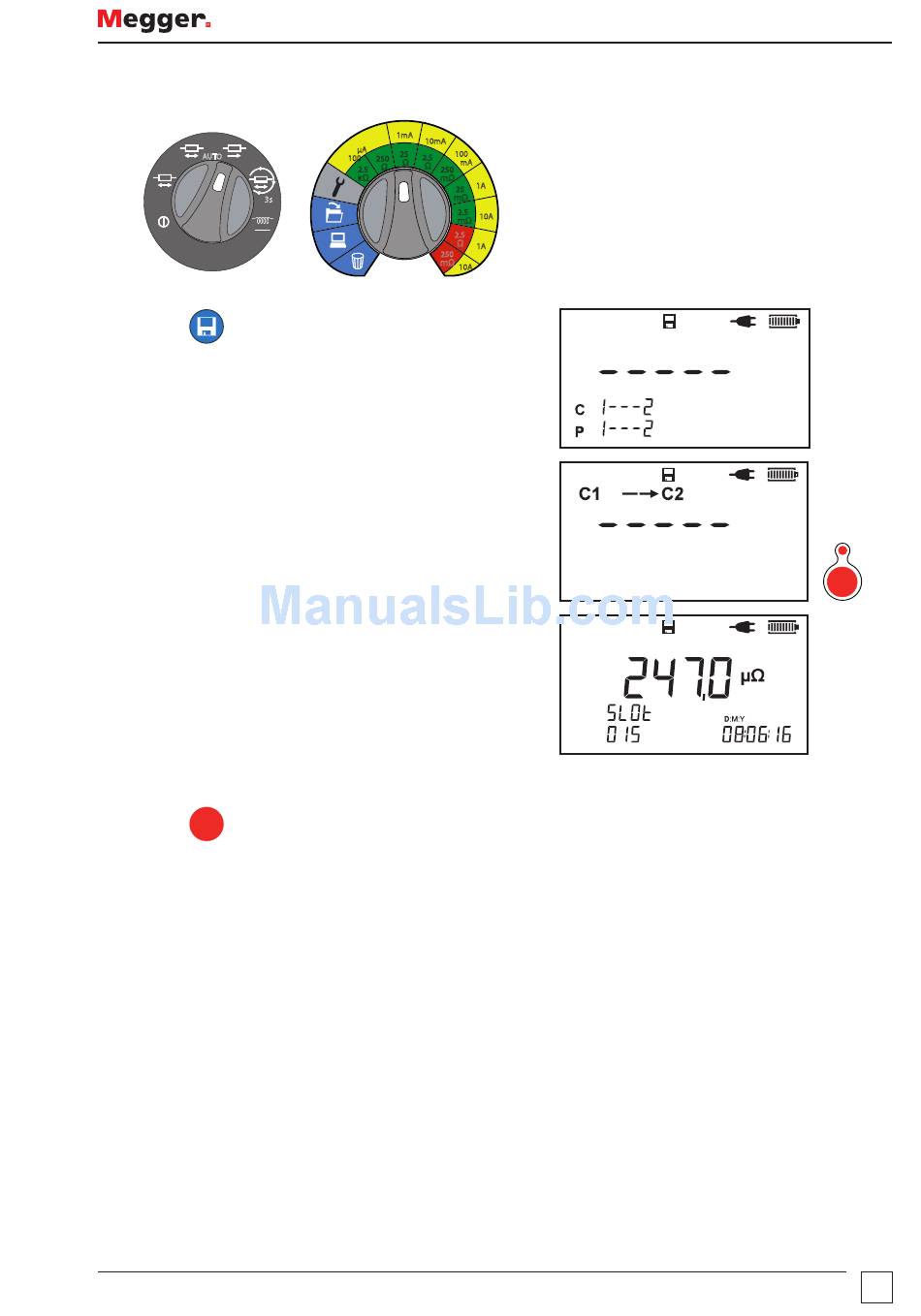

Automatic Uni-directional Test

AUTO
3s
1. Press (acknowledged by a beep sound).
Save is available until the memory has 200 test records.
2. Connect the test leads to the test piece.
Test starts (LED shows red).
Arrow direction animated (based on current direction)
and plateau.
3. Test results for the currently connected test piece are
shown.
4. Test results are saved and their memory slot number is
shown. The Save screen is shown for three seconds.
5. The test automatically continues for the next connected
test piece.
TEST
6. Press to stop the test.
