Tests with Automatic Save (DLROHD10X)

Tests with Automatic Save (DLROHD10X)
This section details the instruments test procedures, which can be automatically saved.
For information on test lead connection to a test piece, see

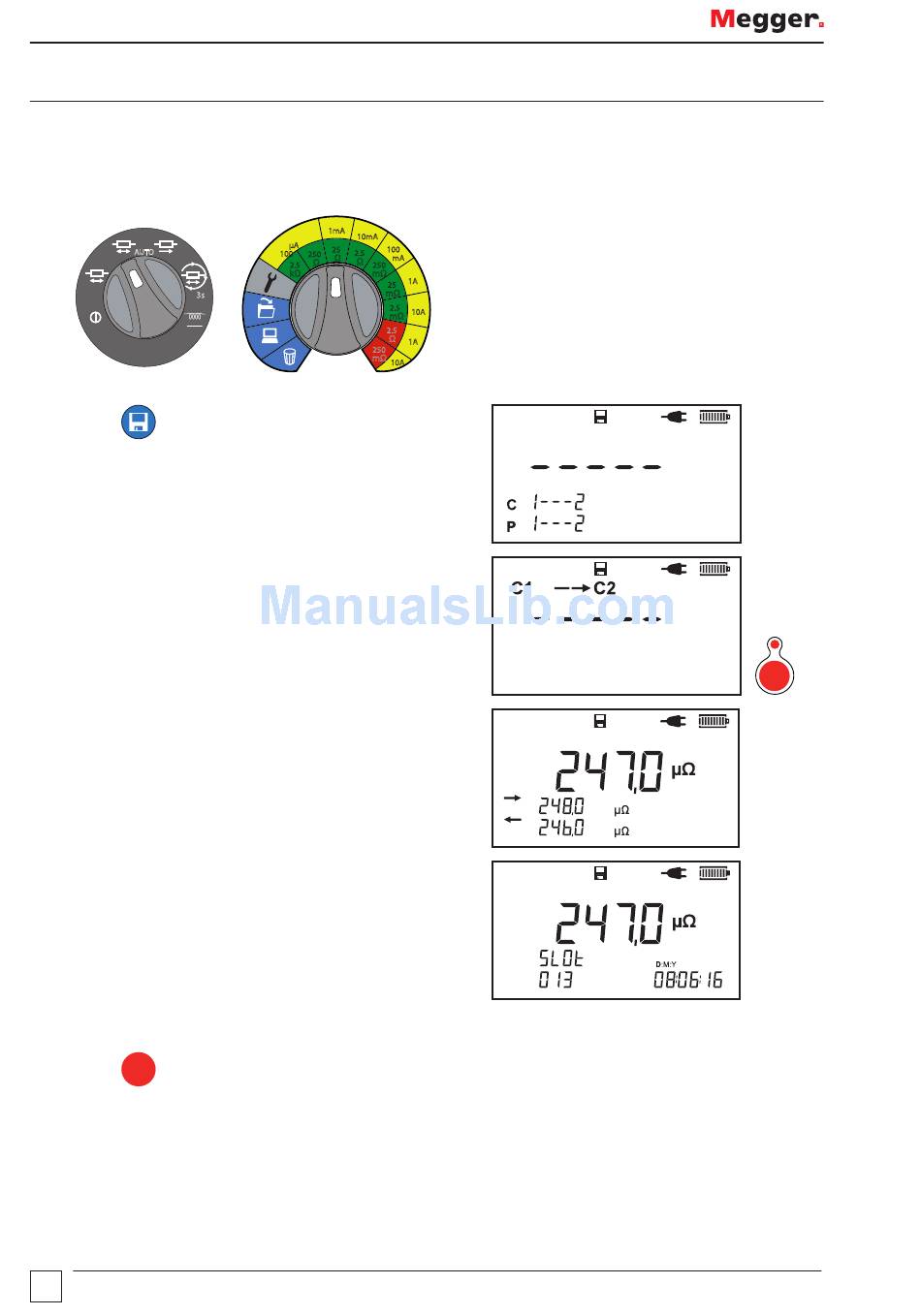

Automatic Bi-directional Test

AUTO
3s
1. Press (acknowledged by a beep sound).
Save function is available until the memory has 200 test
records.
2. Connect the test leads to the test piece.
Test starts (LED shows red).
Arrow direction animated (based on current direction)
and plateau.
3. Test results for the currently connected test piece are
shown.
Test results are saved and their memory slot number is
shown. The Save screen is shown for three seconds.
4. The test automatically continues for the next connected
test piece.
TEST
5. Press to stop the test.
DLRO10HD and DLRO10HDX
18
Test Lead Connection (page
1mA
10mA
µA
100
25
2.5
100 250
Ω
mA
Ω
Ω
2.5 250
kΩ mΩ
1A
25
mΩ
2.5
10A
mΩ
2.5
Ω
1A
250
mΩ
10A
11).
TEST
