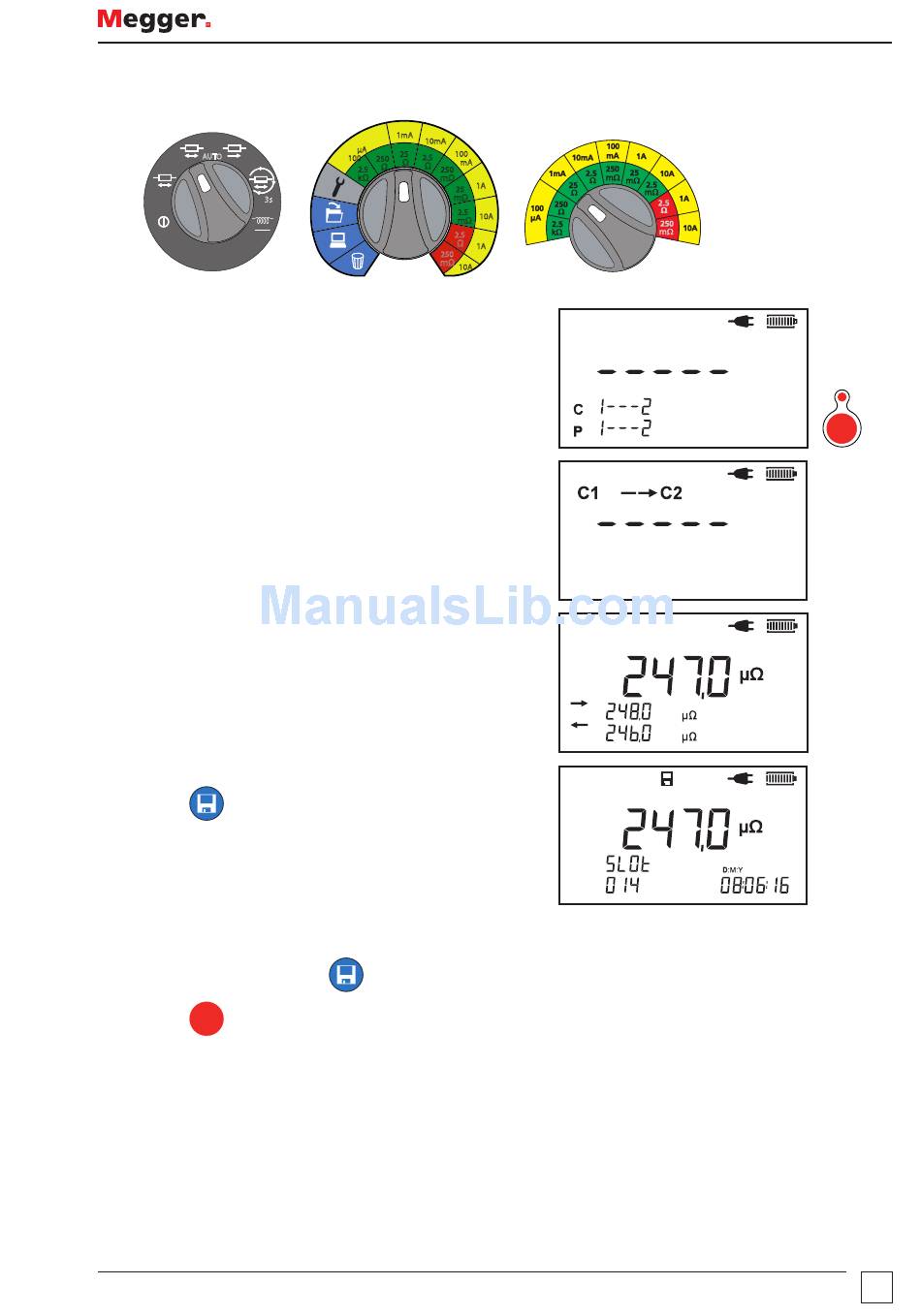

Automatic Bi-directional Test

AUTO
3s
1. Connect the test leads to the test piece.
Test starts (LED shows red).
Arrow direction animated (based on current direction)
and plateau.
2. Test results for the currently connected test piece are
shown.
3. DLRO10HDX only: Save test results (if required).
Press . The test result is saved and the memory slot
number is shown.
The Save screen is shown for three seconds.
4. The test automatically continues for subsequent
connected test piece.
5. DLRO10HDX only: Press
TEST
6. Press to stop the test.
www.megger.com
1mA
10mA
µA
25 100
100 2.5
250
Ω
mA
Ω
Ω
2.5 250
kΩ mΩ
1A
25
mΩ
2.5
10A
mΩ
2.5
Ω
1A
250
mΩ
10A
as required.
DLRO10HD and DLRO10HDX
Tests
TEST
