Overview

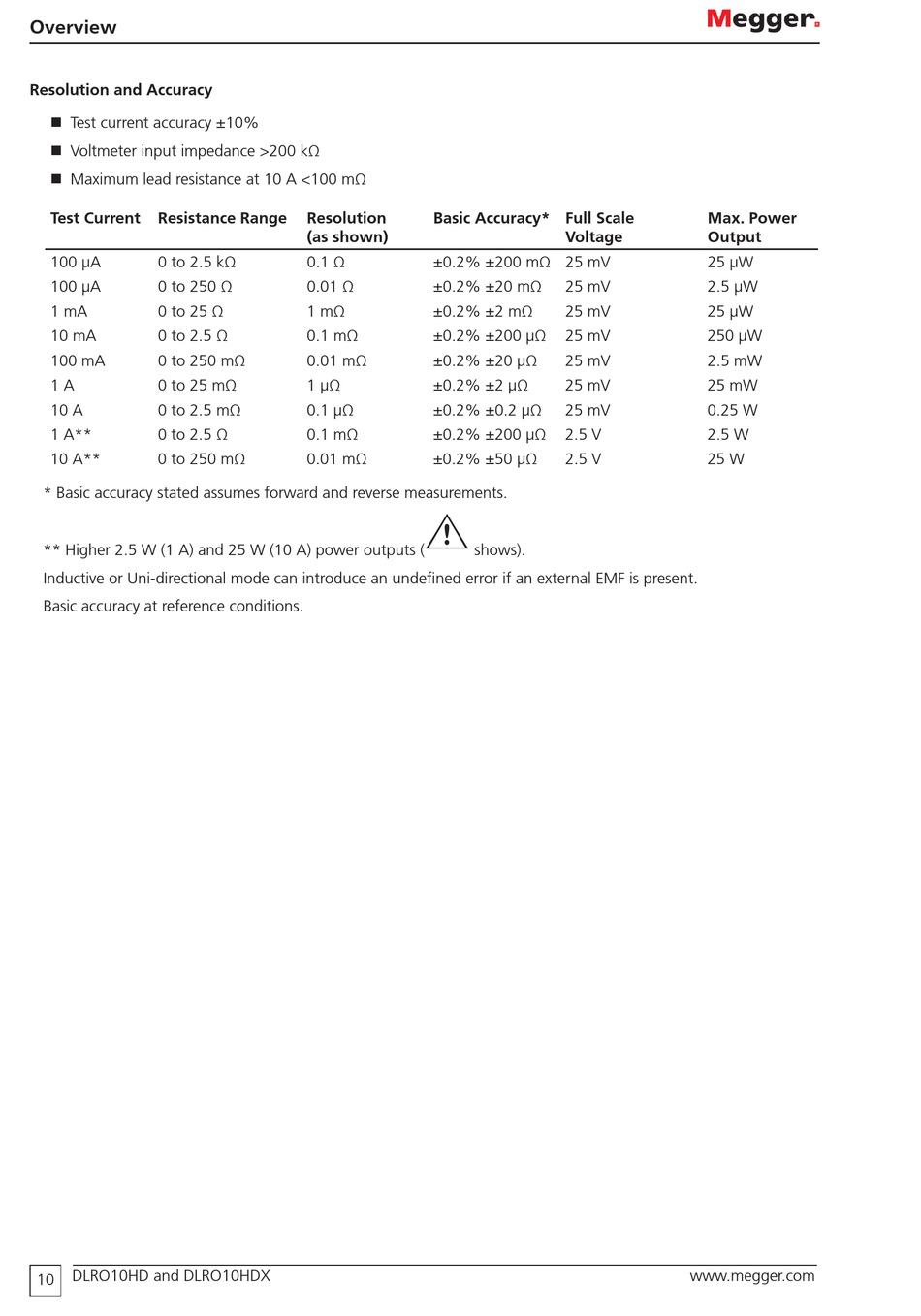

Resolution and Accuracy

„ Test current accuracy ±10%
„ Voltmeter input impedance >200 kΩ
„ Maximum lead resistance at 10 A <100 mΩ
Test Current Resistance Range
100 µA 0 to 2.5 kΩ
100 µA 0 to 250 Ω
1 mA 0 to 25 Ω
10 mA 0 to 2.5 Ω
100 mA 0 to 250 mΩ
1 A 0 to 25 mΩ
10 A 0 to 2.5 mΩ
1 A** 0 to 2.5 Ω
10 A** 0 to 250 mΩ
* Basic accuracy stated assumes forward and reverse measurements.
** Higher 2.5 W (1 A) and 25 W (10 A) power outputs (
Inductive or Uni-directional mode can introduce an undefined error if an external EMF is present.
Basic accuracy at reference conditions.
DLRO10HD and DLRO10HDX
10
Resolution Basic Accuracy* Full Scale
(as shown)
0.1 Ω ±0.2% ±200 mΩ 25 mV
0.01 Ω ±0.2% ±20 mΩ
1 mΩ ±0.2% ±2 mΩ
0.1 mΩ ±0.2% ±200 µΩ
0.01 mΩ ±0.2% ±20 µΩ
1 µΩ ±0.2% ±2 µΩ
0.1 µΩ ±0.2% ±0.2 µΩ
0.1 mΩ ±0.2% ±200 µΩ
0.01 mΩ ±0.2% ±50 µΩ
G
shows).
Max. Power
Voltage Output
25 µW
25 mV 2.5 µW
25 mV 25 µW
25 mV 250 µW
25 mV 2.5 mW
25 mV 25 mW
25 mV 0.25 W
2.5 V 2.5 W
2.5 V 25 W
