Quick Start Guide
This quick start guide describes how to install and use the
hardened Ethernet Switch. This is the switch of choice for
harsh environments constrained by space.

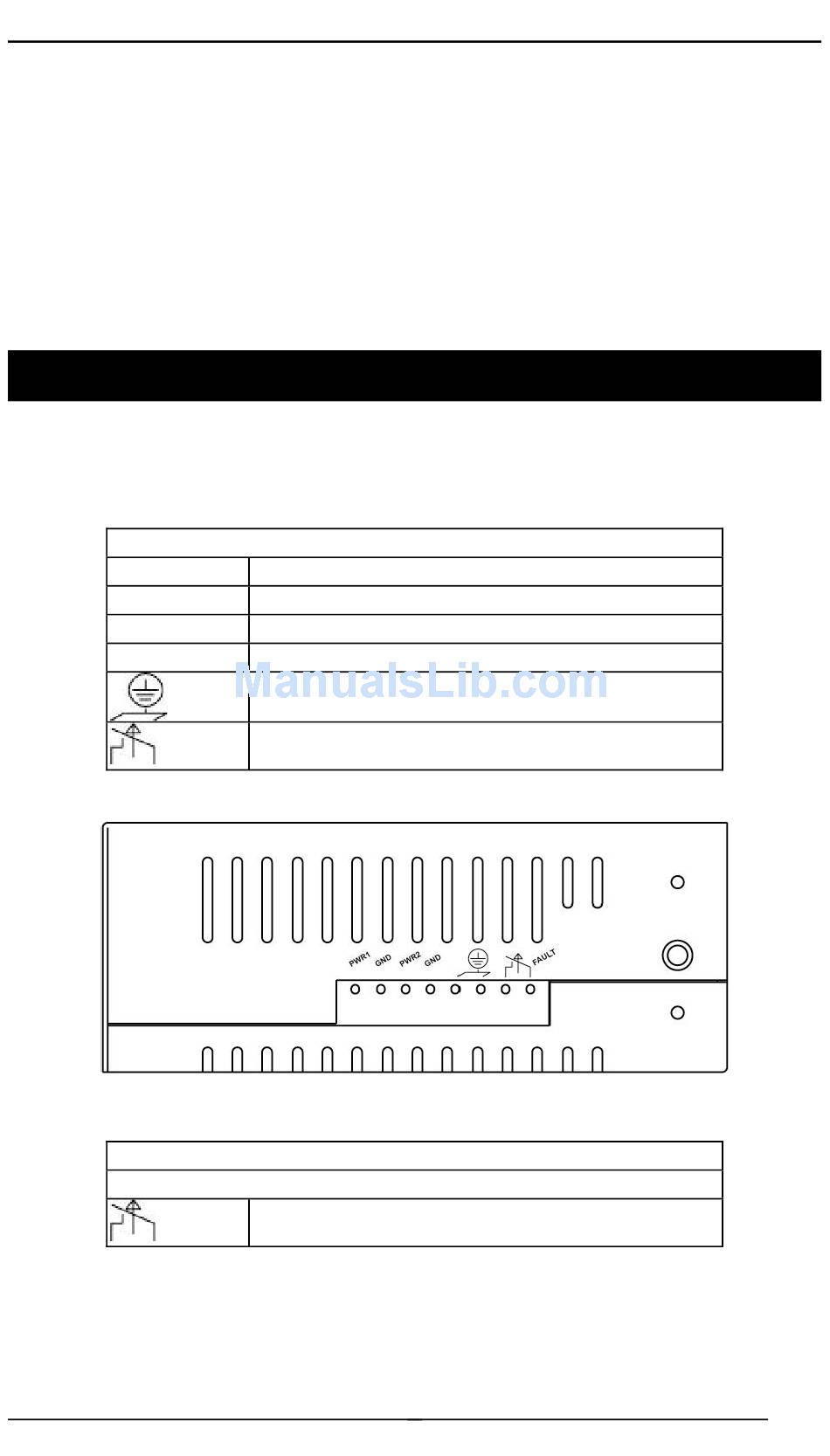

Physical Description
The Terminal Block and Power inputs
The Terminal Block
PWR1
GND
PWR2
GND
The DC Power Inputs
12VDC DC JACK

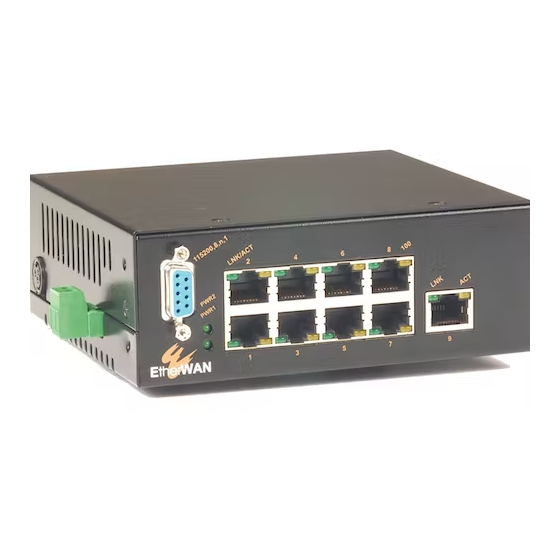

Hardened Ethernet Switch
Power Input 1 (12 to 30VDC)
Power Ground
Power Input 2 (12 to 30VDC)
Power Ground
Earth Ground
The relay opens if PWR1 or PWR2 fails (1A)
FAULT
FAULT The relay opens if PWR1 or PWR2 fails (1A)
1
Advertisement
Table of Contents
Related Manuals for EtherWAN EX93000
Summary of Contents for EtherWAN EX93000
-
Page 1: Quick Start Guide
Hardened Ethernet Switch Quick Start Guide This quick start guide describes how to install and use the hardened Ethernet Switch. This is the switch of choice for harsh environments constrained by space. Physical Description The Terminal Block and Power inputs The Terminal Block PWR1 Power Input 1 (12 to 30VDC) -
Page 2: The 10/100Base-Tx And 100Base-Fx Connectors
Hardened Ethernet Switch DC Terminal Block Power Inputs: There are two pairs of power inputs can be used to power up this media converter. Redundant power supplies function is supported. You only need to have one power input connected to run the Switch. The 10/100Base-TX and 100Base-FX Connectors The 10/100Base-TX Connections The following lists the pinouts of 10/100Base-TX ports. - Page 3 Hardened Ethernet Switch The Port Status LEDs State Indication 10/100TX or 100FX A valid network connection established. Steady LNK/ACT LNK stands for LINK. (Green) Transmitting or receiving data. Flashing ACT stands for ACTIVITY. Light solid yellow for a port transferring Steady at 100Mbps.
- Page 4 Hardened Ethernet Switch Functional Description • Meets NEMA TS1/TS2 Environmental requirements such as temperature, shock, and vibration for traffic control equipment. • Meets IEC61000-6-2 EMC Generic Standard Immunity for industrial environment. • Support 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, Full/half-duplex; Auto MDI/MDIX. • 100Base-FX: Multi mode SC or ST type; Single mode SC or ST type;...
- Page 5 Hardened Ethernet Switch • Dismantling: Pull out the lower edge and then remove the switch from the DIN rail.
-
Page 6: Preface
Hardened Ethernet Switch Preface A member of the growing family of rugged switches, this switch addresses a need for a smaller switch. This switch provides an affordable solution for rugged and outdoor environment, transportation road-side cabinet, industrial floor shop, multitenant dwellings or Fiber To The Home (FTTH) applications. -
Page 7: Table Of Contents
Hardened Ethernet Switch Table of Contents UICK TART UIDE HYSICAL ESCRIPTION The Terminal Block and Power inputs The 10/100Base-TX and 100Base-FX Connectors The Port Status LEDs UNCTIONAL ESCRIPTION SSEMBLY TARTUP ISMANTLING REFACE ABLE OF ONTENTS RODUCT VERVIEW ARDENED THERNET WITCH ACKAGE ONTENTS RODUCT... -
Page 8: Product Overview
Hardened Ethernet Switch Product Overview Hardened Ethernet Switch Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. This Switch User’s Manual External power adapter &... -
Page 9: Basic Features
Hardened Ethernet Switch Product Highlights Basic Features • Meets NEMA TS1 & TS2 Environmental requirements such as temperature, shock, and vibration for traffic control equipment. • Meets IEC61000-6-2 EMC Generic Standard Immunity for industrial environment. • Support 802.3/802.3u/802.3X. • Auto-negotiation: 10/100Mbps, Full/half-duplex; Auto MDI/MDIX. -
Page 10: P Ort Status Leds
Hardened Ethernet Switch Front Panel Display P ower Status (PWR1, PWR2) These LEDs come on when the switch is properly connected to power and turned on. P ort Status LEDs The LEDs display status for each respective port. State Indication 10/100TX or 100FX... - Page 11 Hardened Ethernet Switch Physical Ports This switch provides: • Eight 10/100Base-TX ports • Eight 10/100Base-TX ports + one 100Base-FX port • Six 10/100Base-TX ports + two 100Base-FX ports • Four 10/100Base-TX ports + four 100Base-FX ports Connectivity RJ-45 connectors SC or ST connector on 100Base-FX fiber port.
-
Page 12: Installation
Hardened Ethernet Switch Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. -
Page 13: Din Rail
Hardened Ethernet Switch DIN Rail Mounting Fix the DIN rail attachment plate to the back panel of the switch. Installation: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place. -
Page 14: 12Vdc Dc Jack
Hardened Ethernet Switch Connecting to Power Redundant DC Terminal Block Power Inputs or 12VDC DC Jack: 12VDC DC Jack Step 1: Connect the supplied AC to DC power adapter to the receptacle on the topside of the switch. Step 2: Connect the power cord to the AC to DC power adapter and attach the plug into a standard AC outlet with the appropriate AC voltage. -
Page 15: Alarms For Power Failure
Hardened Ethernet Switch Alarms for Power Failure Step 1: There are two pins on the terminal block are used for power failure detection. It provides the normally closed output when the power source is active. Use this as a dry contact application to send a signal for power failure detection. -
Page 16: Connecting To Your
Hardened Ethernet Switch Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable S ecifications Speed Connector Port Speed... - Page 17 Hardened Ethernet Switch Cabling Step 1: First, ensure the power of the switch and end devices is turned off. <Note> Always ensure that the power is off before any installation. Step 2: Prepare cable with corresponding connectors for each type of port in use.
-
Page 18: Switch
Hardened Ethernet Switch Specifications Hardened Ethernet 10/100Base-TX auto-negotiating ports with RJ-45 connectors, 100Base-FX fiber ports Switch Applicable IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/FX Standards Switching Method Store-and-Forward Forwarding Rate 10Base-T: 10 / 20Mbps half / full-duplex 100Base-TX/FX: 100 / 200Mbps half / full-duplex Performance 148,80pps for 10Mbps 148,810pps for 100Mbps... - Page 19 Hardened Ethernet Switch EN61000-6-2: EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) EN61000-4-11 (Voltage Dips Standards) Environmental Test IEC60068-2-6 Fc (Vibration Resistance) Compliance IEC60068-2-27 Ea (Shock) IEC60068-2-32 Ed (Free Fall) NEMA TS1/2 Environmental requirements for traffic control equipment...
- Page 20 Hardened Ethernet Switch Appendix A – Connector Pinouts Pin arrangement of RJ-45 connectors: RJ-45 Connector and Cable Pins The following table lists the pinout of 10/100Base-TX ports. Regular Ports Uplink port Input Receive Data + Output Transmit Data + Input Receive Data - Output Transmit Data - Output Transmit Data + Input Receive Data +...
