Hardened Web-Smart High Power PoE Ethernet Switch
Quick Start Guide
This quick start guide describes how to install and use the Hardened
Web-Smart High Power PoE (Power over Ethernet) Ethernet Switch. This is
the switch of choice for harsh environments constrained by space.
Physical Description
The Port Status LEDs and Power Inputs
User's Manual
1
Advertisement
Table of Contents
Related Manuals for EtherWAN EX48050-00B
Summary of Contents for EtherWAN EX48050-00B
-
Page 1: Quick Start Guide
Hardened Web-Smart High Power PoE Ethernet Switch Quick Start Guide This quick start guide describes how to install and use the Hardened Web-Smart High Power PoE (Power over Ethernet) Ethernet Switch. This is the switch of choice for harsh environments constrained by space. Physical Description The Port Status LEDs and Power Inputs User’s Manual... - Page 2 Hardened Web-Smart High Power PoE Ethernet Switch State Indication Steady Power on. Power1 Power2 Power off. Power3 Steady Power redundant system failure occurred. Fault Power redundant system failure is not occurred. 10/100Base-TX, 100Base-FX/BX Steady A valid network connection established. Link/ACT Transmitting or receiving data.
-
Page 3: The 10/100Base-Tx And 100Base-Fx/Bx Connectors
Hardened Web-Smart High Power PoE Ethernet Switch The 10/100Base-TX and 100Base-FX/BX Connectors The 10/100Base-TX Connections Pin PoE Ports (Port 1-4) Non-PoE Port (Port 5) The following lists the pinouts of 10/100Base-TX ports. Output Transmit Data + Output Transmit Data + Output Transmit Data - Output Transmit Data - Input Receive Data + Input Receive Data +... -
Page 4: Web Configuration
Hardened Web-Smart High Power PoE Ethernet Switch Supports 1024 MAC addresses. Provides 512K bits memory buffer. Alarms for power and port link failure by relay output. Power Supply: Redundant 55VDC Terminal Block power inputs and 55VDC DC JACK with optional 100-240VAC external power supply. Operating voltage and Max. - Page 5 Hardened Web-Smart High Power PoE Ethernet Switch Enter the factory default user name: admin. Enter the factory default password: admin. Then click on the “OK” button to log on to the switch. User’s Manual...
-
Page 6: Preface
Hardened Web-Smart High Power PoE Ethernet Switch Preface This manual describes how to install and use the Hardened Web-Smart High Power PoE Ethernet Switch. This switch introduced here is designed to deliver full scalability with web-based management functions. Capable of operating at temperature extremes of -40℃... -
Page 7: Table Of Contents
Hardened Web-Smart High Power PoE Ethernet Switch Table of Contents Quick Start Guide HYSICAL ESCRIPTION The Port Status LEDs and Power Inputs The 10/100Base-TX and 100Base-FX/BX Connectors UNCTIONAL ESCRIPTION ONFIGURATION Preface Table of Contents Product Overview ARDENED MART OWER THERNET WITCH ACKAGE ONTENTS... - Page 8 Hardened Web-Smart High Power PoE Ethernet Switch Port Configuration Bandwidth Control Broadcast Storm Control Max. Packet Length Port Alarm Setting VLAN S ETTING Multi to 1 Setting Tag Based VLAN Port Based VLAN ETTING Class of Service Configuration High Priority Queue Configuration Customization Diffserv PoE System Settings PoE Port Settings...
-
Page 9: Product Overview

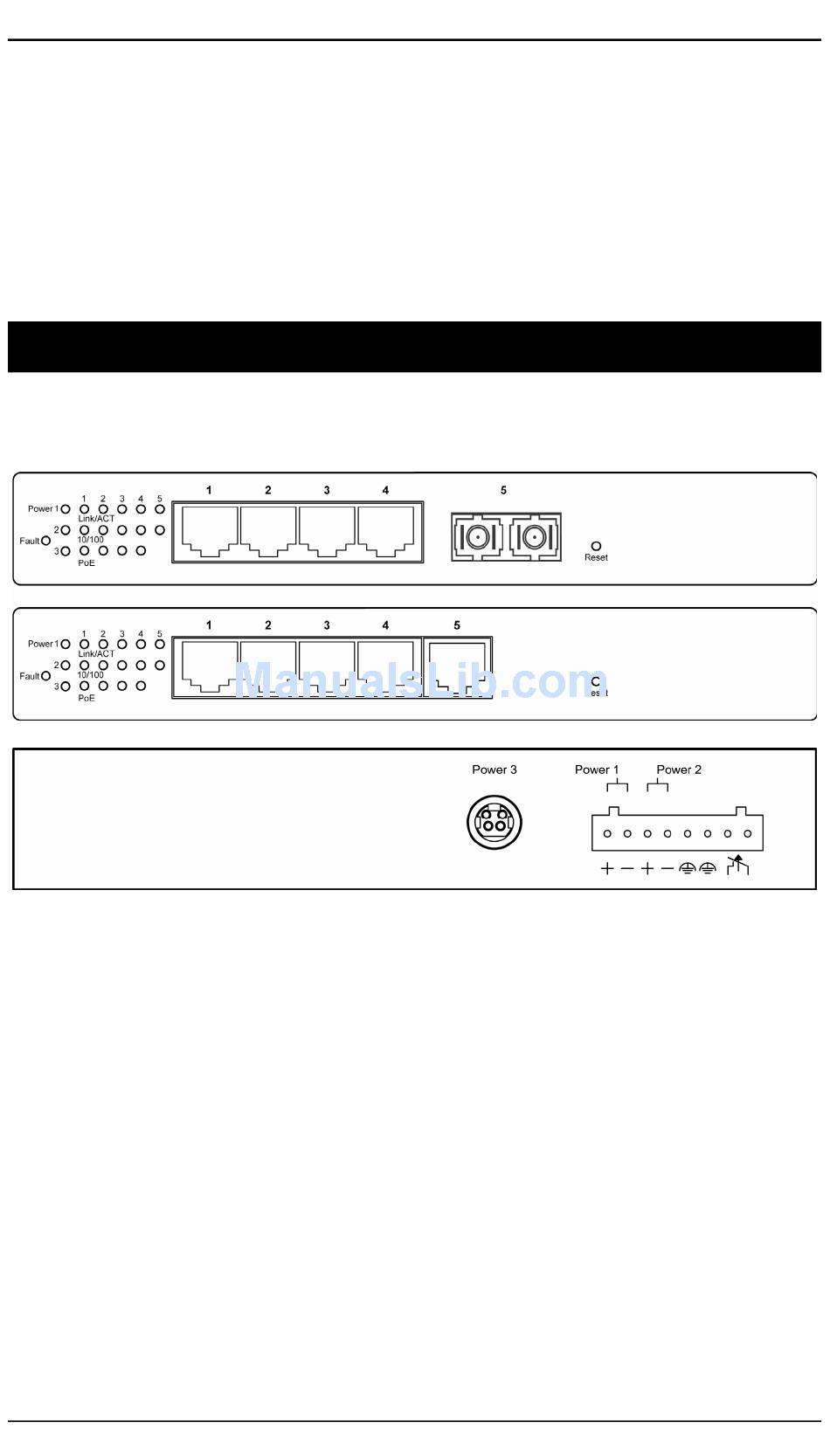

Hardened Web-Smart High Power PoE Ethernet Switch Product Overview Hardened Web-Smart High Power PoE Ethernet Switch Front and Back View Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. -
Page 10: Product Highlights
Hardened Web-Smart High Power PoE Ethernet Switch Product Highlights Basic Features Meets NEMA TS2 Environmental requirements such as temperature, shock, and vibration for traffic control equipment. Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment. Manageable via Web browser interface. Port 1 –... -
Page 11: Front Panel Display
Hardened Web-Smart High Power PoE Ethernet Switch Front Panel Display Power (Power1, Power2, Power3) This LED comes on when the switch is properly connected to power and turned on. P ort Status LEDs The LEDs are located on the front panel, displaying status for each respective port. -
Page 12: Physical Ports
Hardened Web-Smart High Power PoE Ethernet Switch Physical Ports The Hardened Web-Smart High Power PoE Ethernet Switch provides: CONNECTIVITY RJ-45 connectors on TX ports ST or SC connector on 100Base-FX fiber port SC connector on 100Base-BX fiber port MODE SELECTION 10Base-T full-duplex mode 10Base-T half-duplex mode 100Base-TX full-duplex mode... -
Page 13: Installation
Hardened Web-Smart High Power PoE Ethernet Switch Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. -
Page 14: 55Vdc Dc Jack
Hardened Web-Smart High Power PoE Ethernet Switch 55VDC DC Jack Step 1: Connect the supplied AC to DC power adapter to the receptacle on the back side of the switch. Step 2: Connect the power cord to the AC to DC power adapter and attach the plug into a standard AC outlet with the appropriate AC voltage. -
Page 15: Connecting To Your Network
Hardened Web-Smart High Power PoE Ethernet Switch Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable Specifications Speed Connector... - Page 16 Hardened Web-Smart High Power PoE Ethernet Switch desired device. Step 5: Once the connections between two end devices are made successfully, turn on the power and the switch is operational. User’s Manual...
-
Page 17: Switch Management
Hardened Web-Smart High Power PoE Ethernet Switch Switch Management This chapter explains the methods that you can use to configure management access to the switch. It describes the types of management applications and the communication and management protocols that deliver data between your management device (workstation or personal computer) and the system. -
Page 18: Web Management
Hardened Web-Smart High Power PoE Ethernet Switch Web Management The switch provides a browser interface that lets you configure and manage the switch remotely. After you set up your IP address for the switch, you can access the switch’s web interface applications directly in your web browser by entering the IP address of the switch. -
Page 19: Web-Based Browser Management
Hardened Web-Smart High Power PoE Ethernet Switch Web-Based Browser Management The switch provides a web-based browser interface for configuring and managing the switch. This interface allows you to access the switch using a preferred web browser. This chapter describes how to configure the switch using its web-based browser interface. - Page 20 Hardened Web-Smart High Power PoE Ethernet Switch USER NAME Enter the factory default user name: admin. PASSWORD Enter the factory default password: admin. Or enter a user-defined password if you followed the instructions later and changed the factory default password. Then click on the “OK”...
-
Page 21: Understanding The Browser Interface
Hardened Web-Smart High Power PoE Ethernet Switch Understanding the Browser Interface The web browser interface provides groups of point-and-click buttons at the left field of the screen for configuring and managing the switch. Administrator Authentication Configuration, System IP Configuration, System Status, Load Default Setting, Firmware Update, Reset Device Port Management Port Configuration, Bandwidth Control, Broadcast Storm Control, Max. - Page 22 Hardened Web-Smart High Power PoE Ethernet Switch PoE System Settings, PoE Port Settings, PoE Scheduling Port Security Configuration Backup/Recovery Logout User’s Manual...
-
Page 23: Administrator
Hardened Web-Smart High Power PoE Ethernet Switch Administrator Authentication Configuration Username: Click in “Username” text box and type in a new username. Password: Click in “Password” text box and type in a new password. Confirm: Click in “Confirm” text box. Type the same password in “Password”... -
Page 24: System Ip Configuration
Hardened Web-Smart High Power PoE Ethernet Switch System IP Configuration IP Address: Click in “IP Address” text box and type a new address to change the IP Address. Subnet Mask: Click in “Subnet Mask” text box and type a new address to change the Subnet Mask. -
Page 25: System Status
Hardened Web-Smart High Power PoE Ethernet Switch System Status Comment: Click in “Comment” text box and type a new comment for this Switch. Idle Time Security: Click and choose “Idle Time Security” to enable or disable protection security for managing the Switch after a period of idle time. -
Page 26: Load Default Setting
Hardened Web-Smart High Power PoE Ethernet Switch Load Default Setting Load: Click “Load” button to restore the default setting of the Switch excluding the IP Address, User Name, and Password. User’s Manual... -
Page 27: Firmware Update
Hardened Web-Smart High Power PoE Ethernet Switch Firmware Update Password: Click in “Password” text box and type in the password. ReConfirm: Click in “ReConfirm” text box. Type the same password in “Password” text box again to verify it. Update: Click “Update” button to continue the Firmware Update process. User’s Manual... -
Page 28: Reset Device
Hardened Web-Smart High Power PoE Ethernet Switch Reset Device Confirm: Click “Confirm” button to reboot the Switch. User’s Manual... -
Page 29: Port Management
Hardened Web-Smart High Power PoE Ethernet Switch Port Management Port Configuration Port No.: Click “Port No.” drop-down menu to choose port from “Port No.” drop-down list. Name: Click the “Name” check box. Then click in “Name” text box and type a name for the port. Port name can only use “a-z”, “A-Z”, “0-9”, “_”, “＋”, “－”, and “＝”. -
Page 30: Bandwidth Control
Hardened Web-Smart High Power PoE Ethernet Switch Bandwidth Control Port No.: Click “Port No.” drop-down menu to choose port from “Port No.” drop-down list. TX Rate: Click “TX Rate” drop-down menu to choose the transmission rate from the “TX Rate” drop-down list for the port. RX Rate: Click “RX Rate”... -
Page 31: Broadcast Storm Control
Hardened Web-Smart High Power PoE Ethernet Switch Broadcast Storm Control Broadcast storm protection: Click the “Enable” check box to enable broadcast storm protection for the Switch. Update: Click “Update” button to update your settings. User’s Manual... -
Page 32: Max. Packet Length
Hardened Web-Smart High Power PoE Ethernet Switch Max. Packet Length Packet Length (Bytes): Click and choose “1536 (default)” or “1552” to set maximum 1536 (default Packet Length for the Switch) or 1552 Bytes packet length for the Switch. Update: Click “Update” button to update your settings. User’s Manual... -
Page 33: Port Alarm Setting
Hardened Web-Smart High Power PoE Ethernet Switch Port Alarm Setting Port: Click “Port” drop-down menu to choose port from the “Port” drop-down list. Trigger Enabled: Click “Trigger Enabled” drop-down menu to choose “YES” or “NO” from the “Trigger Enabled” drop-down list to enable or disable Trigger for the port. -
Page 34: Vlan Setting
Hardened Web-Smart High Power PoE Ethernet Switch VLAN Setting Multi to 1 Setting Destination PortNo: Click “Destination PortNo” drop-down menu to choose destination port from the “Destination PortNo” drop-down list. Update: Click “Update” button to update your settings. Restore: Click “Restore” button to restore the previous VLAN configuration. -
Page 35: Tag Based Vlan
Hardened Web-Smart High Power PoE Ethernet Switch Tag Based VLAN Tag Vlan Function: Click and choose “Enable” or “Disable” to enable or disable Tag Based VLAN for the Switch. Update: Click “Update” button to update your settings. Tag Mode: Click and choose “Add Tag”, “Don’t Care”, or “Remove Tag” for each port. -
Page 36: Port Based Vlan
Hardened Web-Smart High Power PoE Ethernet Switch Port Based VLAN Port NO: Click “Port NO” drop-down menu to choose port from the “Port NO” drop-down list. VLAN Member: Click and choose ports to be added to port number. Update: Click “Update” button to update your settings. LoadDefault: Click “LoadDefault”... -
Page 37: Qos Setting
Hardened Web-Smart High Power PoE Ethernet Switch QoS Setting Class of Service Configuration PortBase: Click the check box to enable PortBase mode high priority for port. VLAN Tag/IP/DS: Click the check box to enable VLAN Tag/IP/DS mode high priority for port. Update: Click “Update”... -
Page 38: High Priority Queue Configuration
Hardened Web-Smart High Power PoE Ethernet Switch High Priority Queue Configuration Mode: Click and choose Weight-Round-Robin Low weight to 1/4 or 1/8 for the Switch. Update: Click “Update” button to update your settings. User’s Manual... -
Page 39: Customization Diffserv
Hardened Web-Smart High Power PoE Ethernet Switch Customization Diffserv Index: Click “Index” drop-down menu to choose DiffServ Index from the “Index” drop-down list. Enable: Click “Enable” button to enable the Diffserv Index. Disable: Click “Disable” button to disable the Diffserv Index. <Note>... -
Page 40: Poe
Hardened Web-Smart High Power PoE Ethernet Switch PoE System Settings System power budget: Click in “System power budget” text box and type a new system power budget. Update: Click “Update” button to update your settings. User’s Manual... -
Page 41: Poe Port Settings
Hardened Web-Smart High Power PoE Ethernet Switch PoE Port Settings Port: Click “Port” drop-down menu to choose port from the “Port” drop-down list. Enable Mode: Click “Enable Mode” drop-down menu to choose “Enable”, “Disable”, or “Scheduling from the “Enable Mode” drop-down list to enable, disable, or schedule Port 1 ~ Port 4 to discover Powered Device (PD) connected to Port 1 ~ Port 4 of the Switch. -
Page 42: Poe Scheduling
Hardened Web-Smart High Power PoE Ethernet Switch PoE Scheduling Adjust RTC Time: Adjust system time for this Switch. Year(2000-2037): Click in “Year” text box and specify year 2000 to 2037. Month: Click in “Month” text box and specify 1 to 12. Day: Click in “Day”... - Page 43 Hardened Web-Smart High Power PoE Ethernet Switch Time: Click the “Time” check box to enable PoE scheduling to this port during these time periods. Update: Click “Update” button to update your settings. Status Port: Click “Port” drop-down menu to choose port from the “Port” drop-down list.
-
Page 44: Port Security
Hardened Web-Smart High Power PoE Ethernet Switch Port Security Port: Click the “Enable” check box to enable Port Security for each port. After power on reset, each port will record the source MAC address of first received packet as a Security MAC address. A security port only allows the packet which has the Security MAC address to active on. -
Page 45: Configuration Backup/Recovery
Hardened Web-Smart High Power PoE Ethernet Switch Configuration Backup/Recovery Backup(Switch→PC): Click “Download” button to download EEPROM contents. Recovery(PC→Switch) Select the image file: Click “Browse” button to select the image file to be recovered to the Switch. Password: Click in “Password” text box and type in the password. Update: Click “Update”... -
Page 46: Logout
Hardened Web-Smart High Power PoE Ethernet Switch Logout Yes: Click “Yes” button to logout of the Switch. No: Click “No” button to cancel the logout of the Switch. User’s Manual... -
Page 47: Specifications
Hardened Web-Smart High Power PoE Ethernet Switch Specifications Applicable Standards IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX Store-and-Forward Switching Method Forwarding Rate 10Base-T 10Mbps half / full-duplex 100Base-TX 100Mbps half / full-duplex 100Base-FX/BX 100Mbps full-duplex Performance 14,880pps for 10Mbps 148,810pps for 100Mbps Cable 10Base-T 4-pair UTP/STP Cat.
