EX17082, EX17162, and EX17242
Web-Smart Switches
FastFind Links
Introduction
User's Guide
Unpacking and Installation
Preparing to Configure the Switch
Configuring the Switch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX17082 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EtherWAN EX17082

Summary of Contents for EtherWAN EX17082

  • Page 1 EX17082, EX17162, and EX17242 Web-Smart Switches FastFind Links Introduction User’s Guide Unpacking and Installation Preparing to Configure the Switch Configuring the Switch...
  • Page 2 Disclaimer of Liability The information contained in this document is subject to change without notice. EtherWAN is not liable for any errors or omissions contained herein or for resulting damage in connection with the information provided in this manual.

  • Page 3: Preface

    This section provides a history of the revision changes to this document. Revision Document Version Date Description Version 1 08/05/2014 Initial release Changes in this Revision N/A - this is first version of this document. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 4: Document Conventions

    [ ] square Indicates optional values. brackets { } braces Indicates required or expected values. | vertical bar Indicates that you have a choice between two or more options or arguments. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 5: References To Switch Models

    References to Switch Models This guide covers the EX17082, EX17162, and EX17242 Web-Smart Switches from EtherWAN Systems, Inc. When information in this guide applies to both models, the models are referred to collectively as “the switch.” If information applies to specific models only, those models are identified by model name (EX17082, EX17162, or EX17242).

  • Page 6: Table Of Contents

    Installing the Switch ....................20 Preparing the Site ....................21 Installing the Switch ..................... 21 Connecting to the 10/100 Mbps RJ-45 Ports ............24 Connecting to the Gigabit Ethernet Ports ............25 EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 7 Trunking Menu ....................79 Backup/Recovery Menu ..................82 Miscellaneous Menu .................... 85 Logout Menu ....................... 88 5 Troubleshooting ....................89 Troubleshooting Chart ....................90 Additional Troubleshooting Suggestions ..............91 Network Adapter Cards ..................91 EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 8 Configuration ....................... 91 Switch Integrity ....................91 Auto-Negotiation ....................91 Technology ........................ 92 Power ........................93 Mechanical ........................ 93 Interface ........................94 Environment ......................94 Regulatory Approvals ....................94 Index ........................96 viii EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 9: Introduction

    1 Introduction Topics: Congratulations on your purchase of the Web-Smart EX17082, EX17162, or EX17242 Switch from EtherWAN Systems, Inc. Your Key Features (page 11)  switch is a state-of-the-art IEEE-compliant network solution Quick Start Guide (page  designed for users who require high-performance along with the power of management to eliminate bottlenecks and increase productivity.

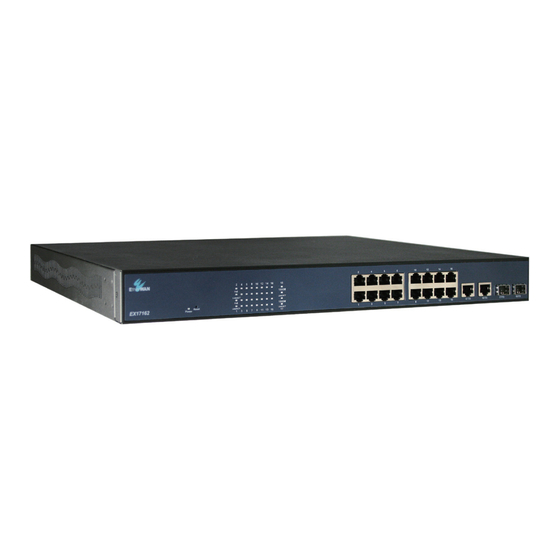

  • Page 10 Figure 1-1. EX17082 Series Switch Figure 1-2. EX17162 Series Switch Figure 1-3. EX17242 Series Switch EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 11: Key Features

    VLAN, QoS mode, QoS priority, and MAC/port-based trunking 100 – 240 VAC, 50 – 60 Hz internal universal power supply  0°C to 45°C (32°F to 113°F) operating temperature range  Supports rack mounting  EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 12: Quick Start Guide

    Connect the other end to one of the 1000 Mbps RJ-45 ports on the front of the switch:  Model EX17082: use ports 9 TX and 10 TX.  Model EX17162: use ports 17 TX and 18 TX.
  • Page 13 Click Administrator > System IP Configuration. Next to IP Configure, click DHCP, or click  Static and enter the IP address, subnet mask, and gateway settings for the network on which you will use the switch. Click Update. Change any other settings, as necessary.  EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 14: Unpacking And Installation

    2 Unpacking and Installation Topics: This chapter describes how to unpack and install the EX17082, EX17162, and EX17242 switches. Unpacking the Hardware  (page 15) System Requirements  (page 15) Hardware Features (page  Installing the Switch (page  Where to Go from Here ...

  • Page 15: Unpacking The Hardware

    One CD containing this user’s guide  If any item is damaged or missing, notify your authorized EtherWAN representative. Keep the carton, including the original packing material, in case you need to store the product or return it. System Requirements...

  • Page 16: Hardware Features

    Hardware Features The following sections describe the hardware features of the EX17082, EX17162, and EX17242 switches. Front Panel Figure 2-2 and Figure 2-3 show the front panels of the switches. 1000 Mbps Reset 10/100 SFP Ports Button Mbps Ports Status LEDs...
  • Page 17 Gigabit Ethernet Ports EX17082, EX17162, and EX17242 switches have four Gigabit Ethernet interfaces in the form of two RJ-45 ports and two fibre optic Small Form Factor Pluggable (SFP) ports. These ports provide a full-duplex 1000 Mbps (1 Gbps) connection, and can be used to connect upstream to other switches or to other devices.

  • Page 18: Reset Button

    SFP. Reset Button The EX17082, EX17162, and EX17242 front panels have a reset button to reset the switch to its factory default settings. This button is recessed to prevent accidental resets of the switch. To reset the switch to its factory default settings and remove all customized overrides you made to the default settings: 1.

  • Page 19: Rear Panel

    Figure 2-6. Rear Panel of the EX17242 Switch Side and Bottom Panels The EX17082, EX17162, and EX17242 side panels have vents for cooling. Be sure these vents are not blocked. The bottom panels have a product label that shows regulatory compliance, product serial number, and other information.

  • Page 20: Installing The Switch

    See page 21. Connecting to the 10/100 Mbps RJ-45 ports. See page 24. Connecting to the Gigabit Ethernet ports. See page 25. Checking the installation. See page 26. Applying AC power. See page 26. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 21: Preparing The Site

    If installing the switch in a rack, attach the supplied rack-mounting brackets to the switch's front  panel (one on each side), and secure them with the screws provided with the equipment rack. For more information, refer to the documentation that came with the equipment rack. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 22 Figure 2-7. EX17082 Switch Dimensions EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 23 Figure 2-8. EX17162 Switch Dimensions EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 24: Connecting To The 10/100 Mbps Rj-45 Ports

    1. Insert one end of a Category 5 or better Ethernet cable into a switch port. 2. Insert the other cable end into the Ethernet port of a computer, printer, network storage, or other network device. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 25: Connecting To The Gigabit Ethernet Ports

    4. Align the SFP module in front of the slot opening. 5. Insert the SFP module into the slot on the switch until you feel the connector on the module snap into place in the rear of the slot. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 26: Checking The Installation

     Applying AC Power EX17082, EX17162, and EX17242 switches have an ON/OFF switch that controls power to the switch. Before you connect the power cord, select an AC outlet that is not controlled by a wall switch, which can turn off power to the switch. After you select an appropriate outlet, use the following procedure to apply AC power.

  • Page 27: Where To Go From Here

    Where to Go from Here After you power-up the switch for the first time, you configure it using the switch’s built-in management software. For more information, see Chapters 3 and 4. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 28: Preparing To Configure The Switch

    7 operating system. If your PC is running an operating system other than Windows 7, refer to the documentation for your operating system to find out how to change the PC’s TCP/IP settings. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 29: Connecting The Pc

    1. Click Start >Control Panel > Network and Internet >View network status and tasks. 2. In the left pane, click Change adapter settings. 3. On the right side of the page, select the connection, right click it, and then select Properties. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 30 0 and 255, except the number 1 because the address 192.168.2.1 is already being used by the switch. 7. Press the Tab key to populate the Subnet mask field automatically. You can leave the Default gateway field blank. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 31: Disabling Proxy Settings

    Click OK until the Internet Options window appears. In the Internet Options window, under Temporary Internet Files, click Settings. For the option Check for newer versions of stored pages, select Every time I visit the webpage. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 32: Disabling Proxy Settings In Firefox

    Select your connection method. If using a wired connection, select Built-in Ethernet. For wireless, select Airport. Click the Proxies tab. Be sure each proxy in the list is unchecked. Click Apply Now to finish. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 33: Disabling Firewall And Security Software

    If you encounter problems connecting to the switch, disable any firewall or security software that may be running on your PC before configuring the switch. For more information, refer to the documentation for your firewall. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 34: Configuring The Switch

    Logging in to the Web  chapter to configure the switch. Management Interface (page 35) Idle Time Security (page  Understanding the Web  Management Interface (page 36) Web Management  Interface Menus (page EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 35: Logging In To The Web Management Interface

    Click OK. The Web management interface starts and the page in Figure 4-2 appears. Note: First-time logins must change the switch’s system IP configuration settings (see page 42) and default username and password (see page 41). EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 36: Idle Time Security

    (see Figure 4-2). The menus and configuration settings for the EX17162 and EX17242 switches are the same. Switch Ports (green = ports in use) Menus Workspace Figure 4-2. Main Areas on the Web Management Interface (EX17162 Switch) EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 37 Note: Depending on the switch model you have, the number of ports shown in the screens in this chapter might differ from the number of ports shown in your Web management screens. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 38: Web Management Interface Menus

    Configure CoS settings based on the protocol associated with packets. Security > MAC Address Binding Binds Media Access Channel (MAC) addresses to switch ports. Security > TCP/UDP Filter Processes or drops incoming packets based on protocols. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 39 Saves and restores the switch configuration. Miscellaneous Configures output queuing aging time, VLAN striding, IGMP snooping versions 1 and 2, and VLAN uplink setting. Logout Logs you out of the current Web management interface session. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 40: Administrator Menu

    Local default settings  returns the switch to its  default configuration. See page 43. Firmware Update  updates the switch firmware.  See page 45. Reboot Device  reboots the switch. See page 46.  EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 41 For security purposes, every typed character is masked as a dot (). 4. Click Update. 5. When a message tells you that the update was successful and prompts you to reboot the switch, click Reboot. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 42 IP Address, Subnet Mask, and Gateway fields with the static IP address information for the switch. The IP address must be unique and must not be used by any other device on the network. 3. Click Update. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 43: System Status Page

    Back to the last display = redisplay the last management page shown.  Update Button After configuring the settings on this page, click this button to commit your settings. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 44 The username and password configured in the Administrator > Authentication  Configuration page. To reset the switch’s IP address, comment, and username and password, reset the switch using the reset button (see “Reset Button” on page 18). EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 45 Path: Administrator > Firmware Update The Firmware Update page lets you upgrade the switch firmware. After you obtain the upgraded firmware file from EtherWAN, use the fields in this page to upgrade the switch firmware. 1. In the Password field, enter the case-sensitive password used to access the Web management interface.
  • Page 46 Path: Administrator > Reboot Device The Reboot Device page has a Confirm button that reboots the switch. This button is functionally equivalent to pressing the reset button on the switch (see “Reset Button” on page 18). EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 47: Port Management Menu

    Broadcast Storm Control  prevents LAN traffic from  being disrupted by a broadcast, multicast, or unicast storm on a port. See page 55. POE  enables or disables PoE on switch ports. See  page 56. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 48 The bottom section is a read-only area that shows the current status and settings of the  switch ports. See “Port Configuration Fields” on page 50. Configure Switch Ports Here Current Status and Settings EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 49: Configuring Switch Ports

    You cannot set backpressure on ports where auto-negotiation is enabled. You can enable backpressure only on ports where the speed and duplex mode are configured manually. Choices are:  Enable = enable backpressure. Disable = disable backpressure.  EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 50: Port Configuration Fields

    Shows whether the use of pause frames is enabled (ON) or disabled (OFF) for the ports. Backpressure Shows whether backpressure is enabled (ON) or disabled (OFF) for the ports. Addr. Learning Shows whether address learning is enabled (ON) or disabled (OFF) for the ports. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 51 – Tx = transmit packets. – Tx & Rx = transmit and receive packets. 3. Next to Source Port, check the ports you want to designate as source ports. 4. Click Update. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 52 The bottom section is a read-only area that shows the current status and setting status of  the switch ports. See “Bandwidth Control Fields” on page 54. Configure Bandwidth Control Here Switch Port Status and Settings EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 53 5. Click Update (or click Load Default to load default values instead). Note: If the link speed of the selected port is lower than the rate you set, the switch uses the link speed value as your setting rate. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 54 Field Description Port No. Port numbers for each switch port. Current Status Tx Rate Port transmission speed. Rx Rate Port receive speed. Link Speed Port link speed. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 55 A higher threshold allows more packets to pass through. 2. Next to Enable Port, check each port to which you want to apply broadcast storm control. 3. Click Update. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 56 Status of the minimum output power. Power POE Class Each POE port detects the class of the attached PD. Update Button After configuring the settings on this page, click this button to commit your settings. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 57: Vlan Setting Menu

    VLAN Setting > VLAN Mode page determine whether the packet is tagged automatically. Each port has a default VLAN ID setting that is user-configurable. The VLAN ID for each port can be changed on the VLAN Mode page. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 58 VLAN Member  allows ports to join a VLAN. See page 63.  Multi to 1 Setting  configures one or more physical  switch ports to a single destination port. See page 66. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 59 VID of the VLAN to which the frame belongs (IEEE 802.3ac standard). This number uniquely identifies each VLAN in a network. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 60 Click Continue to proceed (or click Back to return to the previous page, without changing the VLAN mode). If you clicked Continue, a page similar to the following appears, indicating that the switch is now configured for a port-based VLAN. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 61 1. Click Change VLAN Mode. The following warning appears. Click Continue to proceed (or click Back to return to the previous page, without changing the VLAN mode). If you clicked Continue, a page similar to the following appears. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 62 Next to Tag Mode, click whether the ports should add, ignore, or remove tags in the frames they forward to other nodes on the network. 4. Click Update. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 63 3. Click Update (or click Load Default to load default values instead). The VLAN Member table at the bottom of the page shows read-only settings for the VLAN members associated with each switch port. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 64 Delete and Update buttons on the top-right side of the page let you remove or modify VIDs. To delete a VID, click a VID from the drop-down list, and then click Delete.  EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 65 To modify a VID, click a VID from the drop-down list, check or uncheck the VLAN member  ports and VID source ports as desired, and then click Update. A map of the port VIDs appears at the bottom of the page. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 66 1. Using the Destination Port No. drop-down list, click a destination port number. 2. On the Disable Port row, check each physical port on the switch that you want to exchange packets with the destination port. 3. Click Update. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 67: Per Port Counter Menu

    Per Port Counter Menu The Per Port Counter menu lets you perform the following task: Port Counter  displays the number of packets transmitted  and received for each port. See page 68. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 68 2. Click Update. The page is refreshed and the information you requested is displayed. Buttons at the bottom of the page let you refresh and clear the values shown on the page. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 69: Qos Setting Menu

    Port 802.1p, IP/DS based  uses Class of Service (CoS)  to set up consistent traffic prioritization policies. See page TCP/UDP Port Based  configure CoS settings based on  the protocol associated with packets. See page 72. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 70 3 to 5. Note: A weight value of 0 is treated as a value of 8. 2. Click Update. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 71 For example, to give packets that have VLAN tags and arrive on port 2 a higher priority than packets on other ports that do not have VLAN tags, check VLAN Tag for Port No. 2. 2. Click Update. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 72 The last row on the page lets you specify CoS settings for a user-defined port. 1. In the Port field, enter a port number. In the Mask field, enter a bit number of the 7-bit IP address that you want the switch to ignore. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 73 Override = switch ignores the port-based, IP type of service (ToS)-based, and CoS  settings defined in the Web management interface. Not Override = switch obeys the port-based, IP ToS-based, and CoS settings defined in  the Web management interface. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 74: Security Menu

    Mac Address Binding  binds Media Access Channel  (MAC) addresses to switch ports. See page 75. TCP/UDP Filter  processes or drops incoming packets  based on protocols. See page 77. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 75 5. If address learning is enabled, a message warns you that enabling MAC address binding disables address learning automatically. Click OK to remove the message and enable MAC address binding (or click Cancel to abort the operation). EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 76 Port No. Port numbers for each switch port. Binding Status MAC address binding status of the port. Speed Speed of the port (for example, “10” for 10 Mbps and “100” for 100 Mbps). EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 77 3. For Protocol, check the protocols you want forwarded (if Port Filtering Rule = positive) or dropped (if Port Filtering Rule = negative). 4. For Secure WAN port, check the port where the packet is to be forwarded or dropped. 5. Click Update. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 78 EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 79: Trunking Menu

    Trunking Menu The Trunking menu lets you perform the following task: Link Aggregation Settings  configures switch ports for  use in trunks. See page 80. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 80 MAC Src & Dst = specifies source address/destination MAC address as the load distribution method. This is a  Layer 2 load balance method. Submit Button Click this button to submit your System Priority and Link Aggregation Algorithm selections. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 81 After configuring the settings on this page, click this button to commit your settings. Note: If you enable LACP on some specified ports and their link partners are normal ports without LACP, these specified ports cannot transmit packets to receive packets from the link partner. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 82: Backup/Recovery Menu

    Backup/Recovery Menu The Backup/Recovery menu lets you perform the following task: Backup/Recovery  saves and restores the switch  configuration. See page 83. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 83 (or “.bin”) file that you saved previously on your computer. To save the switch configuration: 1. Under Backup (Switch -> PC), click Download. 2. When the File Download dialog box appears, click Save. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 84 Open. 3. In the Password field, enter the same password you use to log into the Web management interface. 4. Click Update. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 85: Miscellaneous Menu

    The Miscellaneous menu lets you perform the following task: Miscellaneous  configures output queuing aging time,  VLAN striding, IGMP snooping versions 1 and 2, and VLAN uplink setting. See page 86. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 86 Once enabled, the switch monitors the aging timer for each packet before it is sent out. A packet that stays in a queue for a long time will be discarded. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 87 Set port 01 to Uplink1, set port 4 to Uplink2, and then click Update. If port 2 wants to send a unicast packet to port 5, the packet will be transferred to port 1. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 88: Logout Menu

    When you click this menu, the prompt below asks whether you want to log out. Click Accept to logout and end your session or click Back to remain in the current session. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 89: Troubleshooting

    5 Troubleshooting Topics: This chapter provides information about troubleshooting the switch. Troubleshooting Chart  (page 90) Additional  Troubleshooting Suggestions (page 91) EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 90: Troubleshooting Chart

    Break the loop by ensuring that there is only one path from any networked continuously on all path) has been created. device to any other networked device. connected ports and the network is disabled. EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 91: Additional Troubleshooting Suggestions

    (see “Reset Button” on page 18) or use the Administrator > Reboot Device page on the switch’s Web management interface (see “Reboot Device Page” on page 46). If the problem continues, contact EtherWAN Systems technical support. Auto-Negotiation The 10/100 Mbps ports negotiate the correct duplex mode and speed if the switch is configured for auto-negotiation (this is the switch’s default setting) and the device at the other...

  • Page 92: Technology

    100 Mbps: 148,810 pps   1000 Mbps: 1,488,100 pps Packet Buffer Memory: 2.75 M bits Processing Type: Store-and-Forward  Half-duplex backpressure and IEEE802.3x full-duplex flow control  Address Table Size: 4096 MAC addresses EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 93: Power

    440 mm (W) x 220 mm (D) x 44 mm (H) (17.32" (W) x 8.67" (D) x 1.73" (H)) Standard 19" rack-mount size, one-unit-height Weight: Model EX17162: 4.3 kg (9.46 lbs.) Model EX17242: 4 Kg (8.81 lbs.) Installation: Rack mounting EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 94: Interface

    -10°C to 70°C (14°F to 158°F) Ambient Relative 10% to 95% (non-condensing) Humidity: Regulatory Approvals Specification Description ISO: Manufactured in an ISO9001 facility Emission Compliance: FCC Part 15, Class A, CE mark Class A EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 95: Ex17082, Ex17162, And Ex17242 Web-Smart Switches User Guide

    EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...

  • Page 96: Index

    DHCP, 42 QoS Setting, 69 Disabling proxy settings, 31 Security, 74 Dropped packets, 68 Trunking, 79 Duplex, 49, 50 VLAN Setting, 57 Dynamic IP address, 42 Minimum output power, 56 Mirroring ports, 51 EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 97 18 VLAN using the Web management interface, 46 member, 63 Receive packets, 68 mode, 59 Recovery, 83 Setting menu, 57 Reset button, 18 striding, 87 uplink setting, 87 Security menu, 74 EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 98 TCP/UDP Filter Configuration, 77 pages TCP/UDP Port Based, 72 Authentication Configuration, 41 Trunking, 80 Bandwidth Control, 52 VLAN Member, 63 Broadcast Storm Control, 55 VLAN Mode, 59 Class of Service Configuration, 71 Weight-Round-Robin priority, 70 EX17082, EX17162, and EX17242 Web-Smart Switches User Guide...
  • Page 99 TEL: +886 -2- 6629-8986 Email: info@etherwan.com.tw EtherWAN has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability and fitness for a particular purpose, and makes no express warranties, except as may be stated in its written agreement with and for its customers.
