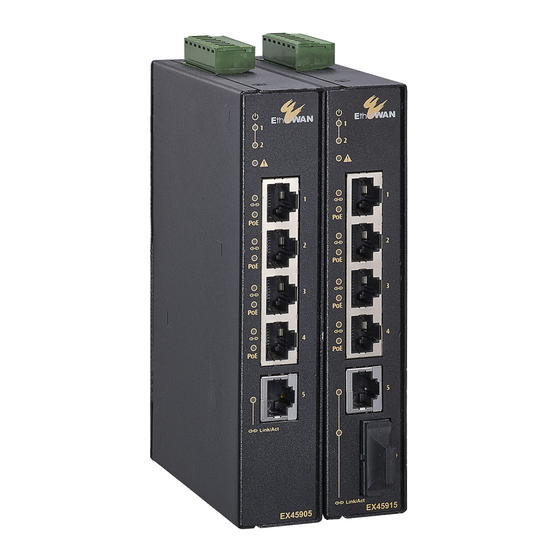

EX45900 series
www.etherwan.com
Quick Start Guide
This quick start guide describes how to install and use the
Hardened PoE Gigabit Ethernet Switch. Capable of operating
at temperature extremes of -40°C to +75°C, this is the switch
of choice for harsh environments constrained by space.

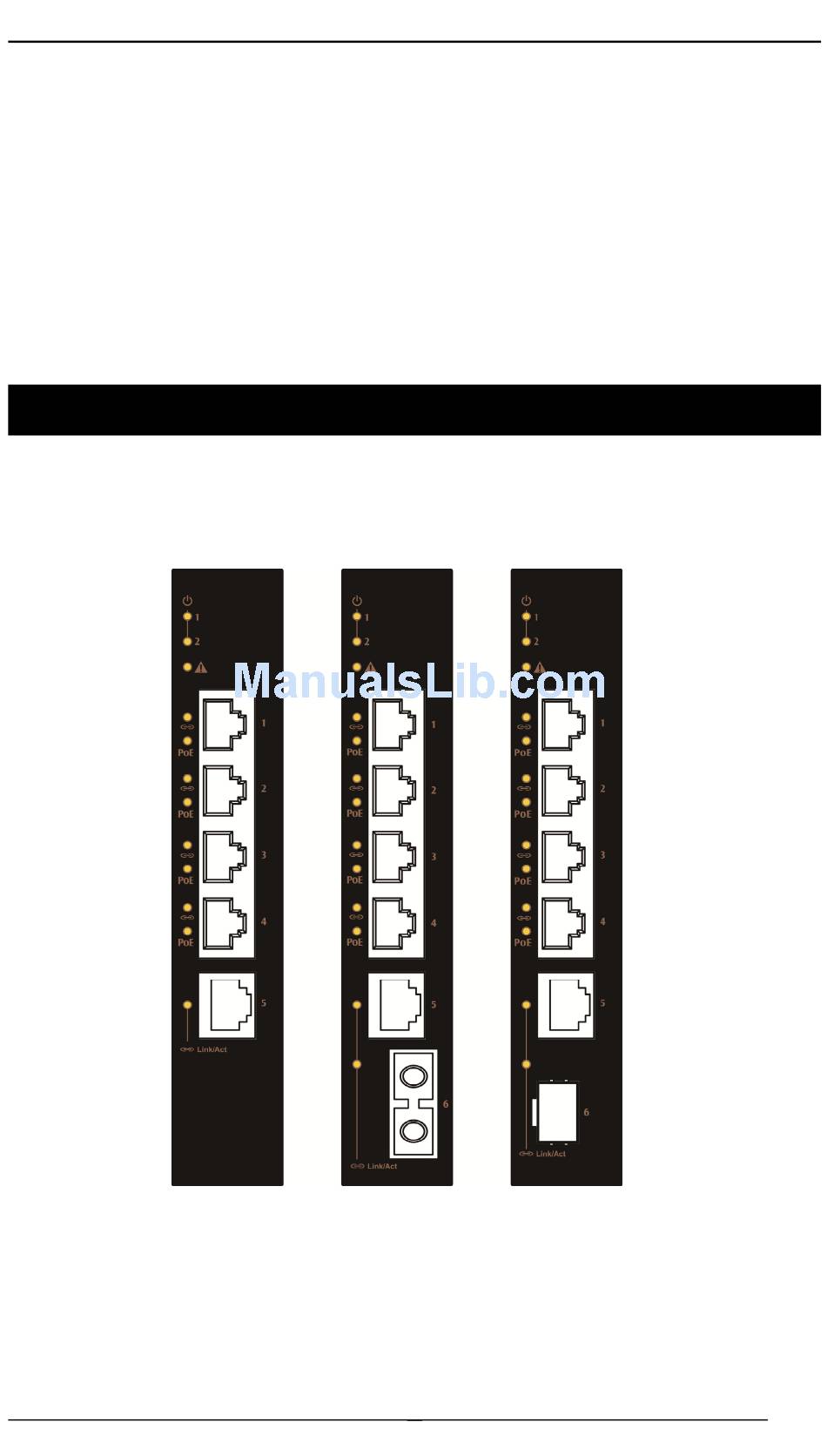

Physical Description
The Port Status LEDs
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EtherWAN EX45900 series
Summary of Contents for EtherWAN EX45900 series
- Page 1 EX45900 series www.etherwan.com Quick Start Guide This quick start guide describes how to install and use the Hardened PoE Gigabit Ethernet Switch. Capable of operating at temperature extremes of -40°C to +75°C, this is the switch of choice for harsh environments constrained by space.
-
Page 2: The Terminal Block And Power Inputs
EX45900 series www.etherwan.com State Indication Steady Power on. Power (Green) Power off. Steady Relay starts alarm. Fault (Red) Relay non-alarm. Gigabit Ports A valid network connection established. Steady 10/100Mbps: Green, 1000Mbps: Amber. Link/Act Transmitting or receiving data. Blinking Act stands for Activity. -
Page 3: Dip Switch Settings
EX45900 series www.etherwan.com DIP Switch Settings DIP No. Port 1 Alarm Enable. Port 1 Alarm Disable. Port 2 Alarm Enable. Port 2 Alarm Disable. Port 3 Alarm Enable. Port 3 Alarm Disable. Port 4 Alarm Enable. Port 4 Alarm Disable. - Page 4 EX45900 series www.etherwan.com Pin Signal Name Signal Definition TP0＋ Transmit and Receive Data 0 ＋ TP0－ Transmit and Receive Data 0 － TP1＋ Transmit and Receive Data 1 ＋ TP2＋ Transmit and Receive Data 2 ＋ TP2－ Transmit and Receive Data 2 －...
- Page 5 EX45900 series www.etherwan.com Functional Description Complies with EN61000-6-2 & EN61000-6-4 EMC Generic standard immunity for industrial environment. Supports 802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex. Auto MDI/MDIX. 1000Base-SX/LX: Multi mode SC or ST type, Single mode SC type. 1000Base-BX: WDM Single mode SC type.
- Page 6 EX45900 series www.etherwan.com Assembly, Startup, and Dismantling Assembly: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place. Startup: Connect the supply voltage to start up the switch via the terminal block.
-
Page 7: Preface
EX45900 series www.etherwan.com Preface This manual describes how to install and use the Hardened PoE Gigabit Ethernet Switch. This switch introduced here is capable of operating at temperature extremes of -40°C to +75°C, this is the switch of choice for harsh environments constrained by space. -
Page 8: Table Of Contents
EX45900 series www.etherwan.com Table of Contents UICK TART UIDE HYSICAL ESCRIPTION The Port Status LEDs The Terminal Block and Power Inputs DIP Switch Settings The 1000Base-TX (PoE) and Gigabit Ethernet Connectors UNCTIONAL ESCRIPTION SSEMBLY TARTUP ISMANTLING REFACE ABLE OF ONTENTS... -
Page 9: Product Overview
EX45900 series www.etherwan.com Product Overview Hardened PoE Gigabit Ethernet Switch Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. -
Page 10: Basic Features
EX45900 series www.etherwan.com Product Highlights Basic Features Complies with EN61000-6-2 & EN61000-6-4 EMC Generic standard immunity for industrial environment. Supports 802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex. Auto MDI/MDIX. 1000Base-SX/LX: Multi mode SC or ST type, Single mode SC type. 1000Base-BX: WDM Single mode SC type. - Page 11 EX45900 series www.etherwan.com Power Supply: Redundant 24/48VDC Terminal Block power inputs. Operating temperature ranges from -40°C 75°C (-40°F to 167°F). Slim design with DIN-Rail mount installation. Front Panel Display Power Status (PWR) This LED comes on when the switch is properly connected to power and turned on.
- Page 12 EX45900 series www.etherwan.com State Indication Steady Power on. Power (Green) Power off. Steady Relay starts alarm. Fault (Red) Relay non-alarm. Gigabit Ports A valid network connection established. Steady 10/100Mbps: Green, 1000Mbps: Amber. Link/Act Transmitting or receiving data. Blinking Act stands for Activity.
-
Page 13: Installation
EX45900 series www.etherwan.com Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. -
Page 14: Din Rail
EX45900 series www.etherwan.com DIN Rail Mounting Installation: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place. Removal: Pull out the lower edge and then remove the switch... -
Page 15: Dc Terminal Block Power Inputs
EX45900 series www.etherwan.com Connecting to Power DC Terminal Block Power Inputs Step 1: Connect the DC power cord to the plug-able terminal block on the switch, and then plug it into a standard DC outlet. Step 2: Disconnect the power cord if you want to shut down the switch. -
Page 16: Cable Type & Length
EX45900 series www.etherwan.com Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable Specifications Speed... -
Page 17: Cabling
EX45900 series www.etherwan.com Cabling Step 1: First, ensure the power of the switch and end devices are turned off. Always ensure that the power is off before any installation. <Note> Step 2: Prepare cable with corresponding connectors for each type of port in use. - Page 18 EX45900 series www.etherwan.com Specifications Hardened PoE Gigabit 4 x 10/100/1000Base-TX PoE ports with Ethernet Switch RJ-45 connectors plus 1-port 10/100/1000Base-TX or 1000Base-SX/LX/BX, or Gigabit SFP socket Applicable Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX IEEE 802.1x Full-duplex Flow Control...
- Page 19 EX45900 series www.etherwan.com EN61000-6-2: EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) Environmental Test IEC60068-2-6 Fc (Vibration) Compliance IEC60068-2-27 Ea (Shock) FED STD 101C Method 5007.1 (Free Fall w/...
