EtherWAN EX94000 Series Installation Manual

1 Unpacking
Open the carton and unpack the items. Your package
should include:
▪
One EX94000 Switch
If any items are missing or damaged, notify your
EtherWAN representative. If possible, save the carton
and packing material in case you need to ship or store
the switch in the future.
2 Equipment Needed
▪
Category 5 or better cable for RJ-45 ports
▪
Appropriate fiber cable for fiber ports
3 Select a Location
▪
Installation: DIN rail. Place the device on the DIN
rail from above using the slot. Push the front of
the device toward the mounting surface until it
audibly snaps into place.
▪
Choose a dry area with ambient temperature
between -40 and 75°C (-40 and 167°F).
▪
Keep away from heat sources, sunlight, warm air
exhausts, hot-air vents, and heaters.
▪
Be sure there is adequate airflow.
4 Connect to the Data Ports
Depending on the model, your switch can have the
following ports:
▪
6 or 8 10/100BASE-TX ports
▪
4 or 6 10/100BASE-TX ports + 1 or 2 100BASE-FX
ports
W70G-EX94000Q1 Page 1
EX94000 Series | Hardened Unmanaged Switch

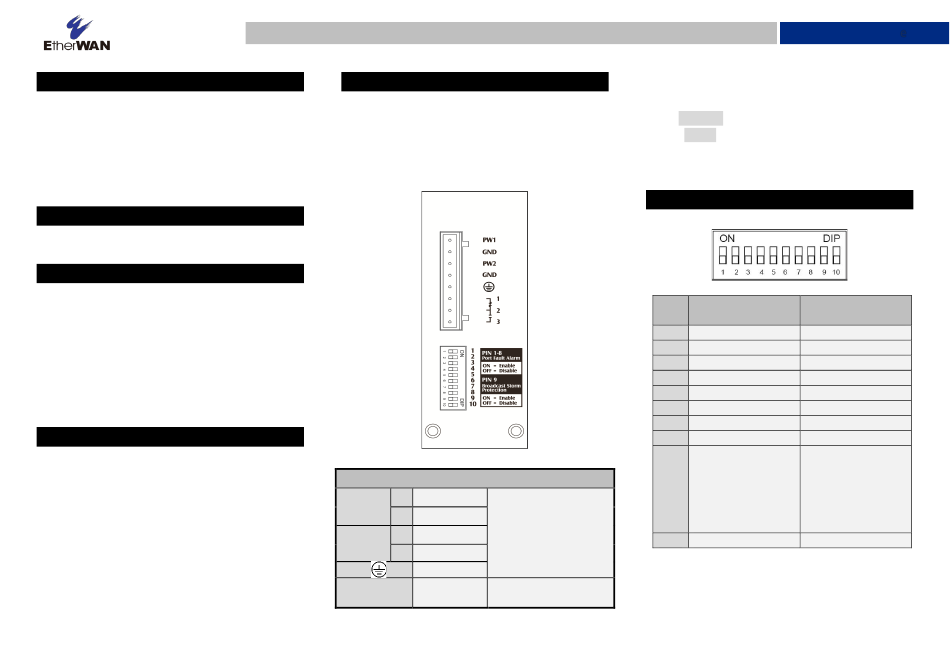

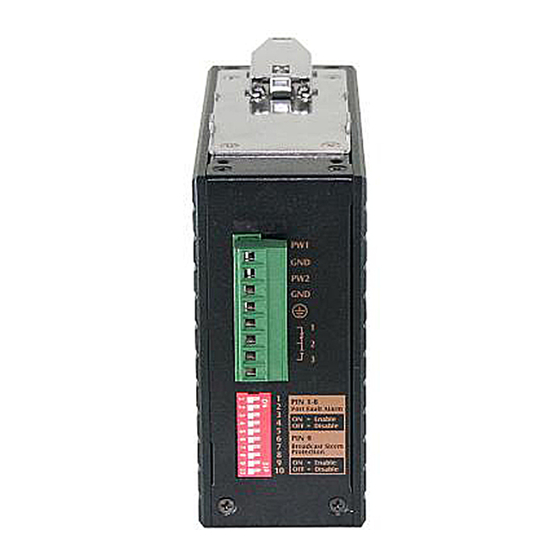

5 Connect Power
Two power inputs are via a 12-48VDC terminal block,
and the third power input is via a 12VDC DC Jack.
Power consumption is:
▪
9.12W Max. 0.76A @12VDC
▪
0.38A @24VDC
▪
0.19A @48VDC
Power Input Assignment
+ 12-48VDC
Power 2
- Power Ground
+ 12-48VDC
Power 1
-
Power Ground
Earth Ground
Relay Output
1A @ 250VAC
Rating
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 01/31/2023
Power-Up Sequence
When the switch is powered up:
▪
All Link/ACT LEDs blink momentarily.
▪
The Power LEDs light up and stay lit.
▪
LEDs for every port connected to a device will
flash, as the switch conducts a brief Power On Self-
Test (POST).
6 DIP Switch Settings
DIP
No.
1 Port 1 Alarm Enable
2 Port 2 Alarm Enable
3 Port 3 Alarm Enable
4 Port 4 Alarm Enable
5 Port 5 Alarm Enable
6 Port 6 Alarm Enable
7 Port 7 Alarm Enable
8 Port 8 Alarm Enable
Broadcast Storm
Protection Enable
(Broadcast Storm
9
will be dropped off
when more than
3000pps)
Terminal Block
10 Reserved
Installation Guide
On Off
Port 1 Alarm Disable
Port 2 Alarm Disable
Port 3 Alarm Disable
Port 4 Alarm Disable
Port 5 Alarm Disable
Port 6 Alarm Disable
Port 7 Alarm Disable
Port 8 Alarm Disable
Broadcast Storm
Protection Disable
