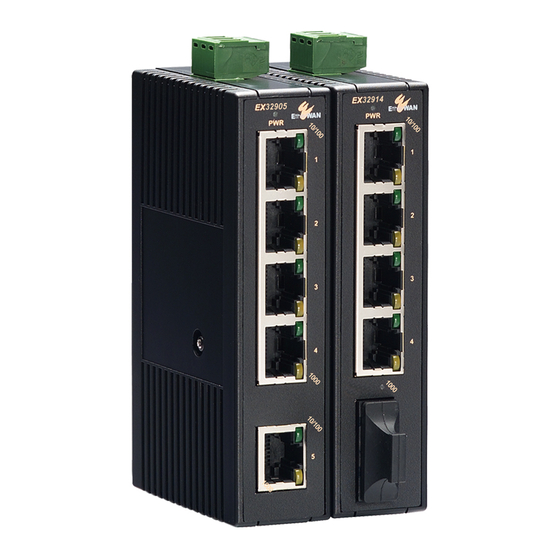

EX32905/EX32914 series www.etherwan.com Quick Start Guide This quick start guide describes how to install and use the Industrial Gigabit Ethernet Switch. Capable of operating at temperature extremes of -10°C to 60°C, this is the Switch of choice for harsh environments constrained by space.
EX32905/EX32914 series www.etherwan.com State Indication Steady Device is powered up. Device is powered off. A valid network connection established at 10 or Steady 100Mbps. 10/100 Flashing Transmitting or receiving data. Steady A valid network connection established at 1000Mbps. 1000 The port is transferring at 10Mbps If this LED is dark.
Page 3
EX32905/EX32914 series www.etherwan.com This equipment shall be located in the same immediate area (such as, adjacent cabinets) as any other equipment that has a connection between the earthed conductor of the same DC supply circuit and the earthing conductor, and also the point of earthing of the DC system.
Page 4
EX32905/EX32914 series www.etherwan.com 2. The 1000Base-SX/LX Connections The fiber port pinouts: The Tx (transmit) port of device I is connected to the Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx (transmit) port of device II.
Page 5
EX32905/EX32914 series www.etherwan.com -10°C to 60°C (14°F to 140°F) operating temperature range. Tested for functional operation @ -20°C to 70°C (-4°F to 158°F). Metal compact DIN-Rail industrial case design.
Page 6
EX32905/EX32914 series www.etherwan.com Assembly, Startup, and Dismantling Assembly: Place the device on the DIN-Rail from above using the slot. Push the front of the device toward the mounting surface until it audibly snaps into place. Startup: Connect the supply voltage to start up the device via the terminal block.
EX32905/EX32914 series www.etherwan.com Preface A member of the growing family of rugged switches, this switch addresses a need for a smaller switch. This switch provides an affordable solution for rugged and outdoor environment, transportation road-side cabinet, industrial floor shop, multitenant dwellings or Fiber To The Home (FTTH) applications.
EX32905/EX32914 series www.etherwan.com Table of Contents UICK TART UIDE HYSICAL ESCRIPTION The Port Status LEDs The Terminal Block and Power Input The 10/100/1000Base-TX and 1000Base-SX/LX/BX Connectors UNCTIONAL ESCRIPTION SSEMBLY TARTUP ISMANTLING REFACE ABLE OF ONTENTS RODUCT VERVIEW NDUSTRIAL IGABIT THERNET...
EX32905/EX32914 series www.etherwan.com Product Overview Industrial Gigabit Ethernet Switch Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller.
EX32905/EX32914 series www.etherwan.com Product Highlights Basic Features Complies with EN61000-6-2 & EN61000-6-4 EMC Generic standard immunity for industrial environment. Supports 802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex. Auto MDI/MDIX. 1000Base-SX/LX: Multi mode SC or ST type, Single mode SC or ST type. 1000Base-BX: WDM Multi mode or Single mode SC type.
Page 11

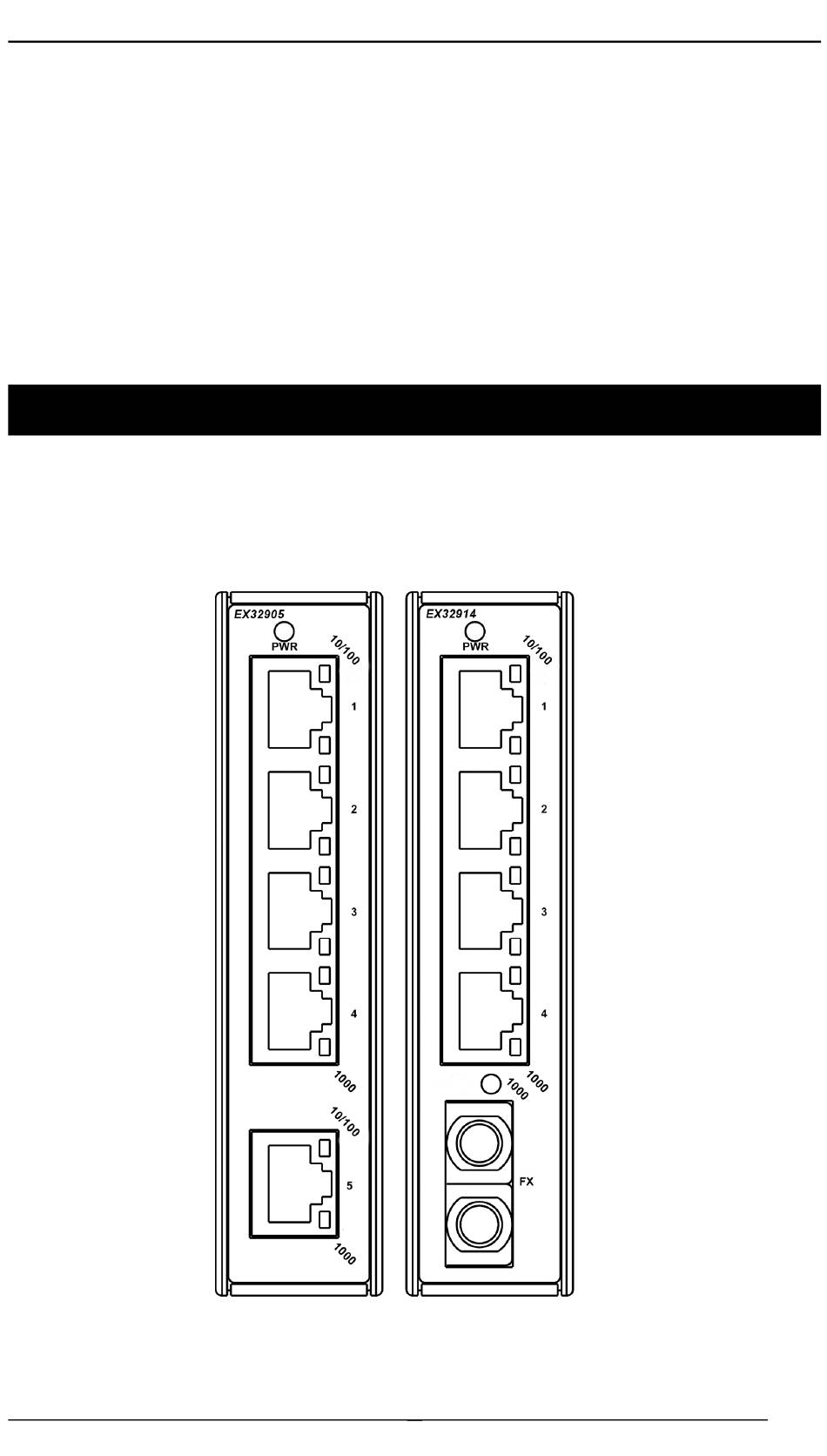

EX32905/EX32914 series www.etherwan.com Front Panel Display Power Status (PWR) This LED comes on when the switch is properly connected to power and turned on. Port Status LEDs The LEDs display status for each respective port. State Indication Steady Device is powered up.
EX32905/EX32914 series www.etherwan.com Physical Ports This switch provides: Five 10/100/1000Base-TX ports Four 10/100/1000Base-TX ports + one 1000Base-SX/LX/BX port Connectivity: RJ-45 connectors SC or ST connector on 1000Base-SX/LX fiber port SC connector on 1000Base-BX fiber port...
EX32905/EX32914 series www.etherwan.com Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference.
EX32905/EX32914 series www.etherwan.com DIN Rail Mounting Installation: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place. Removal: Pull out the lower edge and then remove the switch...
EX32905/EX32914 series www.etherwan.com Connecting to Power DC Terminal Block Power Inputs Step 1: Connect the DC power cord to the plug-able terminal block on the switch, and then plug it into a standard DC outlet. Step 2: Disconnect the power cord if you want to shut down the switch.
Page 16
EX32905/EX32914 series www.etherwan.com earthing of the DC system. The DC system shall not be earthed elsewhere. The DC supply source is to be located within the same premises as the equipment. Switching or disconnecting devices shall not be in the earthed ...
EX32905/EX32914 series www.etherwan.com Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable Specifications Speed...
EX32905/EX32914 series www.etherwan.com Cabling Step 1: First, ensure the power of the switch and end devices are turned off. Always ensure that the power is off before any installation. <Note> Step 2: Prepare cable with corresponding connectors for each type of port in use.
