EtherWAN EX95000 Series Installation Manual

1 Unpacking
Open the carton and unpack the items. Your package
should include:
▪
One EX95000 Switch
If any items are missing or damaged, notify your
EtherWAN representative. If possible, save the carton
and packing material in case you need to ship or store
the switch in the future.
2 Equipment Needed
▪
Category 5 or better cable for RJ-45 ports
▪
Appropriate fiber cable for fiber ports
3 Select a Location
▪
Installation: DIN rail. Place the device on the DIN
rail from above using the slot. Push the front of
the device toward the mounting surface until it
audibly snaps into place.
▪
Choose a dry area with ambient temperature
between -40 and 75°C (-40 and 167°F).
▪
Keep away from heat sources, sunlight, warm air
exhausts, hot-air vents, and heaters.
▪
Be sure there is adequate airflow.
4 Connect to the Data Ports
Depending on the model, your switch can have the
following ports:
▪
10/100BASE-TX: 16, 15 or 14 ports
▪
100BASE-FX: 0, 1 or 2 ports
W70G-EX95000Q2 Page 1
EX95000 Series | Hardened Unmanaged Switch

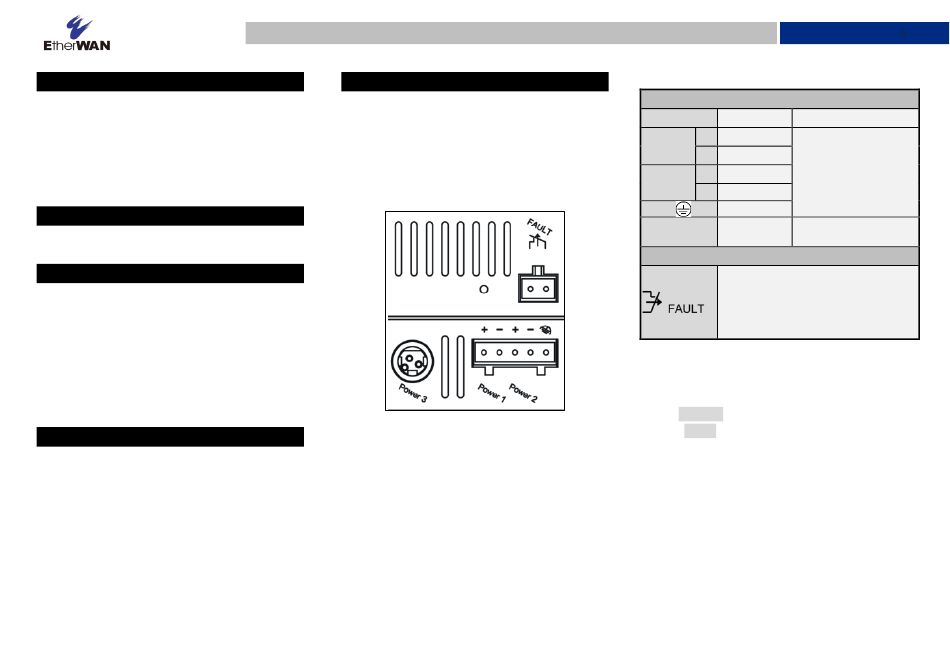

5 Connect Power
Two power inputs are via a 12-48VDC terminal block,
and the third power input is via a 12VDC DC Jack.
Power consumption is:
▪
7.4W Max. 0.6A@12VDC
▪
0.3A@24VDC
▪
0.15A@48VDC
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 01/05/2023
Installation Guide
Power Input Assignment
Power 3 12VDC
+ 12-48VDC
Power 2
- Power Ground
Terminal Block
+ 12-48VDC
Power 1
-
Power Ground
Earth Ground
Relay Output
1A @ 24VDC
Rating
Relay Alarm Assignment
The relay contact closes if Power 1
and Power 2 both fail but Power 3 is on.
The relay contact closes if Power 3
fails but Power 1 and Power 2
are both on.
Power-Up Sequence
When the switch is powered up:
▪
All Link/ACT LEDs blink momentarily.
▪
The Power LEDs light up and stay lit.
▪
LEDs for every port connected to a device will
flash, as the switch conducts a brief Power On Self-
Test (POST).
DC Jack
