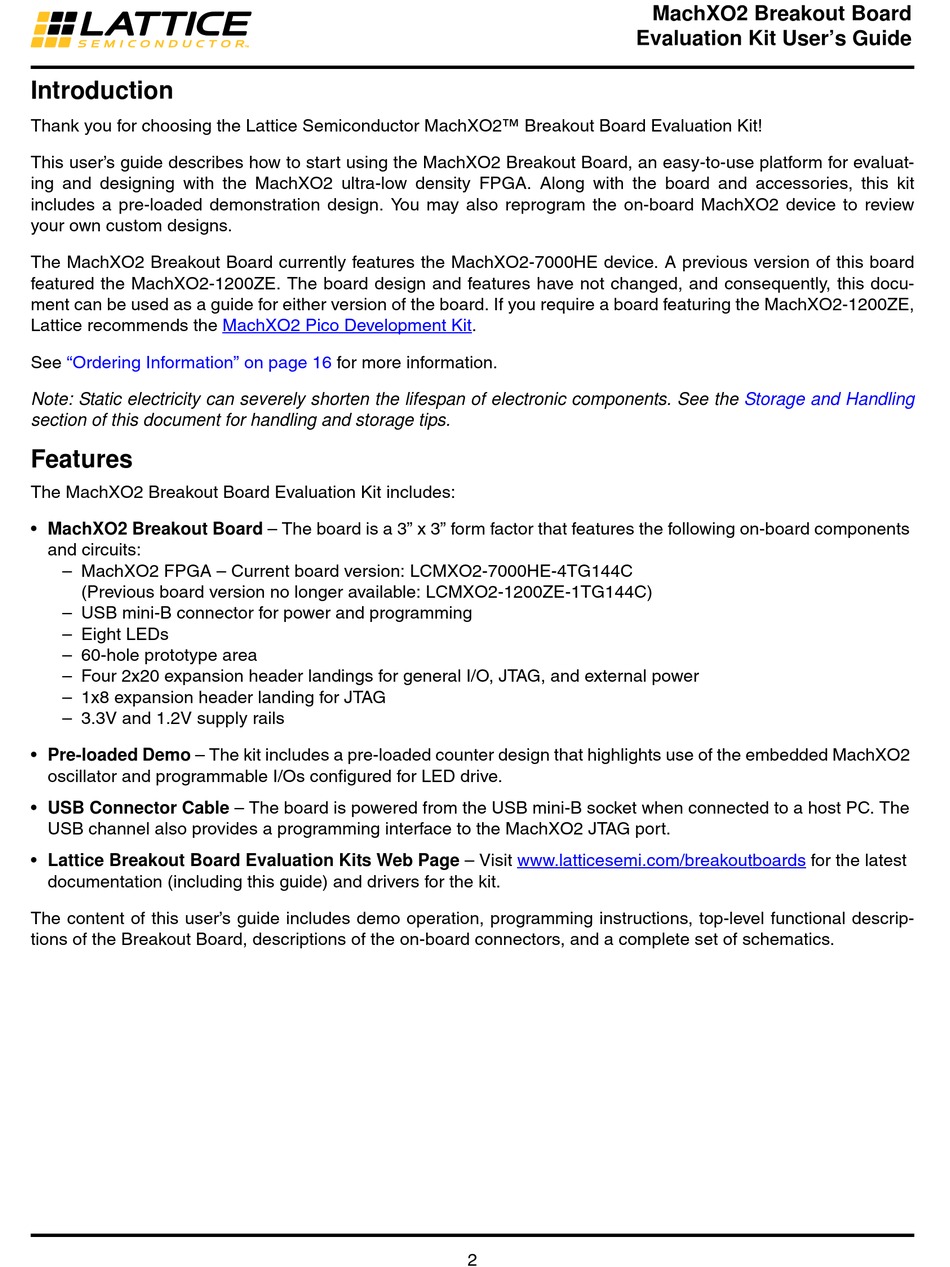

Lattice Semiconductor MachXO2 User Manual page 2

Introduction
Thank you for choosing the Lattice Semiconductor MachXO2™ Breakout Board Evaluation Kit!
This user's guide describes how to start using the MachXO2 Breakout Board, an easy-to-use platform for evaluat-
ing and designing with the MachXO2 ultra-low density FPGA. Along with the board and accessories, this kit
includes a pre-loaded demonstration design. You may also reprogram the on-board MachXO2 device to review
your own custom designs.
The MachXO2 Breakout Board currently features the MachXO2-7000HE device. A previous version of this board
featured the MachXO2-1200ZE. The board design and features have not changed, and consequently, this docu-
ment can be used as a guide for either version of the board. If you require a board featuring the MachXO2-1200ZE,
Lattice recommends the
See "Ordering Information" on page 16
Note: Static electricity can severely shorten the lifespan of electronic components. See the
section of this document for handling and storage tips.
Features
The MachXO2 Breakout Board Evaluation Kit includes:
• MachXO2 Breakout Board – The board is a 3" x 3" form factor that features the following on-board components
and circuits:
– MachXO2 FPGA – Current board version: LCMXO2-7000HE-4TG144C 
(Previous board version no longer available: LCMXO2-1200ZE-1TG144C)
– USB mini-B connector for power and programming
– Eight LEDs
– 60-hole prototype area
– Four 2x20 expansion header landings for general I/O, JTAG, and external power
– 1x8 expansion header landing for JTAG
– 3.3V and 1.2V supply rails
• Pre-loaded Demo – The kit includes a pre-loaded counter design that highlights use of the embedded MachXO2
oscillator and programmable I/Os configured for LED drive.
• USB Connector Cable – The board is powered from the USB mini-B socket when connected to a host PC. The
USB channel also provides a programming interface to the MachXO2 JTAG port.
• Lattice Breakout Board Evaluation Kits Web Page – Visit
documentation (including this guide) and drivers for the kit.
The content of this user's guide includes demo operation, programming instructions, top-level functional descrip-
tions of the Breakout Board, descriptions of the on-board connectors, and a complete set of schematics.
MachXO2 Pico Development
for more information.
Kit.
www.latticesemi.com/breakoutboards
2
MachXO2 Breakout Board
Evaluation Kit User's Guide
Storage and Handling
for the latest
