- Page 1 User Guide Twisted Pair MTP 4T 15HD RS Quad MTP Twisted Pair Transmitter for VGA and RS-232 68-1398-01 Rev. B 05 12...
- Page 2 Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated This symbol is intended to alert the user of important operating and mainte- on the product. This equipment is intended to be used with a main power system with a nance (servicing) instructions in the literature provided with the equipment.
- Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 A tip provides a suggestion to make working with the application easier. WARNING: A warning warns of things or actions that might cause injury, death, or other severe consequences. Copyright © 2012 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners.
-
Page 5: Table Of Contents
Table of Contents Introduction ............1 About the MTP 4T 15HD RS ........ 1 Twisted Pair (TP) Cable Advantages ..... 3 Transmission Distance ........3 Installation and Operation ........4 Installation ............4 Tabletop Placement ......... 4 Rack Mounting ..........4 UL Requirements .......... -
Page 6: Introduction

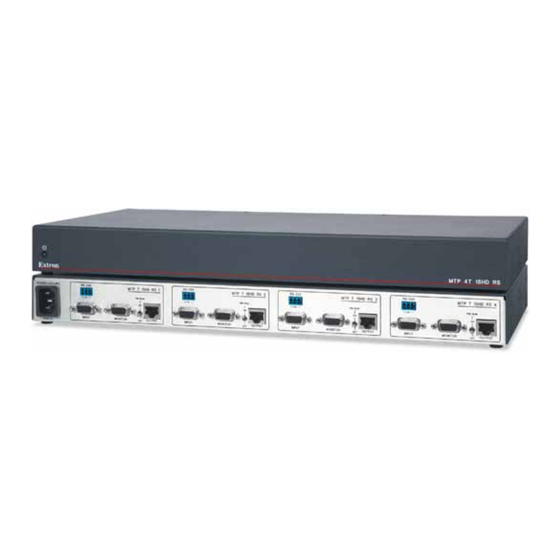

About the MTP 4T 15HD RS The Extron MTP 4T 15HD RS Quad MTP Twisted Pair Transmitter consists of four MTP T 15HD RS transmitters in a single enclosure. This set of transmitters and the Extron MTP RL 15HD RS and MTP RL 15HD RS SEQ receivers provide a means to distribute VGA or other high resolution video and RS-232 serial communications across long distances. - Page 7 An SEQ receiver should not be necessary when Extron Enhanced Skew-Free AV UTP cable is used. All four transmitters in the MTP 4T 15HD RS are powered by a single internal 100 VAC to 240 VAC, 50/60 Hz, 20 watts power supply that provides worldwide power compatibility.
-
Page 8: Twisted Pair (Tp) Cable Advantages
• For a daisy-chained system, any receiver in the chain closer than 350 ft. (105 m) may experience some form of over-peaking when the Pre-Peak switch is on. An overpeaked image may appear bloomed. MTP 4T 15HD RS • Introduction... -
Page 9: Installation And Operation
CAUTION: Installation and service must be performed by authorized personnel only. The MTP 4T 15HD RS is 1U high and a full rack wide. It is rack mountable, or it can be placed on a table or other furniture. Rubber feet and rack mounting hardware are included. -
Page 10: Installation Instructions
Installation instructions Mount the MTP 4T 15HD RS in a rack as follows: If feet were installed on the bottom of the transmitter assembly, remove them. Attach the included rack/through-desk mounting brackets (part number 70-077-03) to the unit using eight machine screws supplied with the mounting kit. -
Page 11: Connections And Settings
If there is only one receiver in a system, a jumper within the receiver allows the RS-232 communication to be bidirectional (see the MTP 15HD RS Series User Guide). MTP 4T 15HD RS • Installation and Operation... -
Page 12: Tp Cable Termination
The green, brown, and blue pairs of this cable have virtually identical lengths and should be used to transmit the RGB signals. The orange pair of this cable has a different length and should not be used to transmit the RGB signals. MTP 4T 15HD RS • Installation and Operation... -
Page 13: Receiver Considerations
Figure 5. MTP 4T Transmitter Front Panel Power LED — When lit, this LED indicates power is applied to the MTP 4T 15HD RS. Skew Delay Compensation CAT 5/5e/6 TP cable can lead to registration errors between the red, green, and blue video signals. -
Page 14: Seq Receiver Skew Compensation
Add a skew compensation cable equal to the length of pair skew to the receiver’s • output. Install an SEQ 100 15HD Skew Equalizer on the receiver’s video output and adjust • the skew for the leading video image. MTP 4T 15HD RS • Installation and Operation... -
Page 15: Reference Information
Performance will vary based on baud rate and cable length.) Protocol ......... Data bits = 5 - 8 Stop bits = 1 or 2 Parity = odd, even, none Flow control = XON, XOFF, none MTP 4T 15HD RS • Reference Information... - Page 16 Compliances ........CE, FCC Class A, VCCI, AS/NZS, ICES MTBF ..........30,000 hours Warranty ........3 years parts and labor NOTE: All nominal levels are at ±10%. NOTE: Specifications are subject to change without notice. MTP 4T 15HD RS • Reference Information...
-
Page 17: Part Numbers
60-735-01 MTP RL 15HD RS SEQ receiver 60-735-02 Included parts The following parts are included in each order for an MTP 4T 15HD RS: Included parts Part number Rubber feet (self-adhesive) (4) MBD 149 1U through-desk and rack mounting kit... - Page 18 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
