User's Guide
MTP T 15HD A Architectural Twisted Pair Transmitters
ce-info@camboard.de
MTP T 15HD A WM,
MTP T 15HD A D,
MTP T 15HD A AAP
68-1241-01
Rev. A
03 06
Advertisement
Table of Contents
Related Manuals for Extron electronics MTP T 15HD A D
Summary of Contents for Extron electronics MTP T 15HD A D
- Page 1 Rev. A The Netherlands Singapore 368363 Chiyoda-ku, Tokyo 102-0082 Japan 03 06 714.491.1500 +31.33.453.4040 +65.6383.4400 +81.3.3511.7655 www.extron.com Fax 714.491.1517 Fax +31.33.453.4050 Fax +65.6383.4664 Fax +81.3.3511.7656 www.camboard.de Tel. 07131 911201 ce-info@camboard.de © 2006 Extron Electronics. All rights reserved. Fax 07131 911203...
- Page 2 im Vertrieb von CAMBOARD Electronics Precautions Precautions Safety Instructions • English 安全须知 • 中文 警告 Warning 电源 • 该设备只能使用产品上标明的电源。 设备必须 Power sources • This equipment should be operated only from the power source This symbol is intended to alert the user of important indicated on the product.
-
Page 3: Table Of Contents
TP cable advantages............... 1-2 Transmission distance ............. 1-2 About the MTP T 15HD A WM..........1-4 About the MTP T 15HD A D............ 1-4 About the MTP T 15HD A AAP..........1-4 Chapter Two • Installation ............ -
Page 4: Chapter One• Introduction
im Vertrieb von CAMBOARD Electronics MTP T 15HD A Architectural Plates Chapter One Introduction About.the.MTP.Transmitters This page was deliberately left blank www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 5: About The Mtp Transmitters
im Vertrieb von CAMBOARD Electronics Introduction About the MTP Transmitters Video Pre-Peak Pre-Peak Max. distance Max. distance format (high quality) (variable quality) The Extron MTP T 15HD A Architectural Twisted Pair Composite, Transmitters, available in either black, white, or RAL9010 are 800' 1000' S-video,... -
Page 6: About The Mtp T 15Hd A Wm
Figure 1-1 — MTP T 15HD A WM face About the MTP T 15HD A D The MTP T 15HD A D Twisted Pair Transmitter is a wall or Chapter Two furniture mountable version of the MTP T 15HD A that fits any Decora®... -
Page 7: Installing The Mtp T 15Hd A Wm And Mtp T 15Hd A D

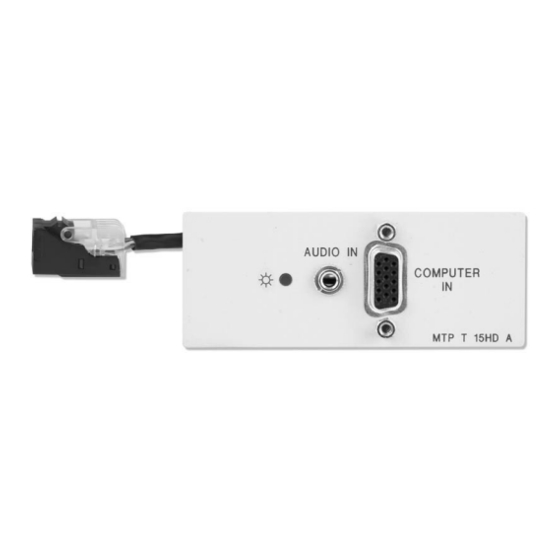

MTP T 15HD A D Connect the output device cables to the rear of the MTP The MTP T 15HD A WM and MTP T 15HD A D can be installed architectural wall plate. See Rear Panel Features later in this in a one-gang electrical wall box, with the MTP T 15HD A D manual for connector wiring details. -
Page 8: Installing The Mtp T 15Hd A Aap
Decora Faceplate AUDIO IN AUDIO IN Figure 2-2 — Mounting the MTP T 15HD A D COMPUTER IN COMPUTER IN Installing the MTP T 15HD A AAP The MTP T 15HD A AAP must be attached to a device faceplate... -
Page 9: Rear Panel Features
The rear panel features are the same on all the MTP T 15HD A the video signal output to correct for long cable architectural models. MTP T 15HD A D is shown in figure 2-6. PRE- runs. See the table on page 1-3 for suggested switch... -
Page 10: Tp Cable Termination
im Vertrieb von CAMBOARD Electronics Installation, cont’d Enhanced Skew-free A/V cable is not recommended for The length of the exposed (stripped) copper wires Ethernet/LAN applications. is important. The ideal length is 0.2” (5 mm). Longer bare wires can short together. Shorter wires This cable is specially designed for compatibility with are not as secure in the direct insertion connectors Extron’s Twisted Pair products that are wired using the and could be pulled out. TIA/EIA 568 A standard. Do not tin the power supply leads before installing in The green, brown, and blue pairs of this cable have the direct insertion connector. Tinned wires are not as virtually identical lengths and should be used to secure in the connectors and could be pulled out. transmit the RGB signals. TP cable termination The orange pair of this cable has a different length and should not be used to transmit the RGB signals. RJ-45 termination with CAT 5, CAT 5e, or CAT 6 cable must comply with the TIA/EIA T 568A or TIA/EIA T 568B Template wiring standards for all connections. -
Page 11: Application Diagrams
im Vertrieb von CAMBOARD Electronics Installation, cont'd Application Diagrams MTP T 15HD A Architectural Plates MTP R 15HD A Projector IN G Audio Enhanced Skew Free UTP Cable Laptop D IO w/ Audio IN P P 15 MTP 15HD A WM Appendix A This example application shows the MTP T 15HD WM, but also applies to the MTP T 15HD D... -
Page 12: Appendix A • Specifications
im Vertrieb von CAMBOARD Electronics Specifications Audio input Specifications Number/signal type ..... 1 stereo, unbalanced Video Connectors ........1 mini stereo jack, 3.5 mm Impedance ........>10 kohms, unbalanced Gain ..........Unity Nominal level ........ +4 dBu (1.23 Vrms), -10 dBV (316 mVrms) Number/signal type ..... -
Page 13: Part Numbers
* formerly known as Enhanced Skew-Free™ A/V UTP Items Part number Enhanced Skew-Free™ A/V UTP cables are not MTP T 15HD A WM, black, white 60-691-02, 03 recommended for Ethernet/LAN applications. MTP T 15HD A D, white 60-798-03 RJ-45 connector Part number MTP T 15HD A AAP, black, white, CAT 6 jack, various colors 10-463-xx... -
Page 14: Dimensions
In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
