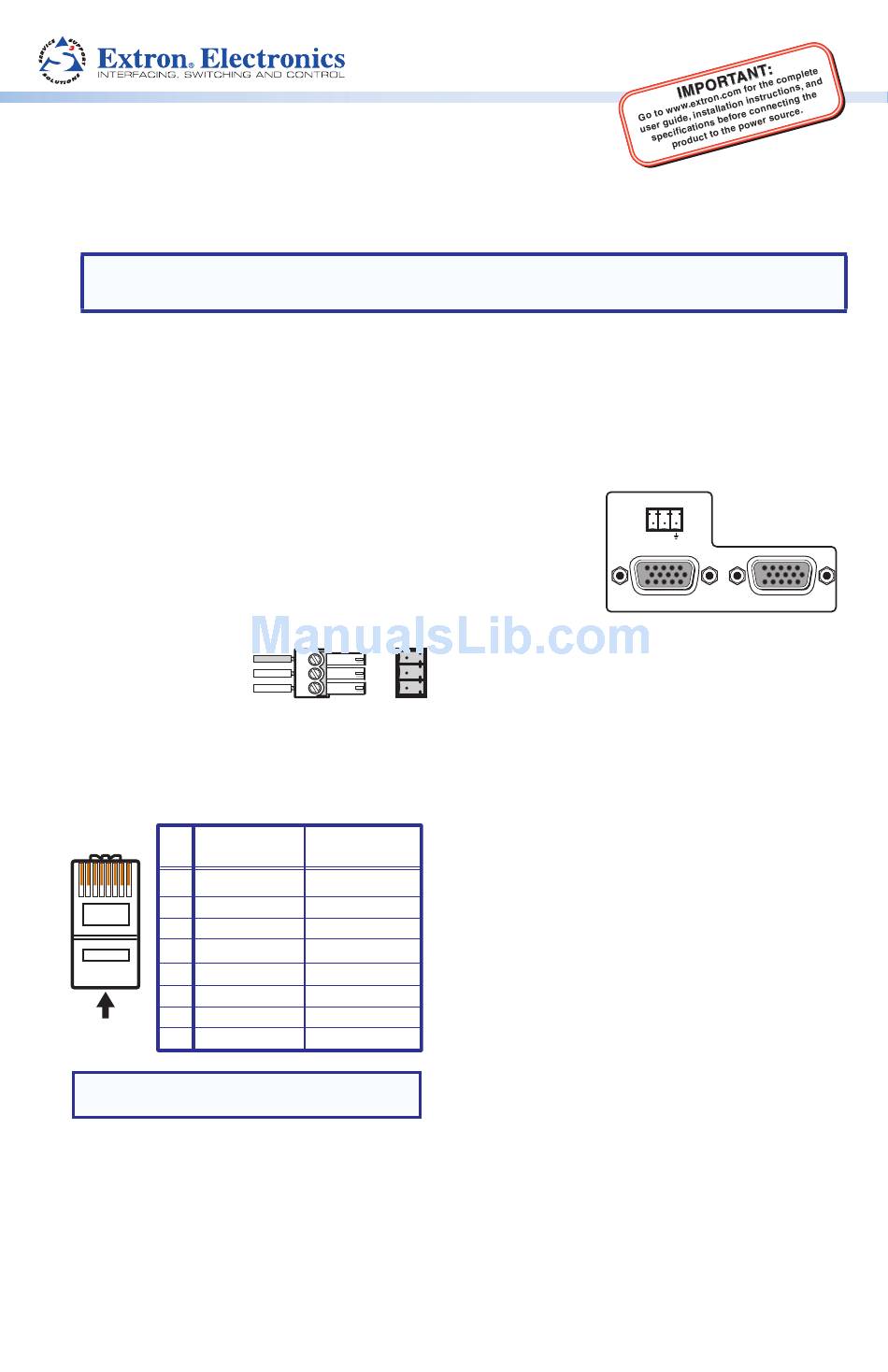

MTP 4T 15HD RS • Setup Guide
This sheet provides quick start instructions for an experienced installer to set up and
operate the MTP 4T 15HD RS multiple VGA video and RS-232 transmitters.
NOTE Each MTP 4T 15HD RS transmitter requires at least one connected
:
compatible MTP receiver. Additional receivers can be daisy chained.
Installation
Step 1 — Mounting
Turn off or disconnect all equipment power sources and mount the unit as required.
Step 2 — Transmitter Inputs
• Connect a computer (VGA) video source to each Input
connector.
• Connect a VGA monitor to each Monitor connector.
• Plug an RS-232 device into each RS-232 port. Wire the
connectors as shown below.
Connected
RS-232
Device Pins
Step 3 — TP Cables
Terminate up to four TP cables as shown below. Connect them between each
transmitter's Output port and a receiver's Input port (both ends need to match).
Pins:
1 2 3 4 5 6 7 8
Pin
1 White-green
2 Green
3 White-orange
4 Blue
5 White-blue
6 Orange
7 White-brown
Insert
8 Brown
TP Wires
NOTE: If you are using Enhanced Skew-Free™
AV cable, use the TIA/EIA T568A standard only.
Receive
Transmit
Gnd
Ground
T568A T568B
Wire Color Wire Color
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
Tx
MTP
Rx
Pins
RS-232
Tx Rx
INPUT MONITOR
