Wiring the ICAD actuator
© Danfoss | DCS (MWA) | 2016.07

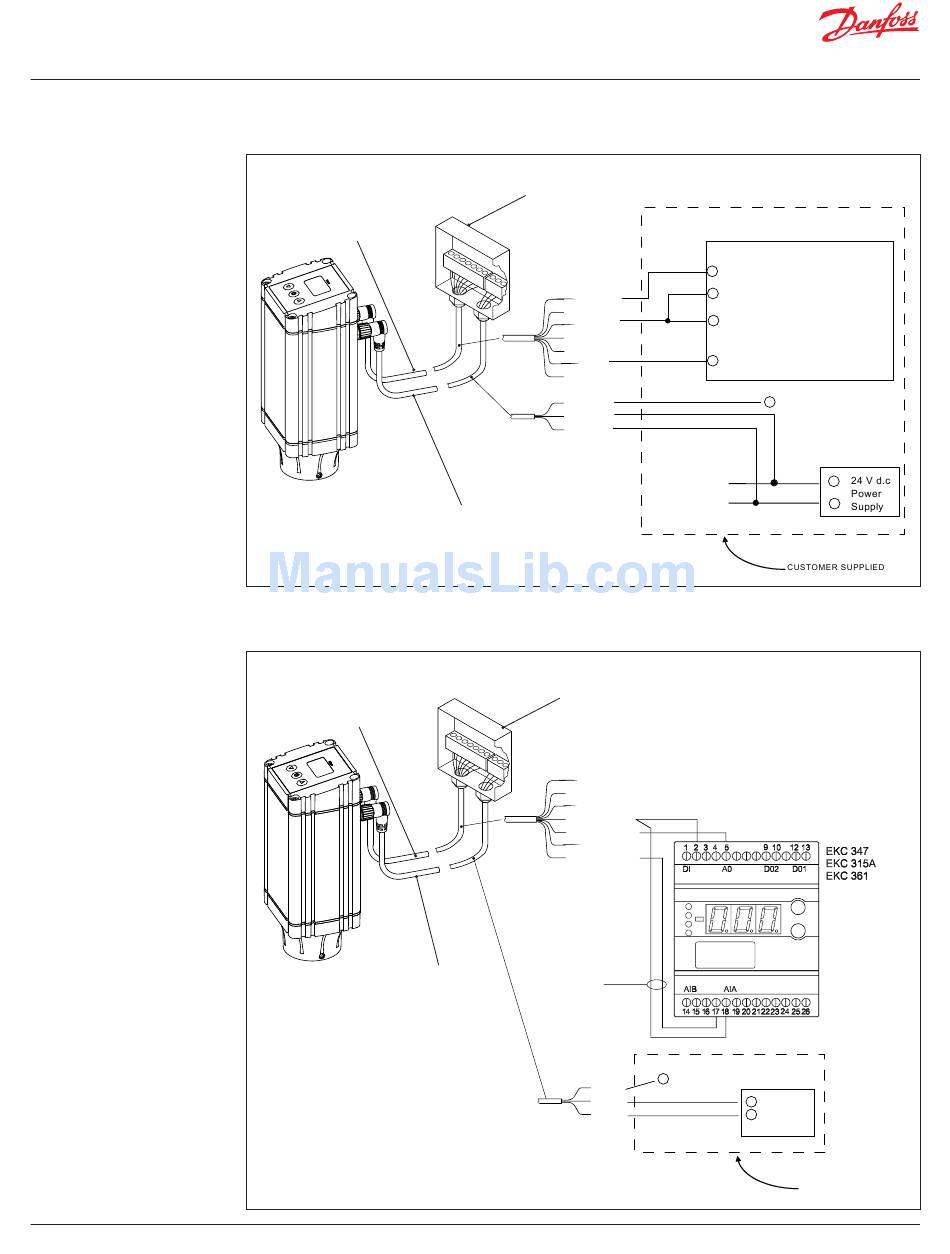

Wiring diagram showing ICAD wired to a PLC or other type of third party electronics
Note: The ICAD supplies the power for the 4-20 mA feedback signal.
Control cable
Power supply cable
Wiring diagram showing ICAD wired to a Danfoss EKC controller
Note: For instructions on completely wiring an EKC controller, please see the relevant EKC controller manual.
Control cable
Power supply cable
Terminal box
(customer supplied)
Yellow
Orange
Blue
Black
White
Brown
Terminal box
(customer supplied)
Orange(ground)
(+ 4-20 mA)
Yellow
Blue (+ 4-20 mA)
Optional position
feedback
Only possible
with EKC 347
+
Optional UPS/battery back up
Black
White
Brown
PLC
+
Active 4-20 mA PLC output to control ICAD
-
Active 4-20 mA PLC output to control ICAD
-
Passive 4-20 mA PLC input
for valve position feedback
+
Passive 4-20 mA PLC input
for valve position feedback
+
Optional UPS/battery back up
+
-
24 V d.c
+
Power
-
Supply
CUSTOMER SUPPLIED
