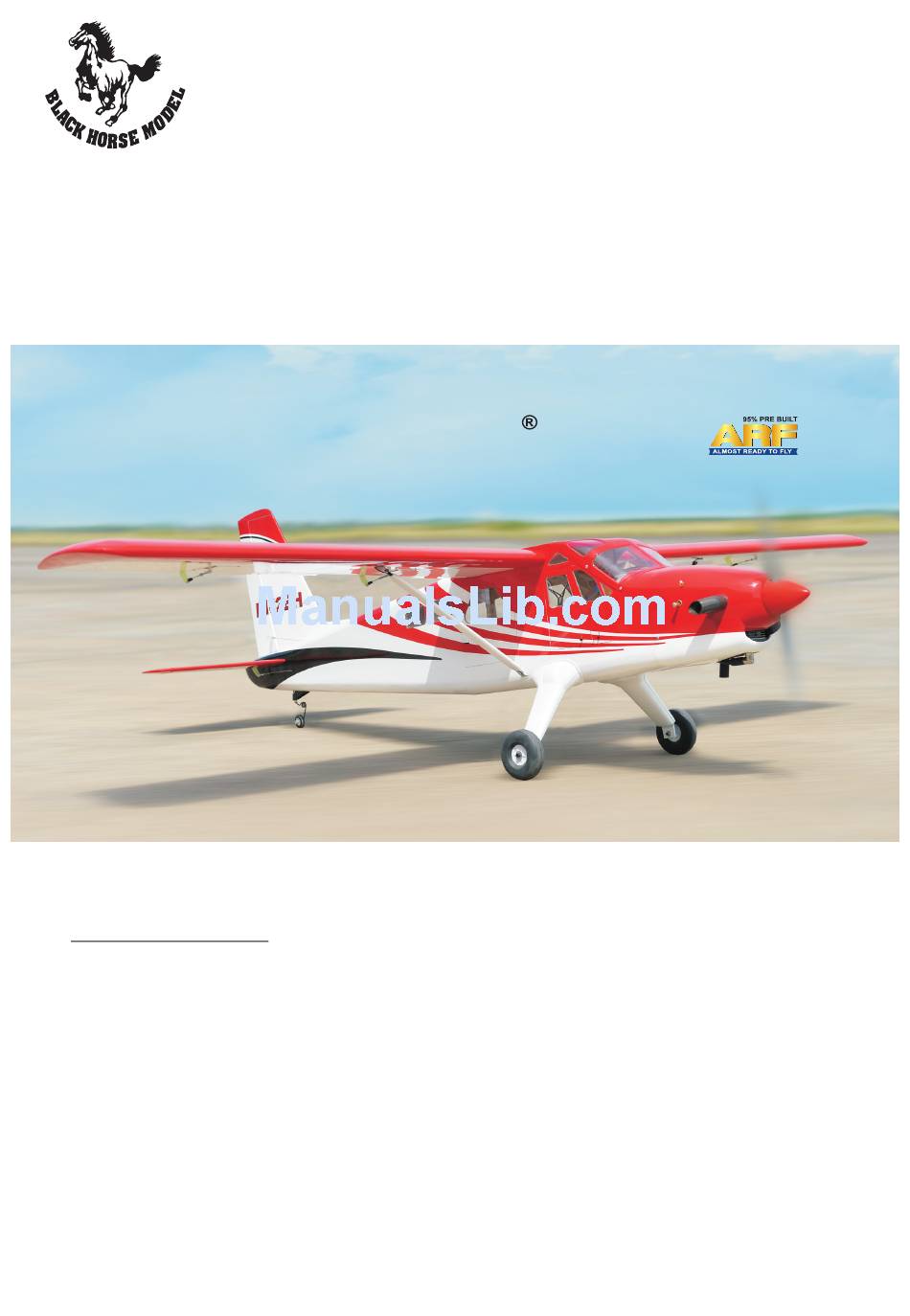

Instruction Manual Book
TURBO BEAVER
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER
95% ALMOST READY TO FLY
SPECIFICATION:
- Wingspan: 2,250 mm (88.58 in).
- Length: 1,675 mm ( 65.94 in).
- Weight: 5.5kg (12.1lbs).
- Wing area: 59.7 dm .
- Wing loading: 92.1g/dm .
- Wing type: USA 35-B Airfoil.
- Servo mount: 42mm x 21mm.
- Gear type: Aluminium Hi-grade for main gear
and spring wire for tail gear (included).
2
2
Item code: BH162.
Parts listing required (not included):
- Radio: 06 channels.
- Servo: 08 servos.
- Engine: 120 - 2 stroke, 20 - 30cc gas.
- Motor: Brushless outrunner 1800-2300W, 450KV.
- Propeller: Suit with your engine.
Recommended motor
and battery set up (not included):
- Motor: RIMFIRE.120.z
- Lipo cell: 6 cells 4,000-5,000mAh.
- ESC: 80A.
- Receiver battery: 6V/ 1200-2000mAh NiMH.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BH162 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model BH162

Summary of Contents for Black Horse Model BH162

  • Page 1 Instruction Manual Book Item code: BH162. TURBO BEAVER ALL BALSA - PLY WOOD CONSTRUCTION. COVERED WITH ORACOVER 95% ALMOST READY TO FLY SPECIFICATION: - Wingspan: 2,250 mm (88.58 in). Parts listing required (not included): - Radio: 06 channels. - Length: 1,675 mm ( 65.94 in).
  • Page 2 TURBO BEAVER Item code: BH162 WARNING Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU ASSUME ALL RISK & RESPONSIBILITY.

  • Page 3: Tools And Supplies Needed

    TURBO BEAVER Item code: BH162 TOOLS & SUPPLIES NEEDED EPOXY A EPOXY B Epoxy Glue (5 minute type). Hand or electric drill. Epoxy Glue (30 minute type). Threadlocker (screw cement). Hobby knife. Some more tools. Awl. Assorted drill bits. Phillips head screwdriver.
  • Page 4 TURBO BEAVER Item code: BH162 : Fuselage. 3x10mm : Wing panel ( 2a, 2b, 2c, 2d : Horizontal stabilizer. : Rudder. : Aluminium wing dihedral brace. : Cowling. : Cockpit fuselage (7a, 7b, 7c). : Spinner. : Decal sheet. : Aluminium landing gear (10a, 10b).

  • Page 5: Installing The Aileron Servos

    TURBO BEAVER Item code: BH162 * Apply drops of thin CA to the top and bottom of each 1. INSTALLING THE AILERONS, FLAPS hinge. Do not use CA accelerator. After the CA has fully hardened, test the hinges by pulling on the aileron.

  • Page 6: Installing The Engine Mount

    TURBO BEAVER Item code: BH162 3. INSTALLING THE CONTROL HORNS, LINKAGES Insert the 90 degree bend down through the hole in the lock nut control horn. Install one nylon snap keeper over the Snap keeper. wire to secure it to the control horn. Install the control...
  • Page 7 TURBO BEAVER Item code: BH162 INSTALLING THE STOPPER ASSEMBLY 1) The stopper has been pre-assembled at the factory. 　 2) Using a modeling knife, cut one length of silicon fuel line (the length of silicon fuel line is calculated by how the weighted clunk should rest about 8mm away from the rear of the tank and move freely inside the tank).

  • Page 8: Installing The Fuselage Servos

    TURBO BEAVER Item code: BH162 INSTALLING THE THROTTLE PUSHROD Using a modeling knife, cut 3 lengths of fuel line 150mm long. Connect 2 lines to the 2 vent tubes and 1 line to the fuel pickup tube in the stopper.

  • Page 9: Installing Main Gear

    TURBO BEAVER Item code: BH162 * Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector. Remove the excess material from the arm.

  • Page 10: Installing Horizontal Stabilizer

    TURBO BEAVER Item code: BH162 Threadlocker Epoxy glue 5x45mm C/A glue 8. INSTALLING HORIZONTAL STABILIZER 1) Using a modeling knife, carefully remove the film covering from the tail slots at the rear of the fuselage. Check to mark sure the wing and stabilizer are Make sure that you do not remove any wood from the paralell.
  • Page 11 TURBO BEAVER TURBO BEAVER Item code: BH162 Item code: BH162 M2 Lock nut Elevator pushrod Silicone Tube 8.1. ELEVATOR CONTROL HORN 1) Using pliers, carefully make a 90 degree bend down INSTALLATION at the mark made. Cut off the excess wire, leaving about 6mm beyond the blend.

  • Page 12: Installing The Switch, Receiver And Battery

    TURBO BEAVER Item code: BH162 Control horn Silicone Tube Epoxy M2 Lock nut glue Rudder pushrod Hinges for Rudder are glued the same way as the aileron before (see page 4). Flaslink servo arm Pushrod wire Rudder pushrod Rudder servo 10.

  • Page 13: Installing Cockpit Fuselage

    TURBO BEAVER Item code: BH162 Switch t e r y B a t Receiver 11. INSTALLING COCKPIT FUSELAGE 3x12mm 3x10mm 12. WING ATTACHMENT, WING STRUT A+B Epoxy glue. 3x12mm 4x15mm...

  • Page 14: Installing The Spinner

    TURBO BEAVER Item code: BH162 Insert the wing panel as pictures below. Locate the aluminium wing dihedral brace. 19mm Aluminium tube. 680mm *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily. If not, use Screw the wing panel in position.

  • Page 15: Pre-Flight Check

    TURBO BEAVER Item code: BH162 shifting the balance up to 10mm forward or back to Control throw Flaps: change the flying characteristics. Moving the balance Mid: 20mm down. forward may improve the smoothness and arrow- like tracking, but it may then require more speed for take off Control throw Elevators: and make it more difficult to slow down for landing.
  • Page 16 I/C FLINGT WARNINGS Always operate in open areas, away from NEVER fly near power lines,aerials or ALWAYS adjust the engine from behind factories, hospitals, schools, buildings the propeller, and do not allow any part of other dangerous areas including airports, and houses etc.
