Instruction Manual Book

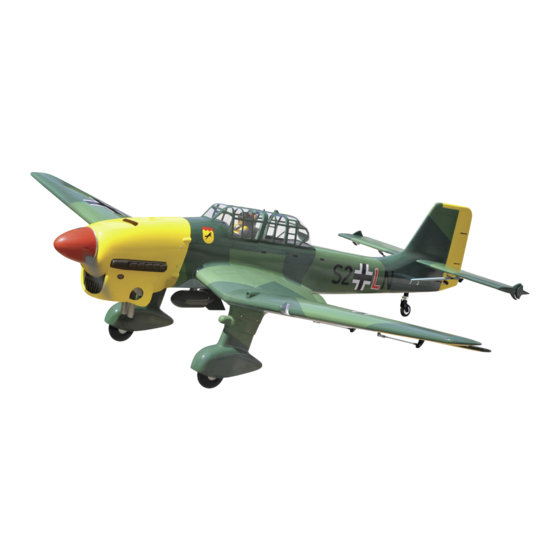

JUNKERS JU87- B2 STUKA
OLEO STRUTS LANDING GEAR.
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
95% ALMOST READY TO FLY
SPECIFICATION:
- Wingspan: 2,300mm (90.55in).
- Length: 1,837mm (72.32in.)
- Weight: 8.6 - 8.8kg (18.92 - 19.36 lbs).
- Wing area: 90.2 dm .
- Wing loading: 95.34 g/dm .
- Servo mount: (42x 21)mm.
- Wing type: Naca Airfoil.
- Spinner: 115mm.
- Gear type: Oleo struts for main gear
(included).
- Tail gear type: Oleo struts for tail gear
(included).
2
2
Item code: BH169A
Parts listing required (not included):
- Radio: 06 channels.
- Servo: 10 Standard high torque servos.
10 servos, size: (39.9 x 20.1 x 38.1)mm,
- Engine: 55 - 60cc Gas.
- Motor:
Brushless outrunner 5000 - 6500W, 180KV.
- Propeller: Suit with your engine.
Recommended receiver battery (not included):
- Motor: Admiral GP60 8925-180KV Brushless.
- Lipo cell: 12 cells 5500 - 6000mAh.
- Receiver battery: 6.0V- 7.4V 2600-3200mAh (3 Packs).
- ESC: 120A.
Made in Vietnam.
