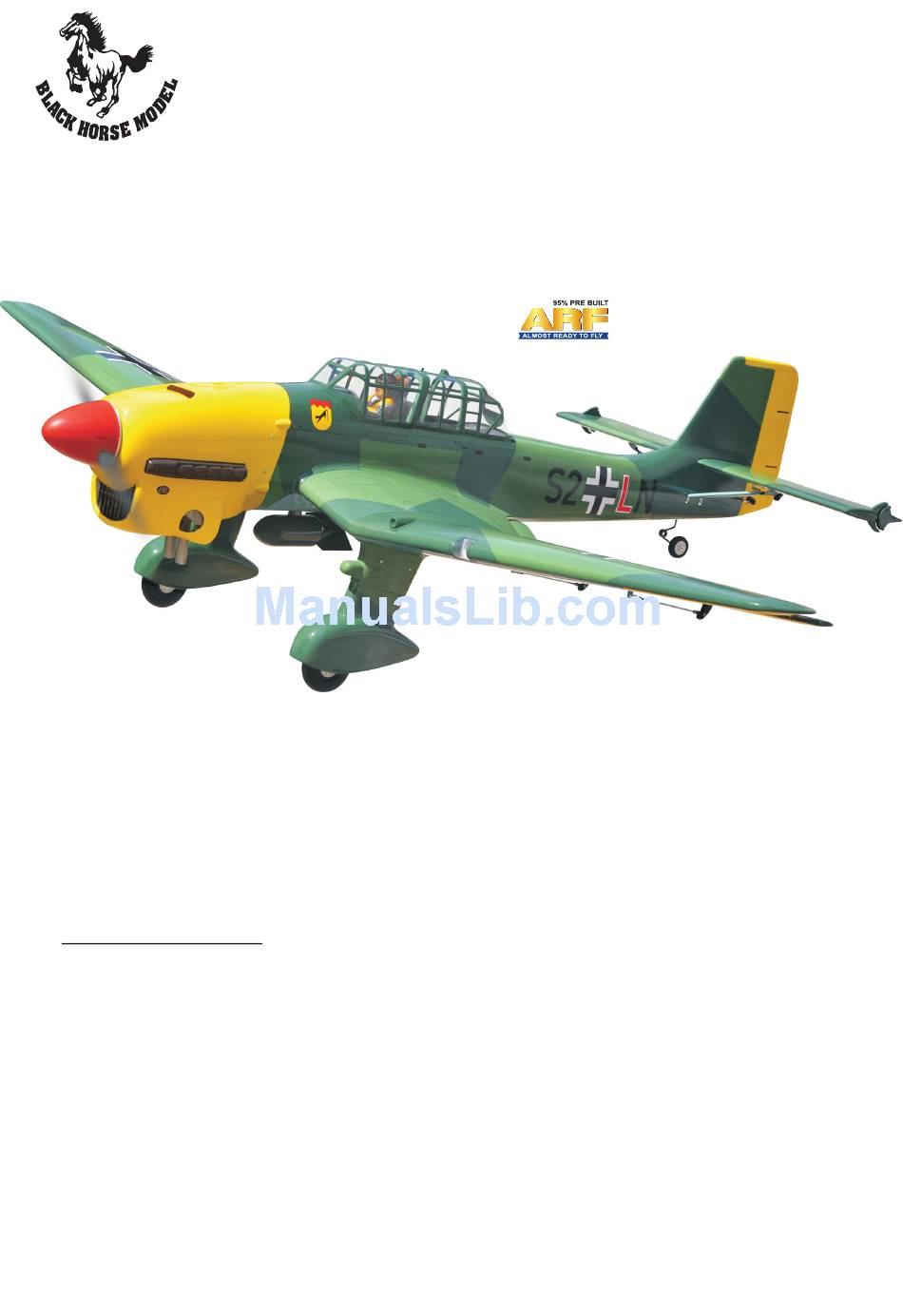

JUNKERS JU87- B2 STUKA
OLEO STRUTS LANDING GEAR.
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
95% ALMOST READY TO FLY
SPECIFICATION:
- Wingspan: 2,300mm (90.55in).
- Length: 1,837mm (72.32in.)
- Weight: 8.6 - 8.8kg (18.92 - 19.36 lbs).
- Wing area: 90.2 dm .
- Wing loading: 95.34 g/dm .
- Servo mount: (42x 21)mm; (33 x 17)mm.
- Wing type: Naca Airfoil.
- Gear type: Oleo struts for main gear
and spring wire for tail gear (included).
- Spinner: 115 mm.
Instruction Manual Book
2
2
Item code: BH169.
Parts listing required (not included):
- Radio: 06 channels.
- Servo: Standard high torque servos.
08 servos, size: (39.9 x 20.1 x 38.1)mm,
+ 02 servos, size: (32.5 x 16.8 x 32.8)mm elevator.
- Engine: 50 - 60cc Gas.
- Motor: Brushless outrunner 5000 - 6500W, 230KV.
- Propeller: Suit with your engine.
Recommended receiver battery (not included):
- Motor: RIMFIRE. 50 cc.
- Lipo cell: 12 cells 5500 - 6000mAh.
- Receiver battery: 6.0V 2400-2600mAh(2 Packs).
- ESC: 120A.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BH169 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model BH169

Summary of Contents for Black Horse Model BH169

  • Page 1 Instruction Manual Book Item code: BH169. JUNKERS JU87- B2 STUKA OLEO STRUTS LANDING GEAR. ALL BALSA - PLY WOOD CONSTRUCTION. COVERED IN A HEAT-SHRINK FILM WITH PRINTED. 95% ALMOST READY TO FLY SPECIFICATION: - Wingspan: 2,300mm (90.55in). Parts listing required (not included): - Length: 1,837mm (72.32in.)

  • Page 2: Table Of Contents

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 TABLE OF CONTENTS Warning ......2 Installing the engine .

  • Page 3: Warranty

    The the use or misuse of Black Horse Model products. By the model will only be strong and fly well if you complete your...

  • Page 4: Parts Listing (Not Included)

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 PARTS LISTING (NOT INCLUDED). Servo extension leads....pcs. 190mm ..4 pcs. 500mm ..2 pcs. 1000mm ..2 pcs. Engine: 60cc Gas. 08 servos, size: (39.9 x 19.8 x 37.8)mm Torque: 6V (6.4kg-cm), 7.4V (7.5 kg-cm).

  • Page 5: Instruction Manual

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 : Fuselage. Plastic and wood parts of the horizontal stabilizer. : Wing panel ( 2a, 2b . : Plastic fairing for landing gear. : Horizontal stabilizer (3a, 3b). : Wheel pants.

  • Page 6: Preparations

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 INSTALLING THE AILERONS AND FLAPS. Bottom view INSTALLING THE AILERONS AND FLAPS SERVOS. Place the servo into the servo tray. Center the servo within the tray and drill 1.5mm pilot holes through the block of wood for each of the four mounting screws provided with the servo.
  • Page 7 Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 For Aileron servo. For Flap servo. 2 x 10mm Screw Warning! - - - - 24 Flap Aileron Aileron and flap servos. approx.16mm 2x10mm Screw For Flap. For Flap. 1.5mm For Aileron.

  • Page 8: Installing The Control Horns And Linkages

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 INSTALLING THE CONTROL HORNS AND LINKAGES. 3x16mm - - - 6 3x16mm Horn - - - - - 6 3mm Nut - - - - - - 12 Spring - - 6...
  • Page 9 Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 3mm Nut 3x12mm Spring Secure Push rod Horn Servo arm...

  • Page 10: Installing The Main Landing Gear

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 INSTALLING THE MAIN LANDING GEAR Collar 4x20mm Cap Screw 3x10mm Screw - - - - - - - 8 - - - - 2 - - - 5mm Washer 5x45mm Cap Screw...
  • Page 11 Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 Collar 5mm Washer Slide the plastic cover through the landing gear. 5x45mm Installing the wheel. Secure 3x10mm 1.5mm...

  • Page 12: Installing The Fuselage Servos

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 INSTALLING THE FUSELAGE SERVOS 1) Install the rubber grommets and brass collets into the elevator, rudder and throttle servos. Test fit the servos into the servo tray. Trim the tray if necessary to fit your servos.

  • Page 13: Installing The Fuel Tank

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 INSTALLING THE ENGINE, FUEL TANK INSTALLING THE FUEL TANK. Using a modeling knife, cut 3 lengths of fuel line. Connect 2 lines to the 2 vent tubes and 1 line to the fuel The stopper has been pre-assembled at the pickup tube in the stopper.

  • Page 14: Installing The Engine

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 INSTALLING THE ENGINE 5x70mm Cap Screw 14x40mm Aluminum - - 4 - - - - 4 5mm Washer 5mm Spring Washer - - - - - - - - - 4...

  • Page 15: Installing The Throttle

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 direction. When the throttle stick is moved forward INSTALLING THE THROTTLE from idle to full throttle, the throttle barrel should also open and close using this motion. If not, Connector - - - - 1 reverse the direction of the servo, using the transmitter.

  • Page 16: Mounting The Cowl

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 MOUNTING THE COWL Enlarging the holes through the cowl will prevent the fiberglass from splitting when the 1) Remove the muf f ler and needle valve mounting screws are installed. assembly from engine.

  • Page 17: Installing Horizontal Stabilizer

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 INSTALLING HORIZONTAL STABILIZER Wood - - - 2 Horn - - - - - 2 Plastic 3mm Nut - - - - - - 4 - - - - - - 2...

  • Page 18: Horizontal Stabilizer Struts

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 HORIZONTAL STABILIZER STRUTS 3x12mm Cap Screw 4mm Washer - - - - - 8 - - - - - - - 4 3mm Nut 4mm Spring Washer - - - - - - 2...
  • Page 19 Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 INSTALLING HORIZONTAL STABILIZER - Attach the aluminium tube into the fuselage. Attach the stabilizer to the fuselage. Fuselage top side Fuselage bottom side Secure...

  • Page 20: Installation The Rudder

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 RUDDER INSTALLATION - - - 2 Horn - - - - - 2 3mm Nut - - - - - - 4 - - - - - - 2 Rudder 3x35mm...
  • Page 21 Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 Bottom view Open/Close Rudder cable Rudder cable Rudder Tail gear, Rudder servo Fuselage top side Rudder cable...

  • Page 22: Installing The Tail Gear

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 INSTALLING THE TAIL GEAR 3x15mm Cap Screw - - - - - 4 Colar 4mm Washer - - - - - - - 4 4mm Spring Washer - - - - - - - 4...
  • Page 23 Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 Open/Close...

  • Page 24: Installing The Switch, Receiver And Battery

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 Fuselage top side Tail gear cable INSTALLING THE SWITCH, RECEIVER AND BATTERY . 1) Plug the servo leads and the switch lead into INSTALLING THE SWITCH the receiver. You may want to plug an aileron...

  • Page 25: Secure The Wing To The Fuselage

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 SECURE THE WING TO THE FUSELAGE Locate the aluminium wing dihedral brace. Fuselage top side Attach the aluminium tube 32mm Aluminium tube. into the fuselage. 768mm *** Test fit the aluminium tube dihedral brace into each wing haft.

  • Page 26: Plastic Parts Of The Wing

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 PLASTIC PARTS OF THE WING Plastic parts of the wing Plastic parts of the wing INSTALLING COCKPIT FUSELAGE Position the canopy so the rear frame on the canopy is aligned with the rear edge of the cockpit opening.
  • Page 27 Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 Canopy glue...
  • Page 28 Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 Adhesive tape. Canopy glue...

  • Page 29: Installing The Spinner, Propeller

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 INSTALLING THE SPINNER, PROPELLER - - - 4 Secure...

  • Page 30: Balancing

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 2) If one side of the wing fall, that side is heavier BALANCING than the opposite. Add small amounts of lead weight to the bottom side of the lighter wing half's 1) It is critical that your airplane be balanced wing tip.

  • Page 31: For Your Radio Installation Basic Connection For Airplane And Adjustment Of Servos

    Instruction manual JUNKERS JU87- B2 STUKA Item code: BH169 FOR YOUR RADIO INSTALLATION BASIC CONNECTION FOR AIRPLANE AND ADJUSTMENT OF SERVOS Example of connection For more information, refer to radio system instruction manual. Follow instruction manual of Engine and Battery.
  • Page 32 I/C FLINGT WARNINGS Always operate in open areas, away from NEVER fly near power lines,aerials or ALWAYS adjust the engine from behind factories, hospitals, schools, buildings the propeller, and do not allow any part of other dangerous areas including airports, and houses etc.
  • Page 33 I/C FLINGT GUIDELINES Operate the control sticks on the ALWAYS land the model INTO When ready to fly, first extend transmitter and check that the the wind, this ensures that the the transmitter aerial. control surfaces move freely and in model lands at the slowest possible the CORRECT directions.
