Ford Data Interface with SWC
*Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
INTERFACE FEATURES
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake,
reverse, speed sense)
• Retains audio controls on the steering wheel
INTERFACE COMPONENTS

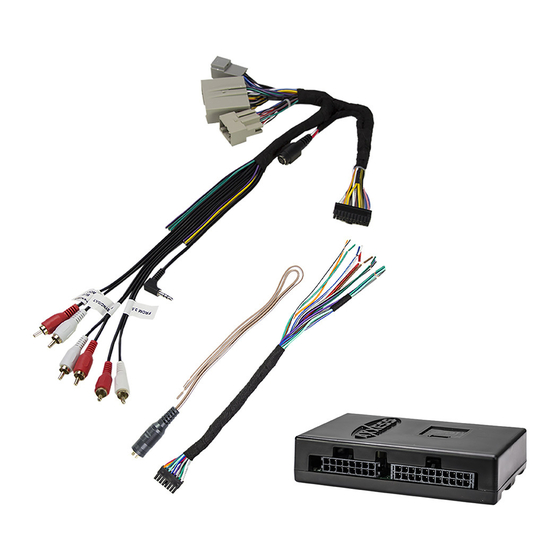

• AX-FD1-SWC interface
• AX-FD1-SWC harness
APPLICATIONS
FORD
FORD (CONT)
Econoline (w/ CD) 2009-up
Explorer Sport Trac
Edge
2007-2010
(w/ NAV)
Escape
2008-2012
F-150 *
Expedition
2007-2014
F-150 STX/FX2 base/XLT base
Explorer (w/ NAV) 2009-2010
F-150 STX/XLT base
* XL models must be equipped with a CD player
AxxessInterfaces.com
2007-up*
• Retains RSE (rear seat entertainment)
• Retains SAT (satellite radio)
• Retains SYNC
• Retains the factory AUX-IN jack
• 16-pin harness with stripped leads
• Female 3.5mm connector with stripped leads
FORD (CONT)
F-250/350/450/550 2011-2012
2009-2010
F-250/350/450/550 XLT, XL
2009-2012
(w/ CD)
2013-2016
F-650/750 (w/ CD) 2016-up
2013
Focus
2008-2011
2014
Fusion
2010-2012
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
• Can be used in both non-amplified and
amplified models (including Sony/THX)
• Retains balance and fade (excluding Sony/THX)
• Micro "B" USB updatable
FORD (CONT)
MAZDA
Mustang
2009-2014
Tribute
Taurus
2010-2012
MERCURY
LINCOLN
Mariner
MKX
2007-2010
Milan
MKZ
2007-2009
Navigator
2007-2014
AX-FD1-SWC
I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Connections to be made ................................... 2-4
Installing the AX-FD1-SWC.....................................4
Initializing the AX-FD1-SWC ..................................4
Adjusting the AX-FD1-SWC ....................................5
Extra features .........................................................5
Steering wheel control settings ....................... 5-8
- L.E.D. feedback ....................................................5
- Changing radio type ...........................................6
- Resetting the AX-FD1-SWC .................................8
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
2008-2011
caps, etc.) • Small flat-blade screwdriver
CAUTION!
All accessories, switches, climate
2008-2011
controls panels, and especially air bag indicator
2010-2011
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 7/19/17 INSTAX-FD1-SWC
